High-integrated fibre ribbon design
Aramid reinforcement element gives the cable excellent tensile strength
The outer material is corrosion-resistant, waterproof, UV-resistant, flame-retardant and environmentally friendly.
Indoor cable distribution
Interconnect between instruments, communication equipments

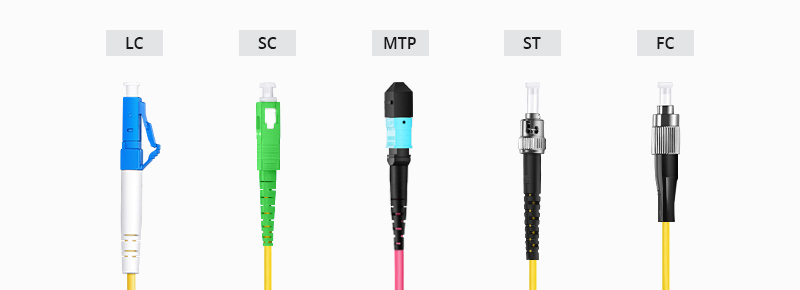

Patchcord and pigtail
Comply with Standard YD/T 1258.5, ICEA-596, GR-409, IEC 60794-2-30, etc., and PVC cable meet the requirements of UL approval OFNR and OFNP: Different LSZH jacket meet IEC 60332-1or IEC 60332-3C certification.

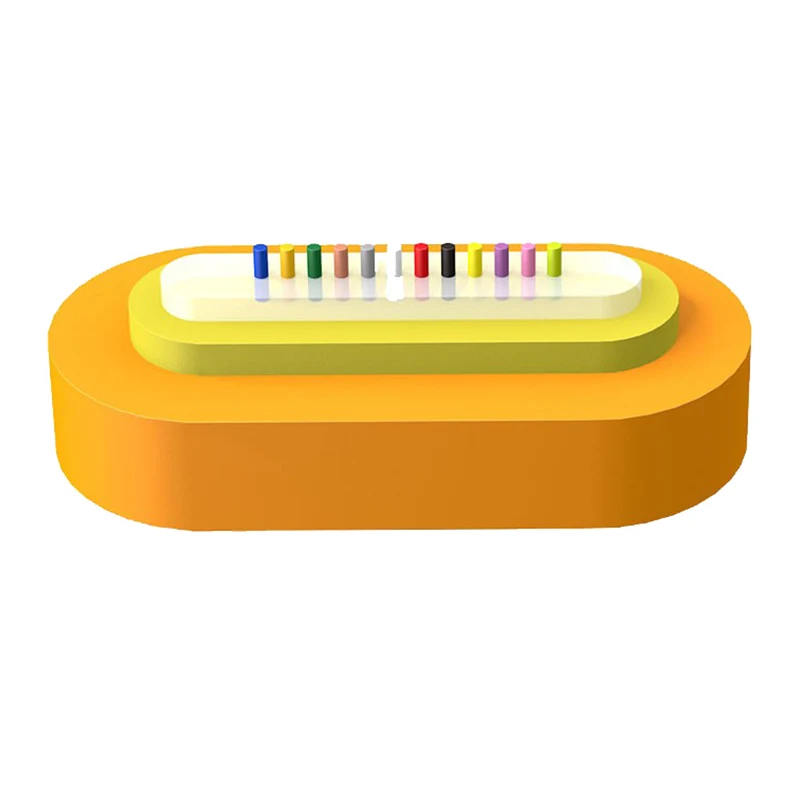

1. Fibre
2. Fibre Ribbon
3. Aramid Yarn
4. Jacket
|
Cable Model |
Fibre Count |
Cable Weight (Ref) (kg/km) |
Tensile Strength Long/Short Term |
Crush Resistance Long/Short Term (N/100mm) |
Bending Radius Dynamic/Static (mm) |
||
|
4 |
(3.7±0.3)*(2.3±0.3) |
4 Fiber Ribbon |
4.7 |
6.6 |
80/150 |
300/1000 |
25D/12.5D |
|
6 |
(4.2±0.4)*(2.5±0.2) |
6 Fiber Ribbon |
5.1 |
7.3 |
|||
|
12 |
(4.8±034)*(2.3±0.3) |
12 Fiber Ribbon |
5.9 |
8.0 |
|
Fiber Type |
Attenuation |
OFL |
Effective Mode Bandwidth |
10 Gbit/s Ethernet Link Length |
Minimum Bend Radius |
|||
|
Condition |
1310/1550nm |
850/1300nm |
850/1300nm |
850nm |
850nm |
/ |
||
|
Typical Value |
Maximum Value |
Typical Value |
Maximum Value |
|||||
|
Unit |
dB/km |
dB/km |
dB/km |
dB/km |
MHZ.km |
MHZ.km |
m |
mm |
|
G652D |
0.36/0.22 |
0.5/0.4 |
--- |
--- |
--- |
--- |
--- |
16 |
|
G657A1 |
0.36/0.22 |
0.5/0.4 |
--- |
--- |
--- |
--- |
--- |
10 |
|
G657A2 |
0.36/0.22 |
0.5/0.4 |
--- |
--- |
--- |
--- |
--- |
7.5 |
|
50/125 |
--- |
--- |
3.0/1.0 |
3.5/1.5 |
≥500/500 |
--- |
--- |
30 |
|
62.5/125 |
--- |
--- |
3.0/1.0 |
3.5/1.5 |
≥200/500 |
--- |
--- |
30 |
|
OM3 |
--- |
--- |
3.0/1.0 |
3.5/1.5 |
≥1500/500 |
≥2000 |
≤300 |
30 |
|
OM4 |
--- |
--- |
3.0/1.0 |
3.5/1.5 |
≥3500/500 |
≥4700 |
≤550 |
30 |
Transportation/ Storage/Operating Temperature: -20℃-+60℃, Installation Temperature: -5℃-+50℃
