Kevlar-reinforced Fiber (250 µm fiber)

Our high quality Kevlar-reinforced Fiber (250 µm fiber) are all made in China. Orientalfiber is a professional the Kevlar-reinforced Fiber (250 µm fiber) manufacturer and supplier in China. You can buy them from our factory. For more information, contact us now.

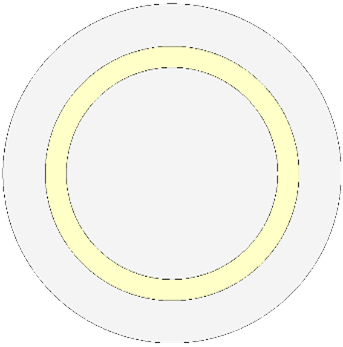

Structure parameter

Item		Specification
Fiber Count		1 core
Coated fiber	Dimension	250 µm
	Color	Natural
Strength member	Material	Aramid yarn
	Number	1×100D	2×100D	3×100D	2×200D	3×200D
Tight cladding	Diameter	0.35±0.02 mm	0.38±0.02 mm	0.40±0.02 mm	0.43±0.02 mm	0.50±0.02 mm
	Material	Resin	Resin	Resin	Resin	PVC
	Color	Natural

Mechanical and Environmental Characteristics

Item		Unit	Specification
Fiber diameter		mm	0.35	0.38	0.40	0.43	0.50
Strength member		-	1×100D	2×100D	3×100D	2×200D	3×200D
Tension		N	70	100	120	120	150
Crush		N/100mm	120
Min. bend radius	Static	mm	10D
	Dynamic	mm	15D
Operating temperature		℃	-40～+75
