● Fiber patch cords of various structures
● High-speed optical paths for fiber-to-the-home (FTTH) networks
● Cables with minimal bending requirements
● Small optical components

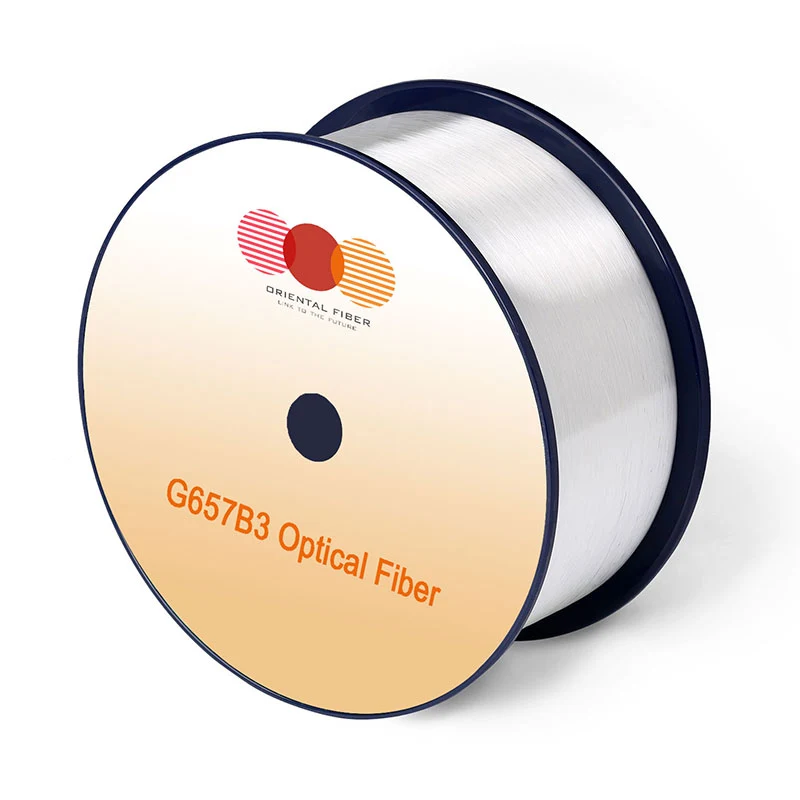

Optical performance is better than that recommended by ITU-T G.657.B3 and IEC 60793-2-50 B6.b3, with a bending radius as low as 5mm, which can meet the complex installation conditions in MDU and FTTH, such as corners, binding, high load tension, etc.
● The minimum bending radius can reach 5mm, which is fully compatible with all G.652.D optical fibers
● Low attenuation, meeting the operation requirements of the O-E-S-C-L band
● Low bending loss, suitable for demanding optical cable designs including ribbon cables
● Accurate geometric parameters and large MFD ensure low splicing loss and high splicing efficiency
● High nd value, meeting long service life at the minimum bending radius
|
Characteristics |
Conditions |
Specified values |
Units |
|
|
Optical Characteristics |
||||
|
Attenuation |
1310nm |
≤0.35 |
[dB/km] |
|
|
1383nm（after H2-aging） |
≤0.35 |
[dB/km] |
||
|
1550nm |
≤0.21 |
[dB/km] |
||
|
1625nm |
≤0.23 |
[dB/km] |
||
|
Attenuation vs. Wavelength Max. α difference |
1285-1330nm, in reference to 1310nm |
≤0.03 |
[dB/km] |
|
|
1525-1575nm, in reference to 1550nm |
≤0.02 |
[dB/km] |
||
|
Zero Dispersion Wavelength(λ0) |
-- |
1300-1324 |
[nm] |
|
|
Zero Dispersion Slope(S0) |
-- |
≤0.092 |
[ps/(nm2·km)] |
|
|
PMD |
Maximum Individual Fibre |
-- |
≤0.1 |
[ps/√km] |
|
Link Design Value（M=20，Q=0.01%) |
-- |
≤0.06 |
[ps/√km] |
|
|
Typical Value |
-- |
0.04 |
[ps/√km] |
|
|
Cable CutoffWavelength (λCC) |
-- |
≤1260 |
[nm] |
|
|
Mode Field Diameter（MFD） |
1310nm |
8.2-9.0 |
[μm] |
|
|
1550nm |
9.1-10.1 |
[μm] |
||
|
Effective Group Index of Refraction（Neff ） |
1310nm |
1.468 |
-- |
|
|
1550nm |
1.469 |
-- |
||
|
Point Discontinuities |
1310nm |
≤0.05 |
[dB] |
|
|
1550nm |
≤0.05 |
[dB] |
||
|
Geometrical Characteristics |
||||
|
Cladding Diameter |
-- |
125.0±0.7 |
[μm] |
|
|
Cladding Non-Circularity |
-- |
≤0.7 |
[%] |
|
|
Coating Diameter |
-- |
235-245 |
[μm] |
|
|
Coating-Cladding Concentricity Error |
-- |
≤12.0 |
[μm] |
|
|
Coating Non-Circularity |
-- |
≤6.0 |
[%] |
|
|
Core-Cladding Concentricity Error |
-- |
≤0.5 |
[μm] |
|
|
Curl(radius) |
-- |
≥4 |
[m] |
|
|
Delivery Length |
-- |
Up to 25.2 |
[km/reel] |
|
|
Environmental Characteristics |
1310nm, 1550nm & 1625nm |
|||
|
Temperature Dependence Induced Attenuation |
-60℃to +85℃ |
≤0.05 |
[dB/km] |
|
|
Temperature-Humidity Cycling Induced Attenuation |
-10°C to +85°C, 98% RH |
≤0.05 |
[dB/km] |
|
|
Watersoak Dependence Induced Attenuation |
23°C，for 30 days |
≤0.05 |
[dB/km] |
|
|
Damp Heat Dependence Induced Attenuation |
85°C and 85% RH，for 30 days |
≤0.05 |
[dB/km] |
|
|
Dry Heat Aging |
85℃，for 30 days |
≤0.05 |
[dB/km] |
|
|
Mechanical Specification |
||||
|
Proof Test |
-- |
≥9.0 |
[N] |
|
|
-- |
≥1.0 |
[%] |
||
|
-- |
≥100 |
[kpsi] |
||
|
Macro-bend Induced Loss |
1 Turn Around a Mandrel of 10 mm Radius |
1550nm |
≤0.03 |
[dB] |
|
1 Turn Around a Mandrel of 10 mm Radius |
1625nm |
≤0.1 |
[dB] |
|
|
1 Turn Around a Mandrel of 7.5 mm Radius |
1550nm |
≤0.08 |
[dB] |
|
|
1 Turn Around a Mandrel of 7.5 mm Radius |
1625nm |
≤0.25 |
[dB] |
|
|
1 Turns Around a Mandrel of 5 mm Radius |
1550nm |
≤0.15 |
[dB] |
|
|
1 Turns Around a Mandrel of 5 mm Radius |
1625nm |
≤0.45 |
[dB] |
|
|
Coating Strip Force |
typical average force |
1.5 |
[N] |
|
|
peak force |
1.3-8.9 |
[N] |
||
|
Dynamic Fatigue Parameter(nd) |
-- |
≥20 |
-- |
|
