The foldable UAVs feature an ingenious folding design that greatly enhances portability and reduces transport volume. The airframes use high-standard components and are offered in three sizes—7-inch, 8-inch and 10-inch—to accommodate different payloads.

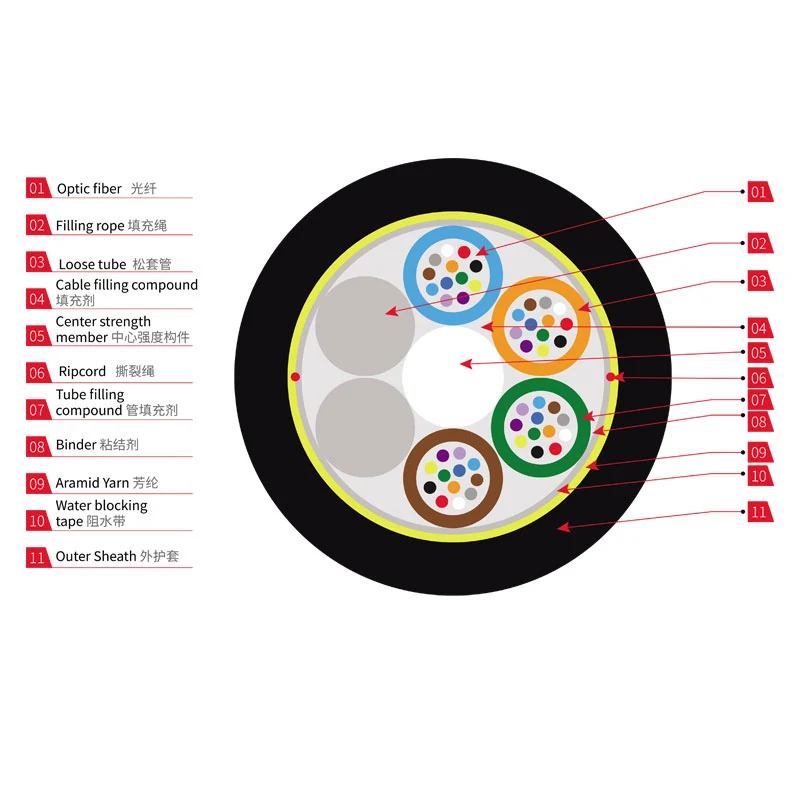

All dielectric self-supporting ADSS aerial fiber optic cable adopts loose tube layer stranding structure, and 250μm optical fiber is sheathed in loose tube made of high modulus material, and the loose tube is filled with waterproof compound. The loose tube (and filling rope) are twisted around the non-metallic center reinforcement core (FRP) to form a compact cable core, and the gap of the cable core is filled with water-blocking grease. The cable core is extruded with a polyethylene (PE) inner sheath, then covered with aramid for reinforcement, and finally extruded with a polyethylene (PE) outer sheath or an electric tracking (AT) outer sheath.

The structure of uni-tube non-metallic non-armored fiber optic cable GYFXY is to put 250μm optical fiber into a loose tube made of high modulus material, and the loose tube is filled with waterproof compound. Water-blocking material is added to the loose tube to ensure the water-blocking performance of the optical cable. Two parallel glass fiber reinforced plastics (FRP) are placed on both sides and then extruded into a polyethylene sheath to form a cable.

Orientalfiber Conventional SC/UPC-SC/UPC 3.0mm Patch Cords from Orientalfiber are engineered for high-performance fiber optic networks, offering reliable connectivity for data centers, enterprise networks, and FTTH applications. As a trusted Manufacturer and Supplier, Orientalfiber ensures quality-tested patch cords that meet the requirements of backbone, horizontal, and riser network deployments.
