Stranded Loose Tube Armored Fiber Optic Cable

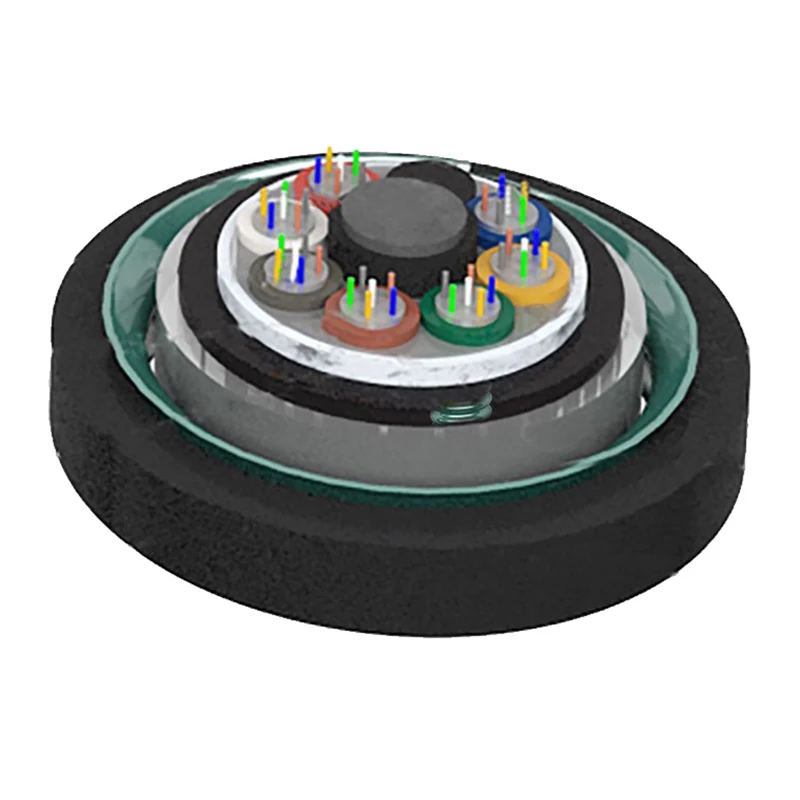

The structure of stranded loose tube armored fiber optic cable is to put 250μm optical fiber into a loose tube made of high modulus material, and the loose tube is filled with waterproof compound. The center of the cable core is a metal reinforcement core. For optical cables with certain cores, a layer of polyethylene (PE) needs to be extruded outside the metal reinforcement core. The loose tube (and filling rope) are twisted around the central reinforcement core to form a compact and round cable core, and the gaps in the cable core are filled with water-blocking fillers. A layer of polyethylene inner sheath is extruded outside the cable core, and a double-sided plastic-coated steel tape (PSP) is longitudinally wrapped and then extruded into a polyethylene sheath to form a cable.

Send Inquiry

Product Description

Characteristics

Good mechanical and temperature performance

The loose tube material itself has good hydrolysis resistance and high strength

Special tube filling compound ensure acritical protection of fibre

Crush resistance and flexibility

The following measures are taken to ensure the cable watertight:

-Steel wire used as the central strength member

-Loose tube filling compound

-100% cable core filling

-APL moisture barrier

-PSP enhancing moisture-proof

-Water-blocking material

Standards

GYTA53 cable complies with Standard YD/T 901 as well as IEC 60794-1.

Structure Drawing

1.Fibre

2.Tube Filling Compound

3.Loose Tube

4.Cable Filling Compound

5.APL

6.PE inner Sheath

7.Water-blocking Material

8.PSP

9.Central Strength Member

10.PE Outer Sheath

Stranded Loose Tube Armored Fiber Optic Cable

Technical Parameters

Cable Type (Increased by 2 fibres)	Fibre Count	Tubes	Fillers	Cable Weight (Ref) (kg/km)	Tensile Strength Long/Short Term (N)	Crush Resistance Long/Short Term (N/100mm)	Bending Radius Static/Dynamic (mm)
GYTA53-2~6Xn	2~6	1	5	177	1000/3000	1000/3000	12.5D/25D
GYTA53-8~12Xn	8~12	2	4	177
GYTA53-14~18Xn	14~18	3	3	177
GYTA53-20~24Xn	20~24	4	2	177
GYTA53-26~30Xn	26~30	5	1	177
GYTA53-32~36Xn	32~36	6	0	177
GYTA53-38~48Xn	38~48	4	1	194
GYTA53-50~60Xn	50~60	5	0	194
GYTA53-62~72Xn	62~72	6	0	204
GYTA53-74~84Xn	74~84	7	1	239
GYTA53-86~96Xn	86~96	8	0	239
GYTA53-98~108Xn	98~108	9	1	275
GYTA53-110~120Xn	110~120	10	0	275
GYTA53-122~132Xn	122~132	11	1	312
GYTA53-134~144Xn	134~144	12	0	312
GYTA53-146~216Xn	146~216	13~18	5~0	312

Storage/Operating Temperature: -40℃-+70℃

Optical Characteristics

Fibre Type	Attenuation （+20℃）				Bandwidth		Numerical Aperture	Cable Cut-off Wavelength λcc
Fibre Type	@850nm	@1300nm	@1310nm	@1550nm	@850nm	@1300nm	Numerical Aperture	Cable Cut-off Wavelength λcc
G.652	---	---	≤0.36dB/km	≤0.22dB/km	---	---	---	≤1260nm
G.655	---	---	≤0.40dB/km	≤0.23dB/km	---	---	---	≤1450nm
50/125µm	≤3.0dB/km	≤1.0dB/km	---	---	≥500MHz·km	≥500MHz·km	0.200±0.015 NA	---
62.5/125µm	≤3.3dB/km	≤1.0dB/km	---	---	≥200MHz·km	≥500MHz·km	0.275±0.015 NA	---

Note:

a. Suffix Xn denotes fibre type

b. The colour arrangements of fibre and tube are specified in the colour identification table

c. The stranded loose tube armored fiber optic cable shouldn't store in outdoor environment more than 6 months in order to keep the cable reel good state

Application: Duct/Aerial/Direct Buried
