Uni-tube Light-armored Fiber Optic Cable

The Uni-tube Light-armored Fiber Optic Cable features a precision-engineered structure optimized for practical application. 250μm optical fibers are placed inside a loose tube manufactured from high-modulus material, with the tube fully filled with specialized waterproof compound.

A layer of double-sided plastic-coated steel belt (PSP) is longitudinally wrapped around the loose tube, with water-blocking material installed between the steel belt and the loose tube to enhance compactness and waterproof performance. Two parallel steel wires are positioned on both sides for tensile strength, and an extruded polyethylene (PE) sheath forms the final cable structure.

Key Product Characteristics

This section outlines the functional advantages of the Uni-tube Light-armored Fiber Optic Cable that directly benefit procurement and engineering projects:

• Stable mechanical and temperature performance, adapting to outdoor climate changes
• High-strength hydrolysis-resistant loose tube for extended service life
• Specialized tube filling compound delivers targeted fiber protection
• Excellent crush resistance and operational flexibility for on-site installation
• PSP layer enhances moisture-proof and physical protection performance
• Dual parallel steel wires ensure reliable tensile strength during laying and use
• Small diameter and lightweight design simplify installation and reduce labor costs
• Support for longer segment lengths to reduce connection points and signal loss

Compliance Standards

The Uni-tube Light-armored Fiber Optic Cable (GYXS/GYXTW type) fully complies with Standard YD/T 769.9, meeting domestic and international engineering application specifications and facilitating project acceptance and quality certification.

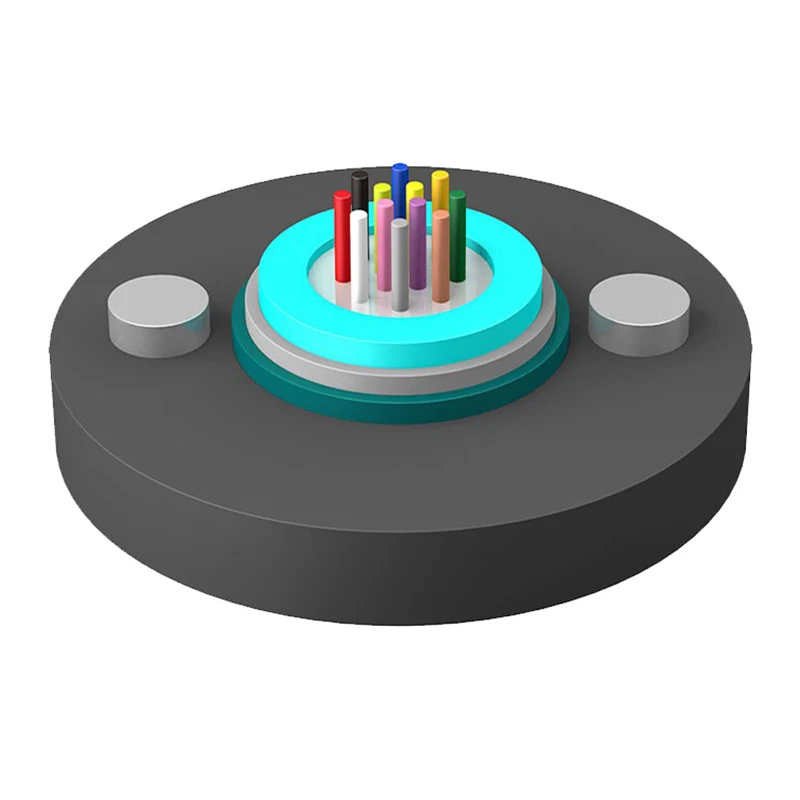

Structural Composition Diagram

1. Fibre
2. Tube Bundle
3. Tube Filling Compound
4. Loose Tube
5. Steel Wire
6. Water-blocking Material
7. PSP (Double-sided Plastic-coated Steel Belt)
8. PE Sheath (Polyethylene Sheath)

Procurement Value & Advantages

For Bulk Buyers & Engineering Clients

Choosing the Orientalfiber Uni-tube Light-armored Fiber Optic Cable brings tangible value to procurement decisions and project implementation:

1. Stable Supply Capacity: Four self-operated factories guarantee on-time delivery for large-volume orders
2. Cost-Effective Performance: Balanced protection and lightweight structure reduce material and installation costs
3. Certified Quality: ISO-certified production systems minimize failure risks and post-maintenance expenses
4. Wide Compatibility: Complies with industry standards, suitable for multiple infrastructure industries

FAQ – Frequently Asked Questions

Q1: What are the primary application scenarios for the Uni-tube Light-armored Fiber Optic Cable?

A: The product is designed for outdoor communication applications, including telecommunications networks, radio and television systems, power communication, rail transit, highway signal transmission, and LAN data transmission projects.

Q2: Does the product support customized length production?

A: Yes, the Uni-tube Light-armored Fiber Optic Cable can be produced in longer segment lengths to meet specific engineering laying requirements.

Q3: What quality certifications does the product and manufacturer hold?

A: Jiangsu Xuben Photoelectric Technology Co., Ltd. holds ISO9001 and ISO45001 certifications, and the cable complies with YD/T 769.9 industry standards.

Q4: What are the installation benefits of this cable?

A: The small diameter, light weight, and flexible structure make on-site installation more efficient, reducing construction time and labor costs for engineering projects.

Technical Parameters

Storage/Operating Temperature: -40℃-+70℃

Optical Characteristics

Note:

a. Suffix Xn denotes fibre type

b. The colour arrangements of fibre and tube are specified in the colour identification table

c. The uni-tube light-armored fiber optic cable shouldn't store in outdoor environment more than 6 months in order to keep the cable reel good state

Application: Duct/Aerial
