Stranded Loose Tube Non-armored Fiber Optic Cable Cable

The structure of stranded loose tube non-armored fiber optic cable cable is to put 250μm optical fiber into a loose tube made of high modulus material, and the loose tube is filled with waterproof compound. The center of the cable core is a metal reinforcement core. For optical cables with certain cores, a layer of polyethylene (PE) needs to be extruded outside the metal reinforcement core. The loose tube (and filling rope) are twisted around the central reinforcement core to form a compact and round cable core, and the gaps in the cable core are filled with water-blocking fillers. The plastic-coated aluminum belt or steel belt is longitudinally wrapped and extruded into a polyethylene sheath to form a cable.

Send Inquiry

Product Description

Characteristics

Good mechanical and temperature performance

High strength loose tube that is hydrolysis resistant

Special tube filling compound ensure a critical protection of fibre

Specially designed compact structure is good at preventing loose tubes from shrinking

PE sheath protects cable from ultraviolet radiations

The following measures are taken to ensure the cable watertight:

-Steel wire used as the central strength member

-Loose tube filling compound

-100% cable core filling

-APL or PSP moisture barrier

Standards

GYTA/s cable complies with Standard YD/T 901 as well as IEC 60794-1.

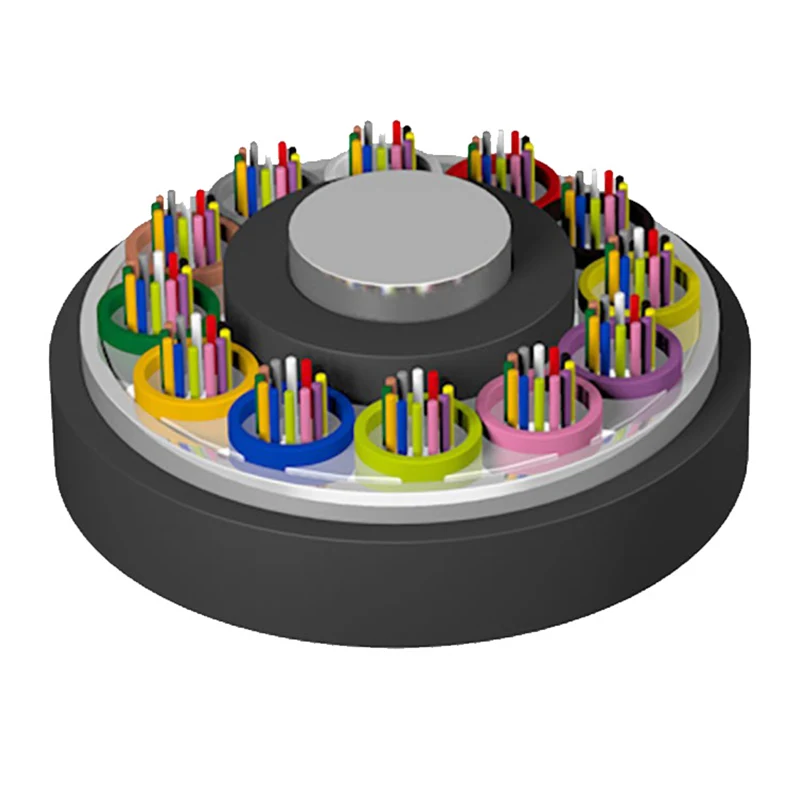

Structure Drawing

1. Fibre

2. Tube Filling Compound

3. Loose Tube

4. Central Strength Member

5. Cable Filling Compound

6. APL psp

7. PE Sheath

Stranded Loose Tube Non-armored Fiber Optic Cable Cable

Technical Parameters

Cable Type (Increased by 2 fibres)	Fibre Count	Tubes	Fillers	Cable Weight (Ref) (kg/km)	Tensile Strength Long/Short Term (N)	Crush Resistance Long/Short Term (N/100mm)	Bending Radius Static/Dynamic (mm)
GYTA/S-2~6Xn	2~6	1	4	76	600/1500	300/1000	10D/20D
GYTA/S -8~12Xn	8~12	2	3	76
GYTA/S -14~18Xn	14~18	3	2	76
GYTA/S -20~24Xn	20~24	4	1	76
GYTA/S -26~30Xn	26~30	5	0	76
GYTA/S -32~36Xn	32~36	6	0	85
GYTA/S -38~48Xn	38~48	4	1	90
GYTA/S -50~60Xn	50~60	5	0	90
GYTA/S -62~72Xn	62~72	6	0	113
GYTA/S -74~84Xn	74~84	7	1	136
GYTA/S -86~96Xn	86~96	8	0	136
GYTA/S -98~108Xn	98~108	9	1	163
GYTA/S -110~120Xn	110~120	10	0	163
GYTA/S -122~132Xn	122~132	11	1	190
GYTA/S -134~144Xn	134~144	12	0	190
GYTA/S -146~216Xn	146~216	13~18	5~0	190
GYTA/S -288Xn	288	24	0	239

Storage/Operating Temperature: -40℃-+70℃

Optical Characteristics

Fibre Type	Attenuation （+20℃）				Bandwidth		Numerical Aperture	Cable Cut-off Wavelength λcc
Fibre Type	@850nm	@1300nm	@1310nm	@1550nm	@850nm	@1300nm	Numerical Aperture	Cable Cut-off Wavelength λcc
G.652	---	---	≤0.36dB/km	≤0.22dB/km	---	---	---	≤1260nm
G.655	---	---	≤0.40dB/km	≤0.23dB/km	---	---	---	≤1450nm
50/125µm	≤3.3dB/km	≤1.2dB/km	---	---	≥500MHz·km	≥500MHz·km	0.200±0.015 NA	---
62.5/125µm	≤3.5dB/km	≤1.2dB/km	---	---	≥200MHz·km	≥500MHz·km	0.275±0.015 NA	---

Note:

a. Suffix Xn denotes fibre type

b. The colour arrangements of fibre and tube are specified in the colour identification table

c. The stranded loose tube non-armored fiber optic cable cable shouldn't store in outdoor environment more than 6 months in order to keep the cable reel good state

Application: Duct/Aerial
