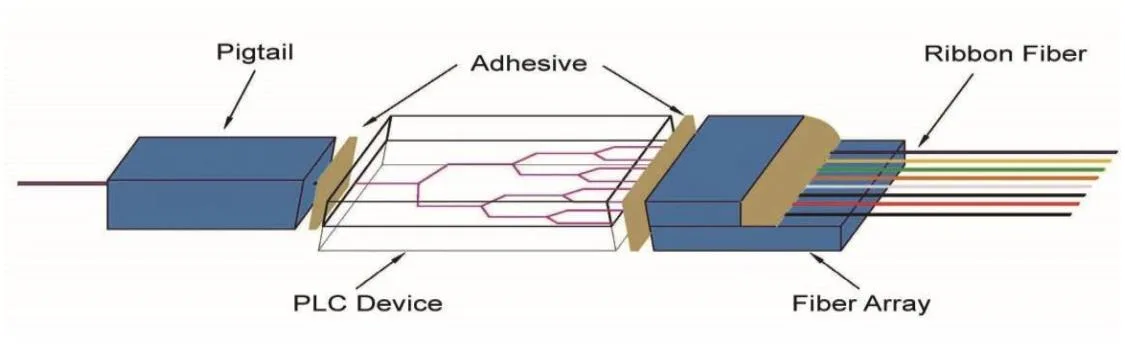

PLC Splitter is a light wave power divider which bases on quartz foundation plate. It owns the features of compact size, broad operating wavelength, high reliability and good uniform power splitting. Especially, it’s suitable in Passive Optical Network to connect the central and terminal end equipment, so that can realize the light signal splitting. Reliable not only can supply the series products of 1×N, but also can supply PLC Splitter suitable for various occasions on customer requests.
● Low insertion loss and Low PDL
● Uniform power splitting
● High reliability
● Excellent environmental stability
● Compact size and various packages
● Rohs compliant
● Telecommunication sector
● PON System
● FTTH
● CATV Video Transmission
1xN PLC Splitter
| Item | Unit | Parameter | |||
| Operation Wavelength | nm | 1260~1650 | |||
| Test Wavelength | nm | 1310/1550 | |||
| Channel Number | -- | 1x2 | 1x8 | 1x16 | |
| Insertion Loss | Max | dB | ≤3.8 | ≤10.4 | ≤13.5 |
| Uniformity | Max | dB | ≤0.6 | ≤1.0 | ≤1.2 |
| Polarization Dependent Loss | Max | dB | ≤0.25 | ≤0.3 | ≤0.30 |
| Return Loss | Min | dB | ≥50 | ||
| Directivity | Min | dB | ≥55 | ||
| Fiber Type | ITU-T G657 A1 Fiber | ||||
| Operation Temperature | ℃ | -40 ~ +85 | |||
| Storage Temperature | ℃ | -40 ~ +85 | |||
Notes: 1. All insertion loss values not include the loss of the connector, include connector loss +0.3dB.

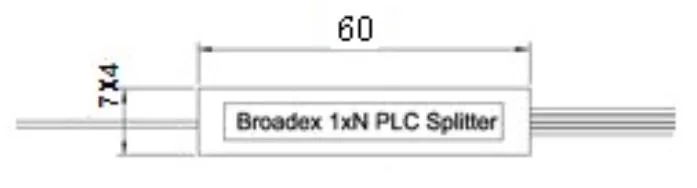

1*2 & 1*8 PLC Splitter（Mini module packaging metal box）

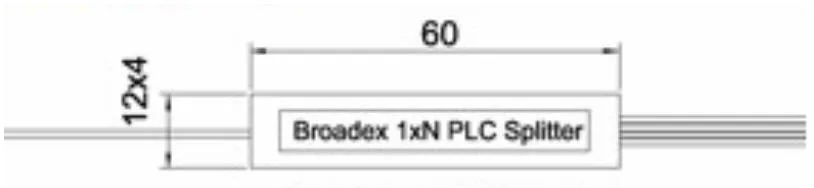

1* 16 PLC Splitter（Mini module packaging metal box）
