1*8 PLC Splitter

Orientalfiber is a manufacturer and supplier specializing in 1*8 PLC Splitter, with our own factory. Contact us for competitive pricing and professional quotes.

Send Inquiry

Product Description

Our high quality 1*8 PLC Splitter are all made in China. Orientalfiber is a professional the 1*8 PLC Splitter manufacturer and supplier in China. You can buy them from our factory. For more information, contact us now.

1×8 PLC Splitter Steel tube package 60x7x4mm, with 900μm loose tube 1.0 and 0.75+0.05/-0m, SC/APC connector.

Performance Specifications:

Parameters	Symbol	Specifications	Unit
Channel Number	Ch	1×8
Operation Wavelength		1260 ~ 1650	nm
Test Wavelength		1310/1550	nm
Spectral ratio		12.5%	%
Insertion Loss1	IL	≤10.5	dB
Uniformity	Uni	≤1.0	dB
Polarization Dependent Loss	PDL	≤0.30	dB
Return Loss	RL	≥55	dB
Directivity2	Dir	≥55	dB
Input Optic Power	P	100	mW
Fiber Type		G657 A2 Fiber
Pigtail Type		COM Port：White 900μm loose tube
Pigtail Type		1~8ch Port：White 900μm loose tube
Input Length		1.0 +0.05/-0	m
Output Length		0.75 +0.05/-0	m
Connector		All Port：SC/APC（Cone）
Connector 3D First-Pass Yield		≥85%
Cable Mark		In 、1 、2… …7 、8
Package Dimension (L) × (W) × (H)	PKG	60x7x4	mm
Operation Temperature	Top	-40 ~ +85	℃
Storage Temperature	Tst	-40 ~ +85	℃

*Notes:

1. All insertion loss values include the loss of the connector.

2. Connector end face cleaning meets IEC 61300-3-35.

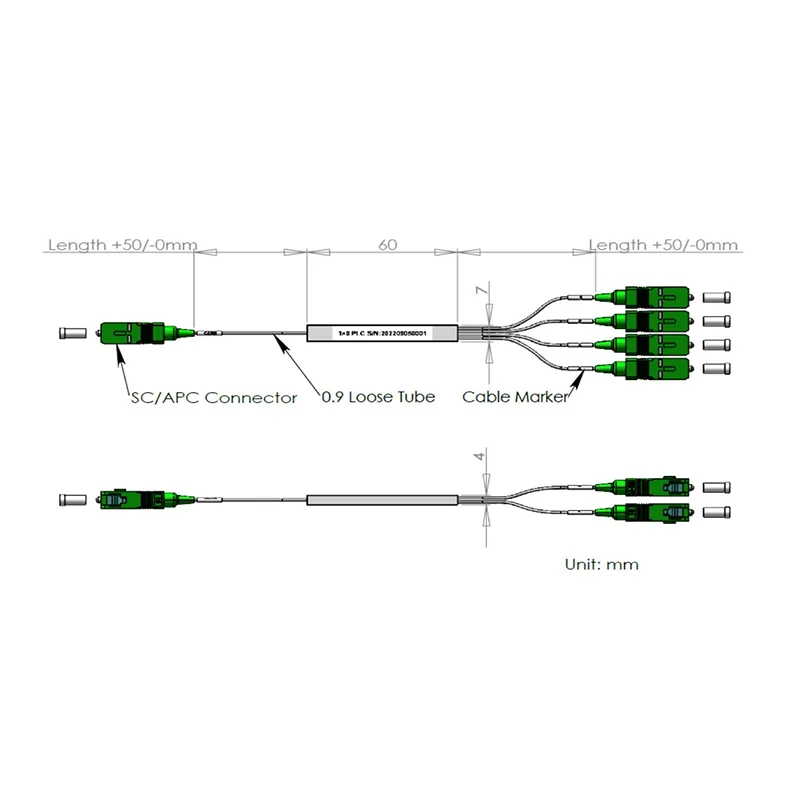

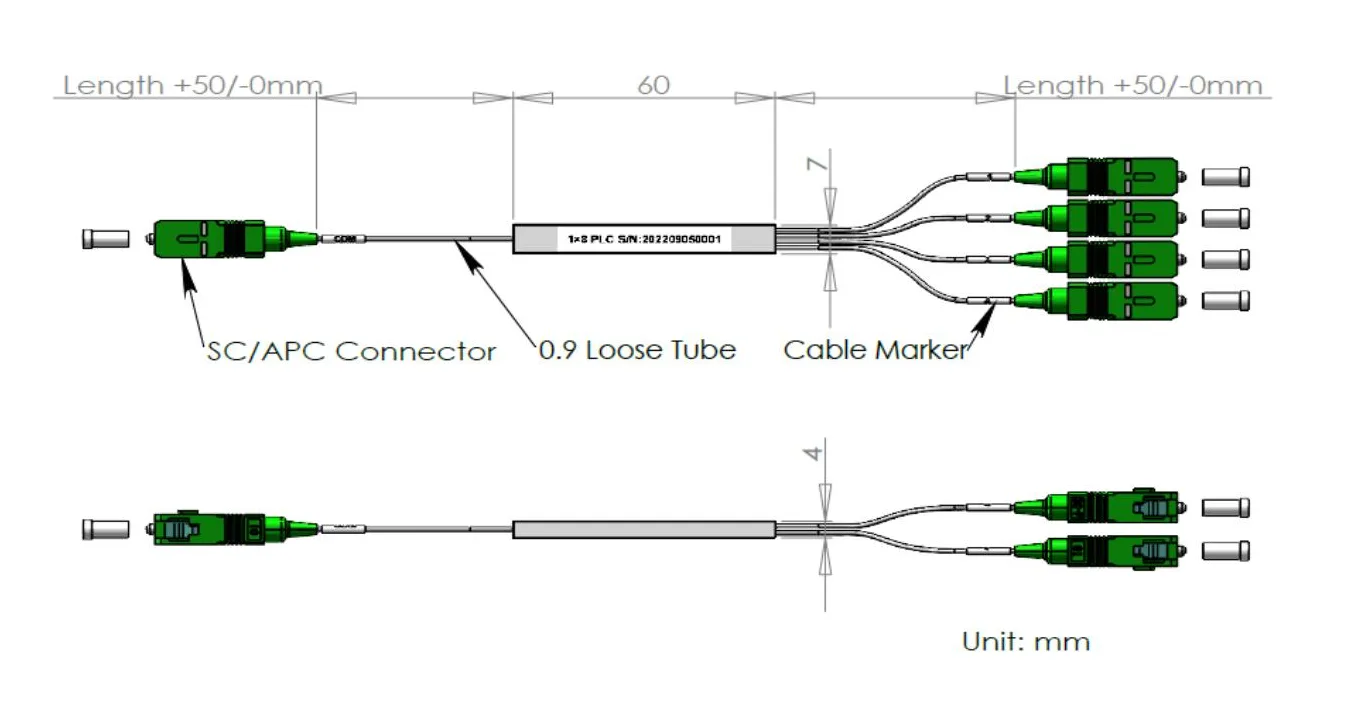

Sketch Map:
