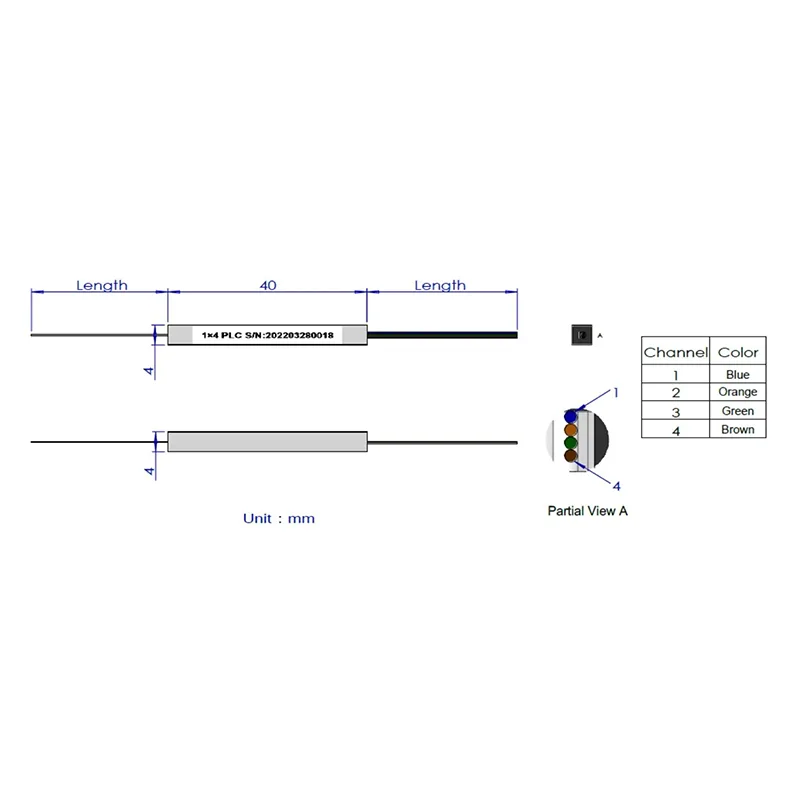

1x4/1×8 PLC Splitter Steel tube package 40x4x4mm, With 250μm Bare Fiber 2.5 +0.1/-0m, None Connector.
| Parameters | Symbol | Specifications | Unit | |
| Channel Number | Ch | 1×4 | 1×8 | |
| Operation Wavelength | 1260 ~ 1650 | nm | ||
| Test Wavelength | 1310/1550 | nm | ||
| Spectral ratio | 25% | 12.5% | % | |
| Insertion Loss1 | IL | ≤7.0 | ≤10.5 | dB |
| Uniformity | Uni | ≤0.60 | ≤0.80 | dB |
| Polarization Dependent Loss | PDL | ≤0.20 | ≤0.20 | dB |
| Return Loss | RL | ≥55 | dB | |
| Directivity2 | Dir | ≥55 | dB | |
| Input Optic Power | P | 100 | mW | |
| Fiber Type | G657 A2 Fiber | |||
| Pigtail Type | Inport: 250μm Bare Fiber | |||
|
1~4ch Outport: 1*4 Channel 250um Fiber Ribbon 1~8ch Outport: 2*4 Channel 250um Fiber Ribbon |
||||
| Input Length | 2.5 +0.1/-0 | m | ||
| Output Length | 2.5 +0.1/-0 | m | ||
| Connector | All Port: none Connector | |||
| Fiber Color | Inport: Natural Color | |||
| 1~4ch Outport: Blue 、Orange 、Green 、Brown、 | ||||
|
1~8ch Outport: Blue 、Orange 、Green 、Brown、 Grey 、 White 、 Red 、 Black |
||||
| Package Dimension | PKG | 40(L) ×4 (W) ×4 (H) | mm | |
| Operation Temperature | Top | -40 ~ +85 | ℃ | |
| Storage Temperature | Tst | -40 ~ +85 | ℃ | |
*Notes: 1. All insertion loss values not include the loss of the connector，include connector loss +0.3dB.

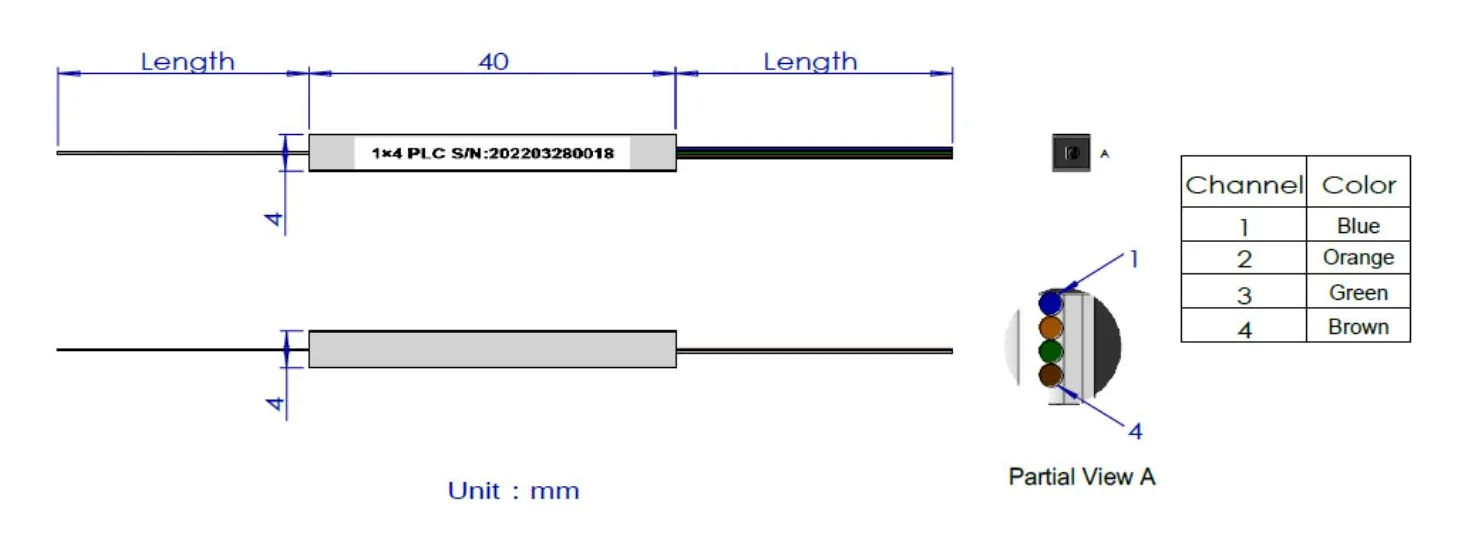

1x4 PLC Splitter

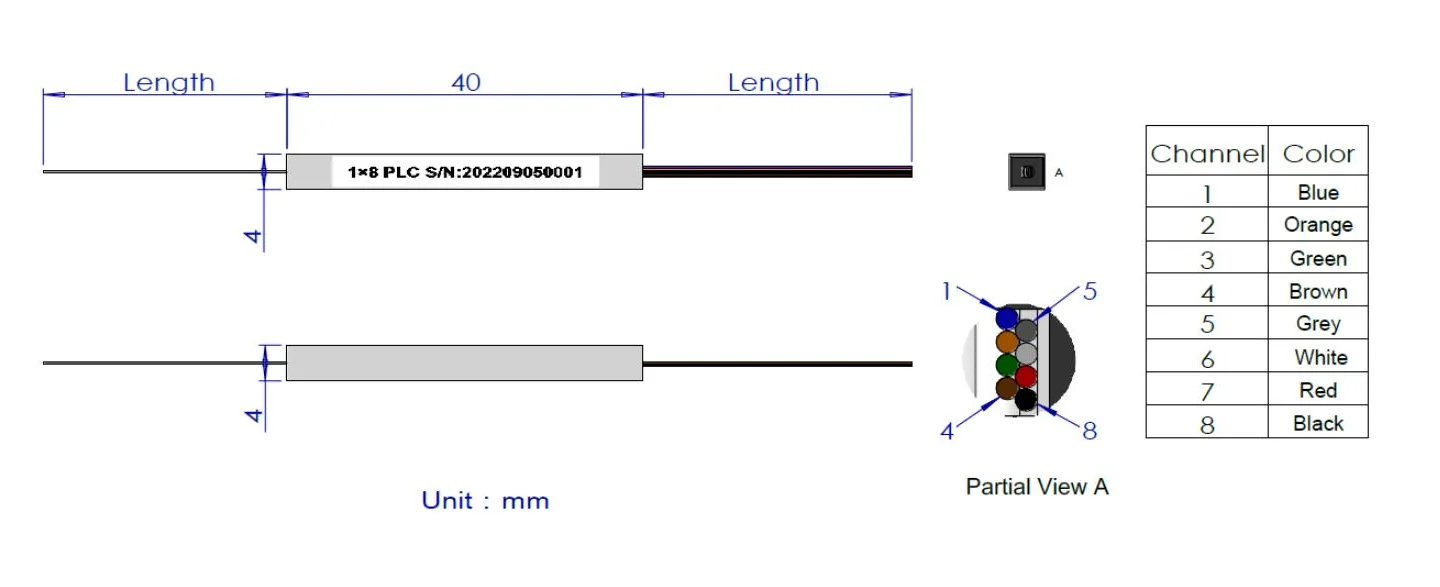

1x8 PLC Splitter
| PLC | PLC Type | Wavelength | Box Type | Fiber Type | Fiber Length | Connector |
| PLC Splitter |
102=1x2 104=1x4 108=1x8 116=1x16 132=1x32 164=1x64 204=2x4 208=2x8 216=2x16 232=2x32 264=2x64 |
1=1310nm 2=1550nm 3=1310&1550nm 4=1260~1650nm X=Special |
1=Metal Tube+Bare Fiber 1=Metal Tube+Loose Tube 2=90x20x10 ABS Box 3=100x80x10 ABS Box 4=120x80x18 ABS Box 5=140x120x20 ABS Box 6= Metal Box 7=1RU 19” Rack Mount X=Special |
1=G652D 2=G657A1 3=G657A2 X=Special |
1=0.5m 2=1m 3=2m 4=3m 5=Adaptor X=Specia |
1=None 2=FC/UPC 3=FC/APC 4=LC/UPC 5=LC/APC 6=SC/UPC 7=SC/APC X=Special |
