1*6 PLC Splitter

Orientalfiber is a manufacturer and supplier specializing in 1*6 PLC Splitter, with our own factory. Contact us for competitive pricing and professional quotes.

Our high quality 1*6 PLC Splitter are all made in China. Orientalfiber is a professional the 1*6 PLC Splitter manufacturer and supplier in China. You can buy them from our factory. For more information, contact us now.

1×6 PLC Splitter Steel tube package 60x7x4mm, with 900μm loose tube 1.0 +0.05/-0m, SC/APC connector.


Performance Specifications:

Parameters Symbol Specifications Unit
Channel Number Ch 1×6
Operation Wavelength 1260 ~ 1650 nm
Test Wavelength 1310/1550 nm
Spectral ratio 16.67% %
Insertion Loss1 IL ≤9.6 dB
Uniformity Uni ≤0.6 dB
Polarization Dependent Loss PDL ≤0.20 dB
Return Loss RL ≥55 dB
Directivity2 Dir ≥55 dB
Input Optic Power P 100  mW
Fiber Type G657 A1 Fiber
Pigtail Type COM Port:White 900μm loose tube
1~8ch Port:White 900μm loose tube
Input Length 1.0 +0.05/-0 m
Output Length 1.0 +0.05/-0 m
Connector All Port:SC/APC(Cone)
Cable Mark In 、1 、2… …5 、6
Package Dimension (L) × (W) × (H) PKG 60x7x4 mm
Operation Temperature Top -40 ~ +85
Storage Temperature Tst -40 ~ +85


*Notes: 1. All insertion loss values include the loss of the connector.


Sketch Map:

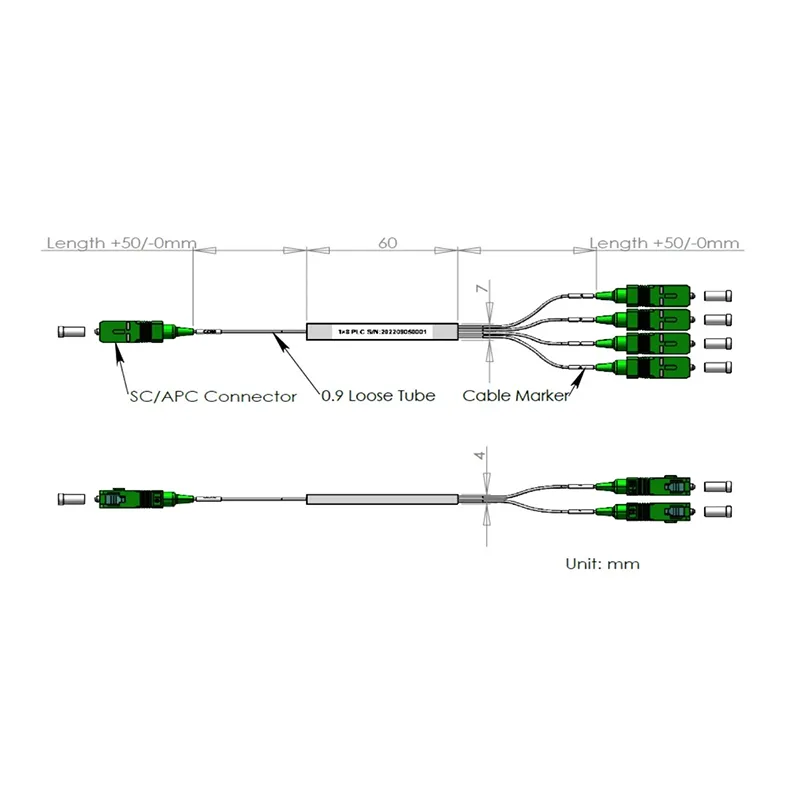

1×6 PLC Splitter Specification
