1*2 PLC Splitter with LC/UPC Connector

Orientalfiber is a manufacturer and supplier specializing in 1*2 PLC Splitter with LC/UPC Connector, with our own factory. Contact us for competitive pricing and professional quotes.

Send Inquiry

Product Description

Our high quality 1*2 PLC Splitter with LC/UPC Connector are all made in China. Orientalfiber is a professional the 1*2 PLC Splitter with LC/UPC Connector manufacturer and supplier in China. You can buy them from our factory. For more information, contact us now.

1×2 PLC Splitter Steel tube package 60x7x4mm, with 900μm loose tube Length 1.0m, LC/UPC connector.

Performance Specifications:

Parameters	Symbol	Specifications	Unit
Channel Number	Ch	1×2
Operation Wavelength		1260 ~ 1650	nm
Test Wavelength		1310/1550	nm
Spectral Ratio		50%	%
Insertion Loss1	IL	≤4.0	dB
Uniformity	Uni	≤0.6	dB
Polarization Dependent Loss	PDL	≤0.25	dB
Return Loss	RL	≥50	dB
Directivity2	Dir	≥55	dB
Input Optic Power	P	100	mW
Fiber Type		G657 A2 Fiber
Pigtail Type		IN Port: White 900μm loose tube
Pigtail Type		1~2ch Port: White 900μm loose tube
Input Length		1.0 +0.05/-0	m
Output Length		1.0 +0.05/-0	m
Connector		All Port: LC/UPC
Cable Mark		IN 、1、2
Package Dimension (L) × (W) × (H)	PKG	60x7x4	mm
Operation Temperature	Top	-40 ~ +85	℃
Storage Temperature	Tst	-40 ~ +85	℃

*Notes: 1. All insertion loss values include the loss of the connector.

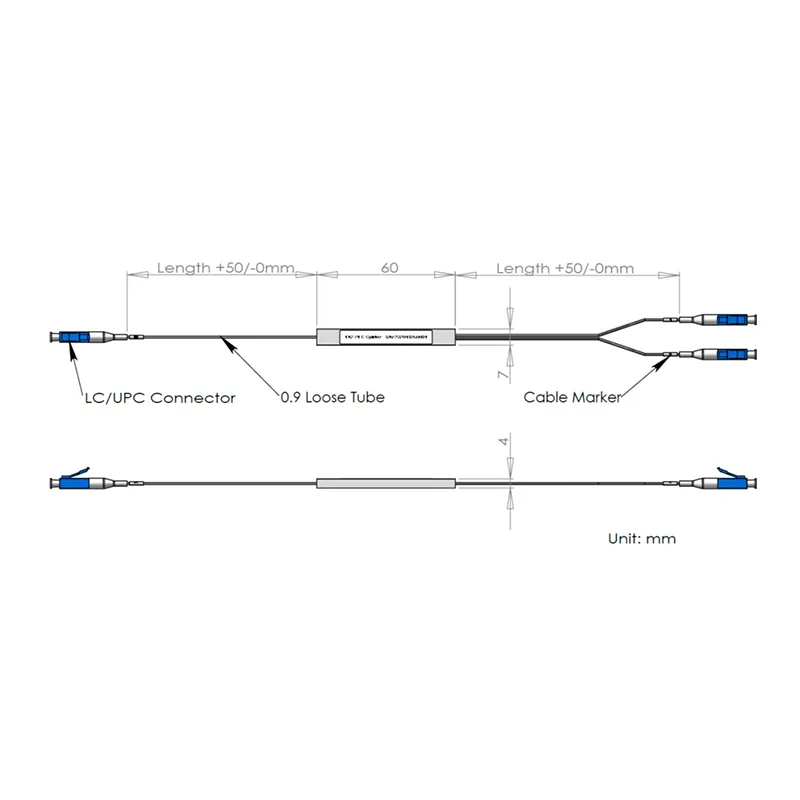

Sketch Map:

1×2 PLC Splitter Spec
