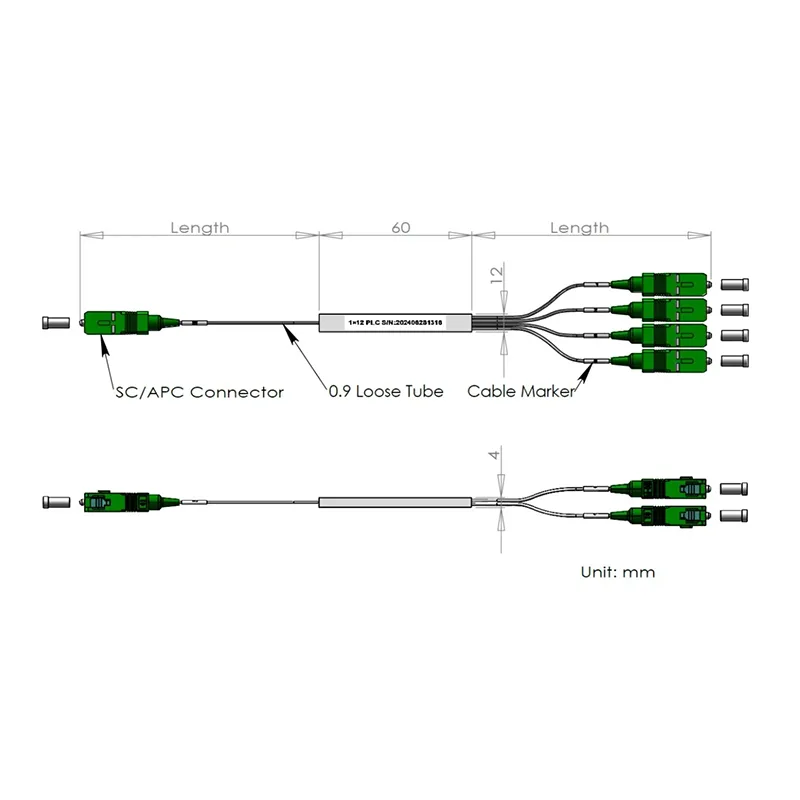

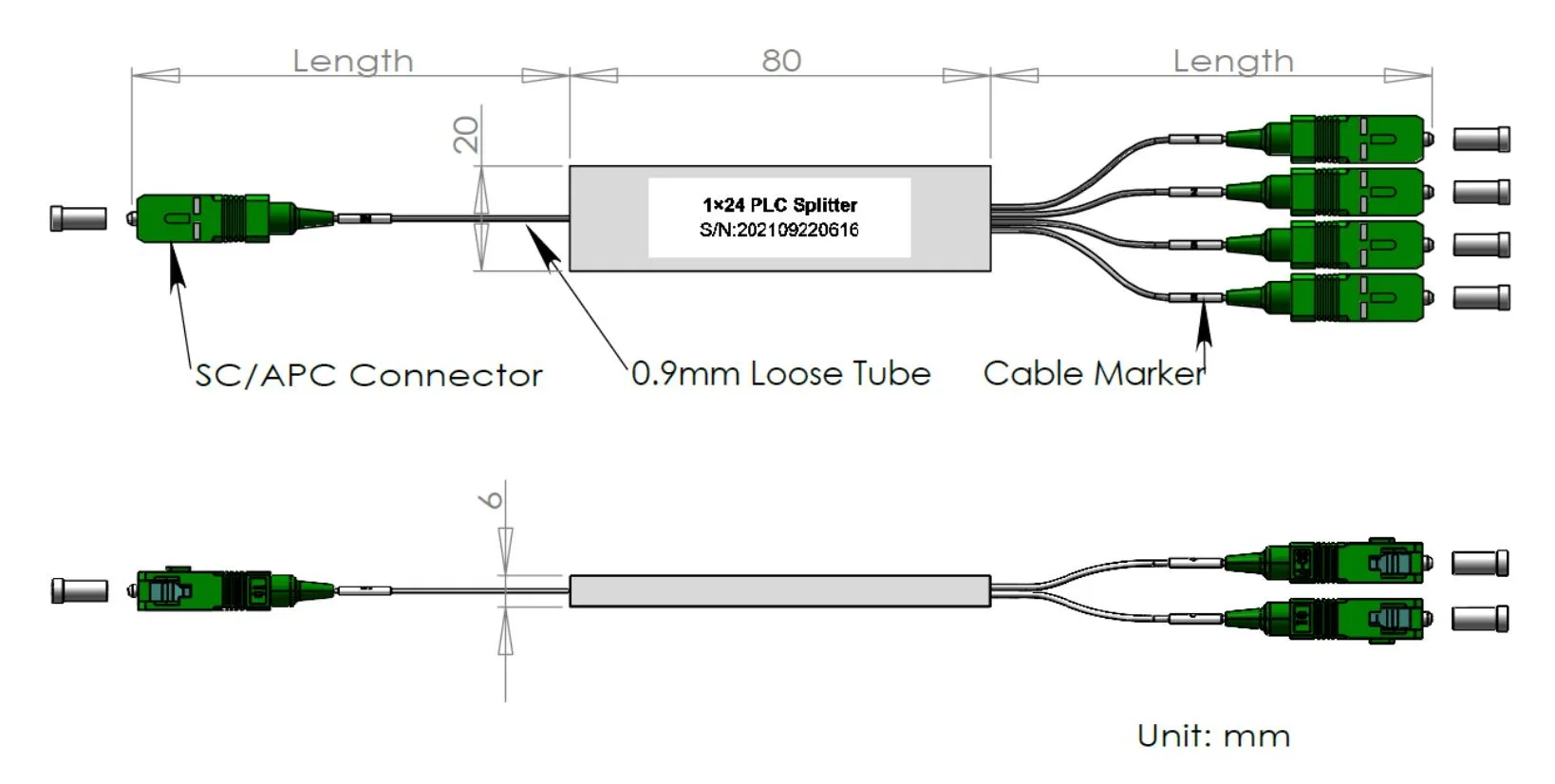

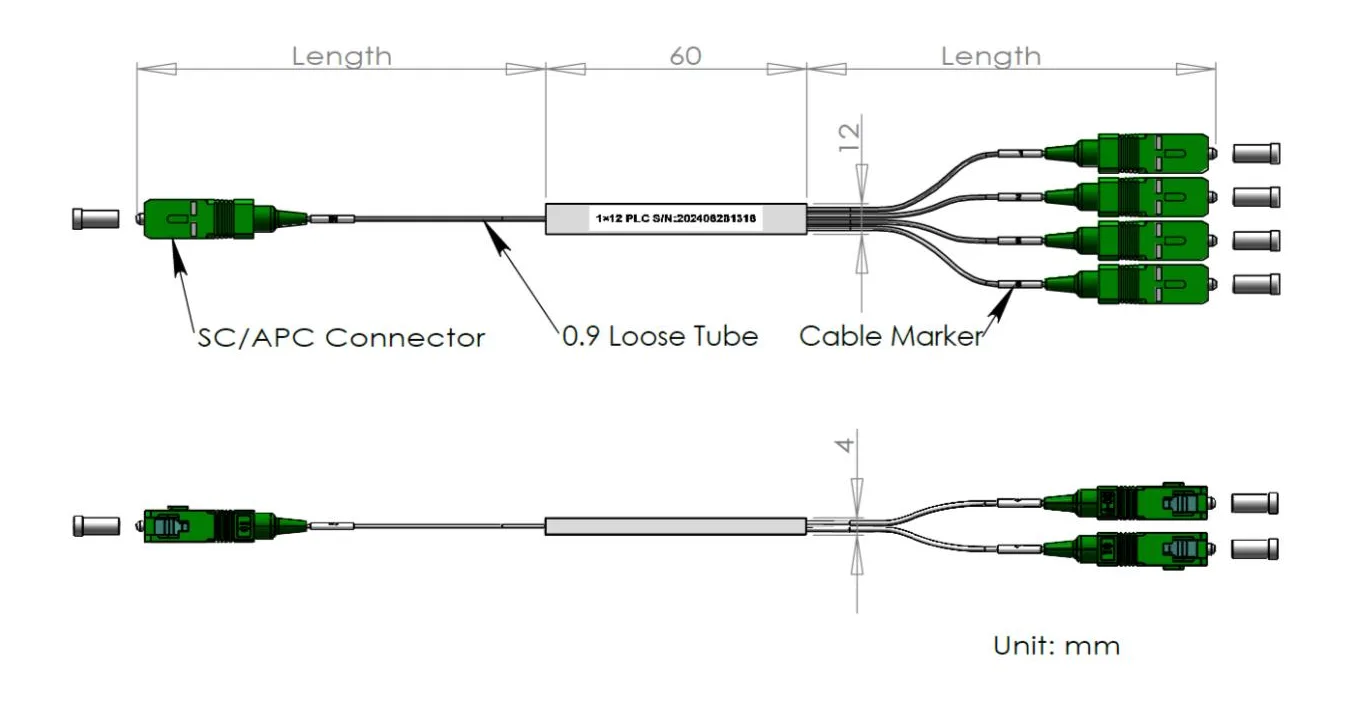

1x12/1×24 PLC Splitter Steel tube package 60x12x4 and 80x20x4mm, with 900μm loose tube 1.0+0.1/-0m, SC/APC Connector.
| Parameters | Symbol | Specifications | Unit | |
| Channel Number | Ch | 1×12 | 1×24 | |
| Operation Wavelength | 1260 ~ 1650 | nm | ||
| Test Wavelength | 1310/1550 | nm | ||
| Spectral ratio | 8.333% | 4.166% | % | |
| Insertion Loss1 | IL | ≤12.5 | ≤16.0 | dB |
| Uniformity | Uni | ≤1.2 | ≤1.6 | dB |
| Polarization Dependent Loss | PDL | ≤0.35 | ≤0.40 | dB |
| Return Loss | RL | ≥55 | dB | |
| Directivity2 | Dir | ≥55 | dB | |
| Input Optic Power | P | 100 | mW | |
| Fiber Type | ITU-T G657 A1 Fiber | |||
| Pigtail Type | All Port：White 900μm loose tube | |||
| Input Length | 1.0 +0.1/-0 | m | ||
| Output Length | 1.0 +0.1/-0 | m | ||
| Connector | All Port：SC/APC | |||
| Cable Mark |
1x12 PLC： IN、1、2… …11 、12 1x24 PLC： IN、1、2… …23 、24 |
|||
| Package Dimension (L) × (W) × (H) | PKG |
1x12 PLC： 60x12x4 1x24 PLC： 80x20x6 |
mm | |
| Operation Temperature | Top | -40 ~ +85 | ℃ | |
| Storage Temperature | Tst | -40 ~ +85 | ℃ | |
*Notes: 1. All insertion loss values include the loss of the connector.
1x12 PLC Splitter
1x24 PLC Splitter
1. Test Report with exact values to be included in packaging.
Example report: 1X12 Mini 0.9mm PLC Splitter Data Sheet
| Operating Wavelength(nm) | 1260-1650 | Inspected date | 2024/11/30 |
| P/N: | 1x12-0.9-In 1.0M-Out 1.0M-SCAPC | SIN: | 21113000001 |
| Fiber type | G657A2 | Fiber Length(m) | In≥1.0m/Out>1.0m |
| Connector Type | SCIAPC | Package Dimension(mm) | 60x12x4 |
| Storage Temperature | -40~+85℃ | Operating Temperature | -40~+85℃ |
| ltem | IL(dB) | PDL(dB) | RL(dB) | |||
| Wavelength(nm) | @1310 | @1550 | @1310 | @1550 | @1310 | @1550 |
| Spec. | MAX.12.50 | MAX.0.35 | ≥55 | |||
| Port 1 | 12.43 | 12.38 | 0.14 | 0.07 | Pass | Pass |
| Port 2 | 12.24 | 12.35 | 0.16 | 0.06 | Pass | Pass |
| Port 3 | 12.22 | 12.20 | 0.12 | 0.07 | Pass | Pass |
| Port 4 | 12.30 | 12.24 | 0.04 | 0.04 | Pass | Pass |
| Port 5 | 12.24 | 12.25 | 0.11 | 0.05 | Pass | Pass |
| Port 6 | 12.35 | 12.29 | 0.11 | 0.01 | Pass | Pass |
| Port 7 | 12.42 | 12.44 | 0.21 | 0.11 | Pass | Pass |
| Port 8 | 12.23 | 12.18 | 0.11 | 0.01 | Pass | Pass |
| Port 9 | 12.27 | 12.19 | 0.21 | 0.10 | Pass | Pass |
| Port 10 | 12.38 | 12.17 | 0.02 | 0.04 | Pass | Pass |
| Port 11 | 12.29 | 12.21 | 0.11 | 0.06 | Pass | Pass |
| Port 12 | 12.42 | 12.27 | 0.08 | 0.07 | Pass | Pass |
| Input | NA | NA | ||||
| MAX | 12.43 | 12.44 | 0.21 | 0.11 | N/A | |
| MIN. | 12.22 | 12.18 | 0.04 | 0.01 | N/A | |
| Average | 12.30 | 12.29 | 0.13 | 0.05 | NA | |
| Uniformity(≤0.8dB) | 0.21 | 0.27 | Directivity(dB) | >55 | ||
