• FTTX Systems
• LAN, WAN and Metro Networks
• Analog/Digital Passive Optical Networks
• CATV Networks
• Other applications in fiber optic systems
• Low Insertion Loss
• Low PDL (Polarization Dependent Loss)
• Compact Design
• Exceptional Reliability and Stability
• Wide Operating Wavelength: 1260 ~ 1650nm
• Wide Operating Temperature: -40 ~ 85°C
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity. These are widely used in PON networks to realize optical signal power splitting as a low-cost solution.
| Parameters | Symbol | Specifications | Unit | ||
| Channel Number | Ch | 1×2 | 2×16 | 2×32 | |
| Operation Wavelength | 1260 ~ 1650 | nm | |||
| Test Wavelength | 1310/1550 | nm | |||
| Insertion Loss1 | IL | ≤4.2 | ≤14.4 | ≤17.8 | dB |
| Uniformity | ≤0.6 | ≤1.5 | ≤1.8 | dB | |
| Polarization Dependent Loss | PDL | ≤0.25 | ≤0.35 | ≤0.35 | dB |
| Return Loss | RL | ≥55 | dB | ||
| Directivity | Dir | ≥55 | dB | ||
| Input Optic Power | P | ≤100 | mW | ||
| Fiber Type | G657.A1 | ||||
| Connector | SC/APC | ||||
| Fiber Mark |
Output: blue/orange/green/brown/ gray/white/red/black |
||||
| Package Dimension(L) × (W) × (H) | PKG | 482 × 200 × 43.5 | mm | ||
| Operation Temperature | Top | -40 ~ +85 | ℃ | ||
| Storage Temperature | Tst | -40 ~ +85 | ℃ | ||
* Note:
1. Specified without connectors.
2. Add an additional 0.2dB loss per connector.

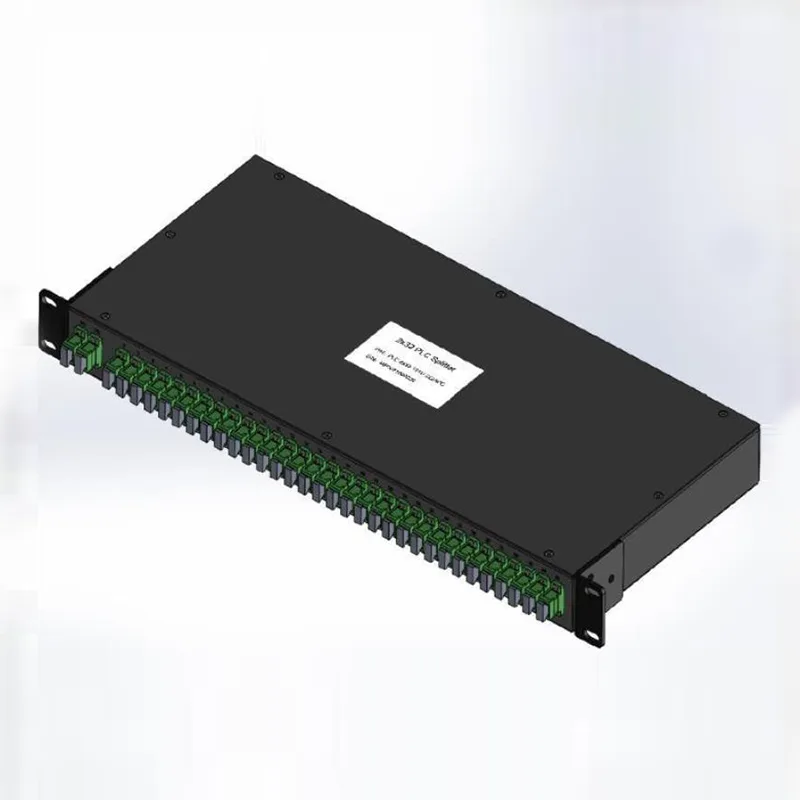

1x2/2x16/2×32 PLC Splitter Specification (1RU 19” Rack Mount Type)

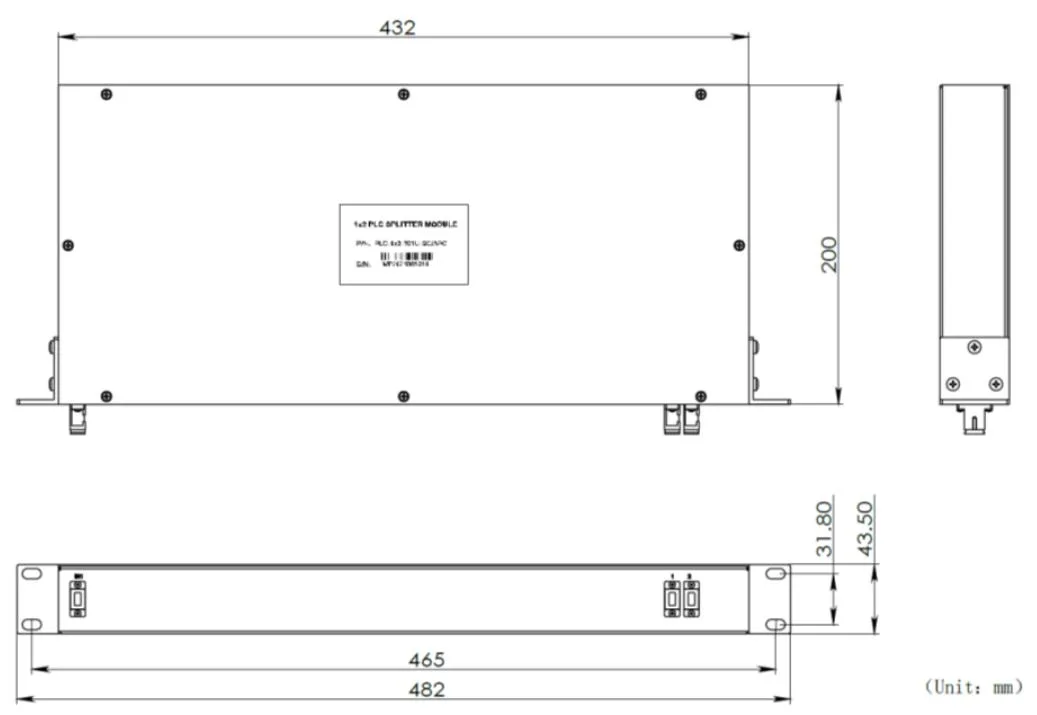

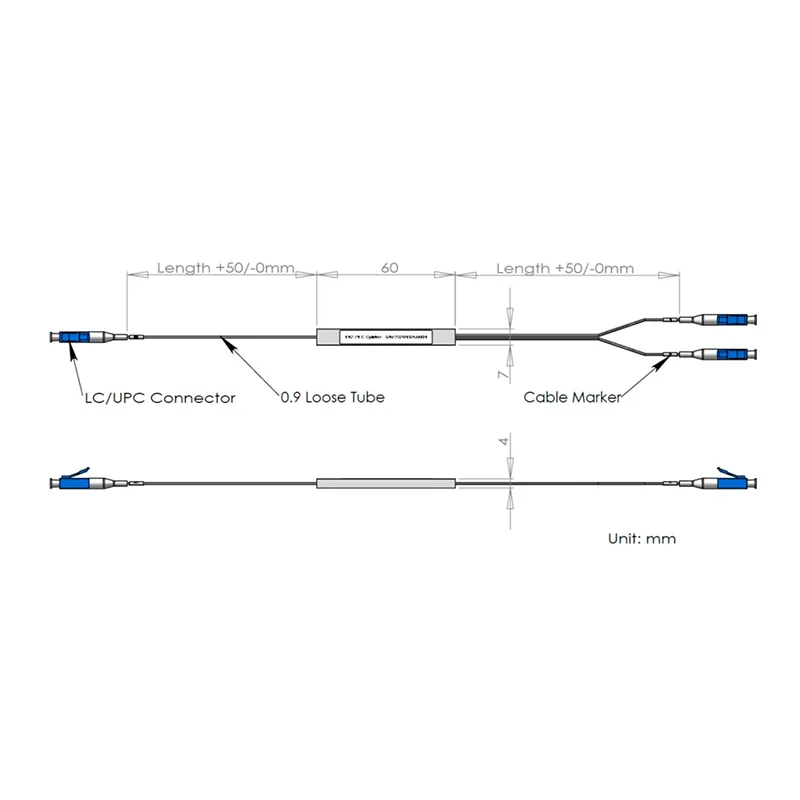

1×2 PLC Splitter Module

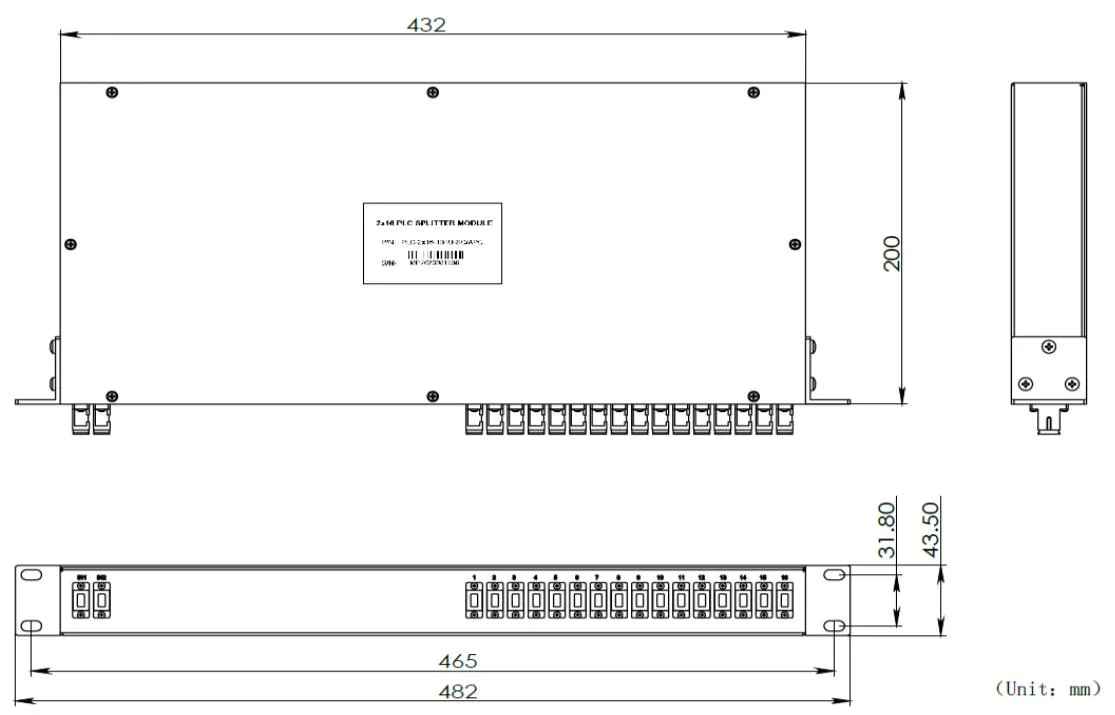

2×16 PLC Splitter Module
1x2/2x16/2×32 PLC Splitter Specification (1RU 19” Rack Mount Type)

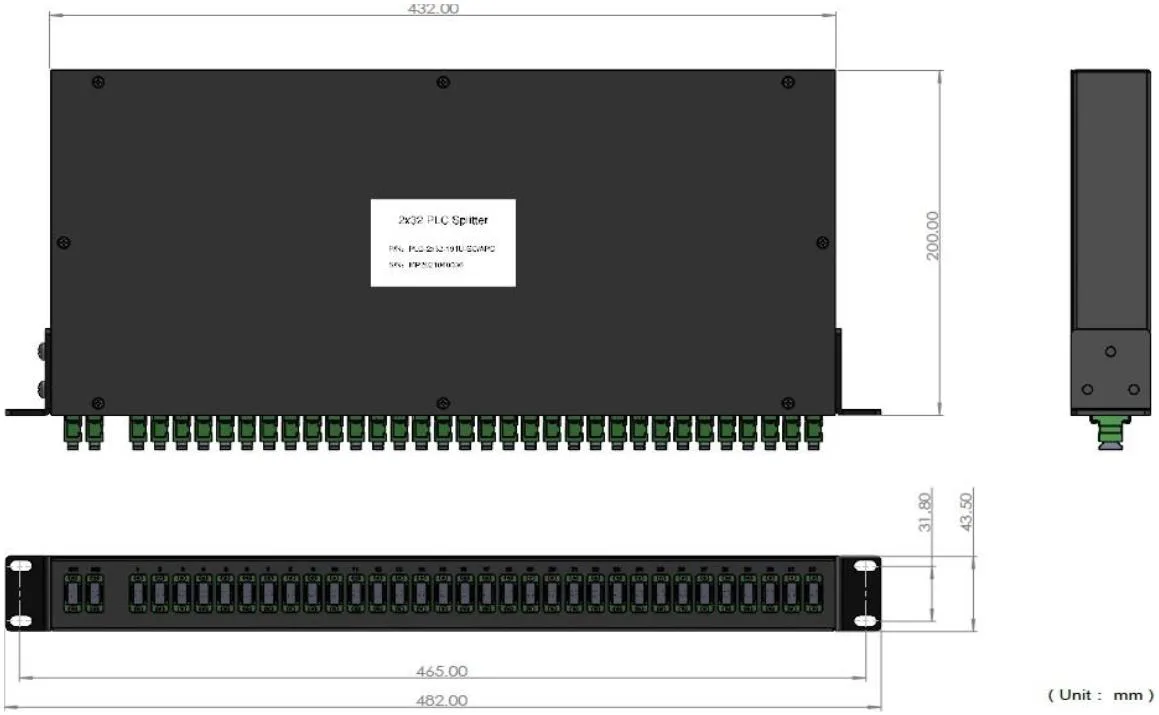

2×32 PLC Splitter Module

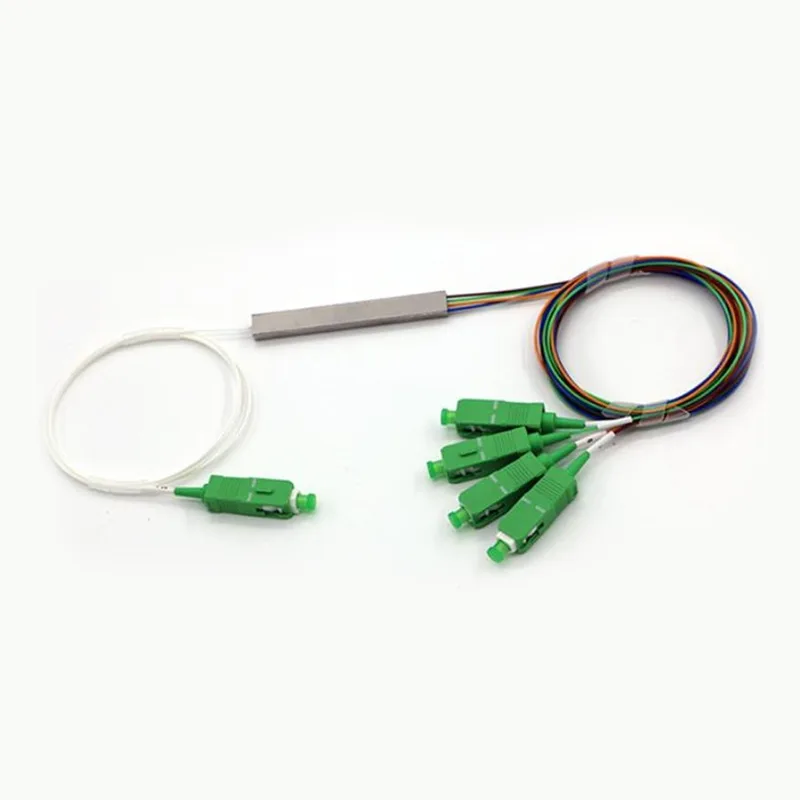

| PLC | PLC Type | Wavelength | Box Type | Fiber Type | Fiber Length | Connector |
| PLC Splitter |
102=1x2 104=1x4 108=1x8 116=1x16 132=1x32 164=1x64 204=2x4 208=2x8 216=2x16 232=2x32 264=2x64 |
1=1310nm 2=1550nm 3=1310&1550nm 4=1260~1650nm X=Special |
1=Metal Tube+Bare Fiber 1=Metal Tube+Loose Tube 2=90x20x10 ABS Box 3=100x80x10 ABS Box 4=120x80x18 ABS Box 5=140x120x20 ABS Box 6= Metal Box 7=1RU 19” Rack Mount X=Special |
1=G652D 2=G657A1 3=G657A2 X=Special |
1=0.5m 2=1m 3=2m 4=3m 5=Adaptor X=Specia |
1=None 2=FC/UPC 3=FC/APC 4=LC/UPC 5=LC/APC 6=SC/UPC 7=SC/APC X=Special |
