1x4/1×8 PLC Splitter Box package 130x100x25mm, PLC Splitter Cable Length 0.35+0.05/-0m, 5pcs or 9pcs Blue SC/UPC Adapter.
| Parameters | Symbol | Specifications | Unit | |
| Channel Number | Ch | 1×4 | 1×8 | |
| Operation Wavelength | 1260 ~ 1650 | nm | ||
| Test Wavelength | 1310/1550 | nm | ||
| Spectral ratio | 25% | 12.5% | % | |
| Insertion Loss1 | IL | ≤7.2 | ≤10.7 | dB |
| Uniformity | Uni | ≤0.8 | ≤1.0 | dB |
| Polarization Dependent Loss | PDL | ≤0.30 | ≤0.30 | dB |
| Return Loss | RL | ≥50 | dB | |
| Directivity2 | Dir | ≥55 | dB | |
| Input Optic Power | P | 100 | mW | |
| Fiber Type | G657 A2 Fiber | |||
| Input Length | 0.35+0.05/-0 | m | ||
| Output Length | 0.35+0.05/-0 | m | ||
| Connector Type | SC/UPC | |||
| Adapter Type | SC/UPC Adapter (Blue) | |||
| Box Screen Printing | 201 (IN) 、1 … …8 | |||

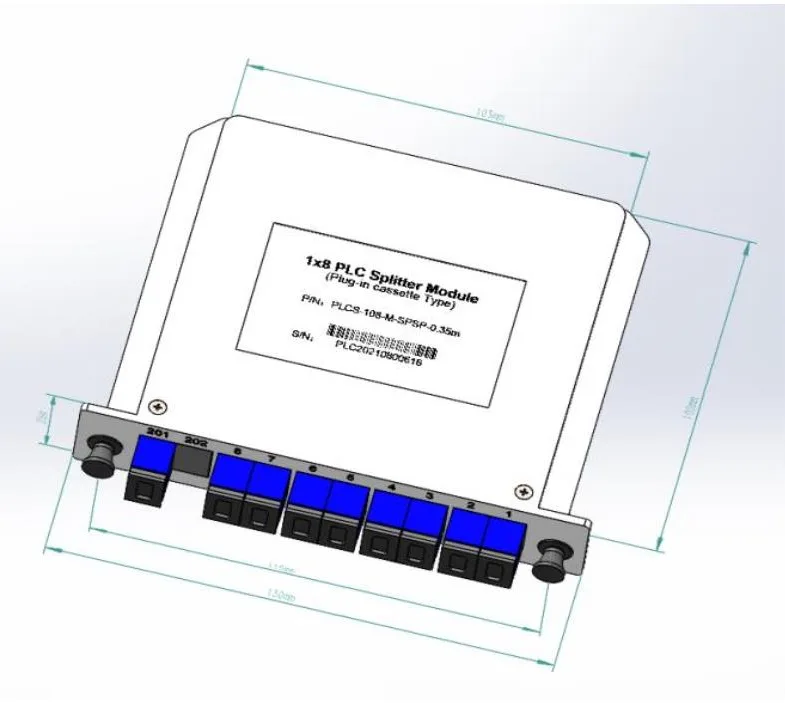

| Package Dimension (L) × (W) × (H) | PKG |
(L) × (W) × (H) 130 × 100 × 25 |
mm | |
| Operation Temperature | Top | -10 ~ +70 | ℃ | |
| Storage Temperature | Tst | -40 ~ +85 | ℃ | |
*Notes: 1. All insertion loss values not include the loss of the connector ，include connector loss +0.3dB.

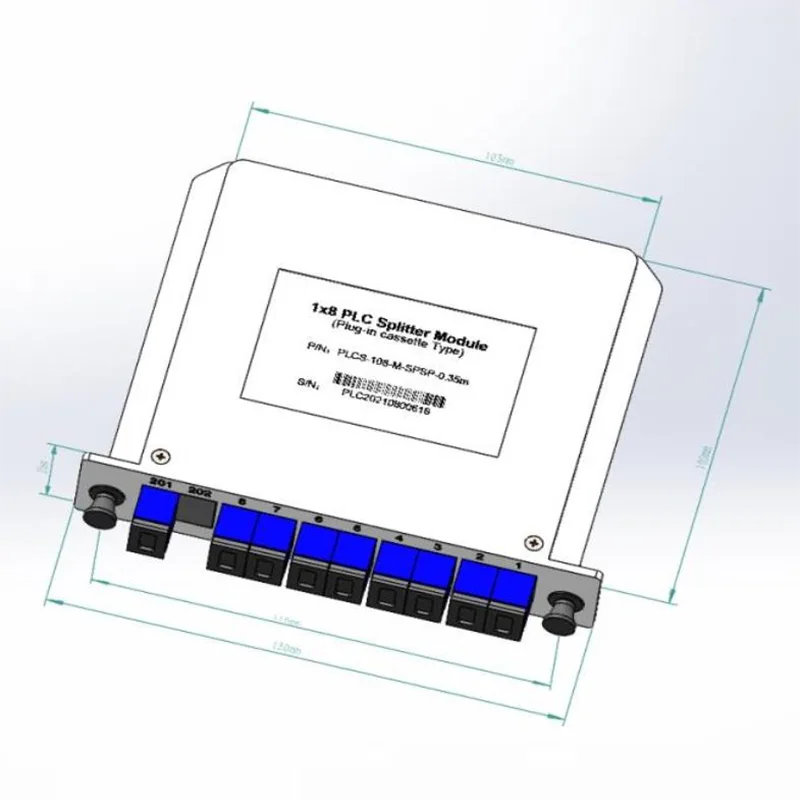

1x4 / 1x8 PLC Plug-in Cassette Splitter Spec
2pcs/Inner carton（155*125*92mm）
