3mm Round Cable E2000/APC- LC/UPC Patch Cords

Orientalfiber is a manufacturer and supplier specializing in 3mm Round Cable E2000/APC- LC/UPC Patch Cords, with our own factory. Contact us for competitive pricing and professional quotes.

Send Inquiry

Product Description

Our high quality 3mm Round Cable E2000/APC- LC/UPC Patch Cords are all made in China. Orientalfiber is a professional the 3mm Round Cable E2000/APC- LC/UPC Patch Cords manufacturer and supplier in China. You can buy them from our factory. For more information, contact us now.

Application:

● Data centers

● Ethernet applications

● FTTH applications

● Backbone, horizontal and riser applications

● Video, data and voice services

● Test equipment applications

Features:

● High precision connector

● UPC&APC end face polish

● SC, LC, all single fiber connector

● Customized length available

● 100% factory terminated and tested

● ROHS Compliant

Technical Specification:

Constructions	Unit	Descriptions
Fiber Mode		Single mode: ITU-T G657A1
Fiber Count		Simplex
Wavelength	nm	1310/1550
Insertion Loss	dB	≤0.30
Return Loss	dB	≥55(APC) ≥50(UPC)
Thight-Buffer Fiber Diameter	um	900
Thight-Buffer Fiber Color		White
Cable Jacket Color		Yellow
Cable Jacket Material		LSZH
Cable Diameter	mm	Φ3.0 ±0.20
Length	m	3.0 +0.1/-0
Connector type		SC/APC (Green) SC/UPC (Blue)
Endface polish		APC and UPC
Ferrule Material		Ceramic
Connection Repeatability		> 800 times
Minimal Bending radius	mm	≥20
Fibre/cable retention meet	N	50N±2N at 5N/s 120s duration
Operating Temperature	℃	-25℃ ~ +65 ℃
Storage Temperature	℃	-25℃ ~ +65 ℃

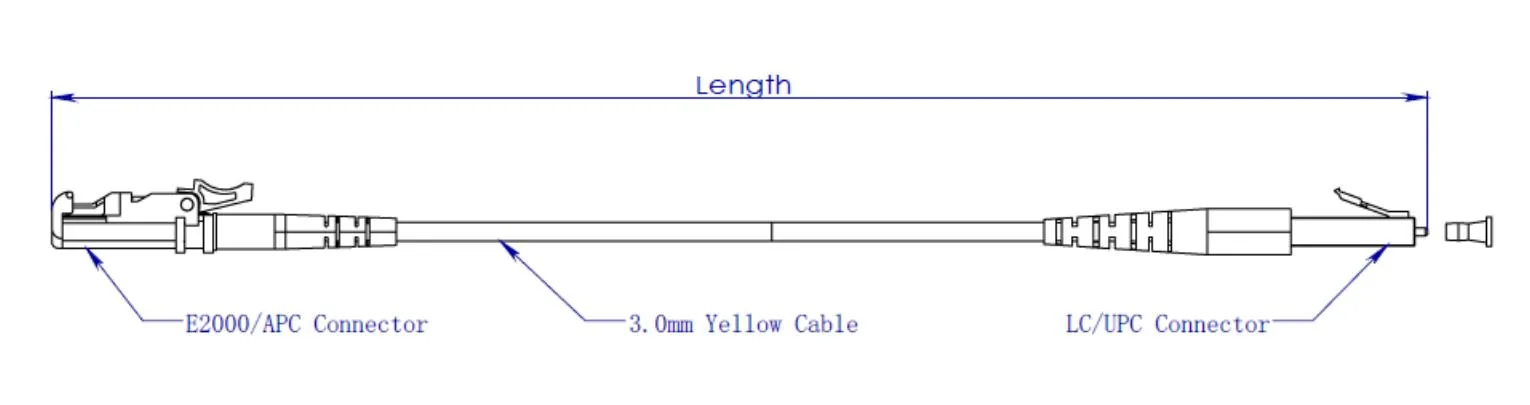

Dimensional drawing:

3mm Round Cable E2000/APC- LC/UPC Patch Cords

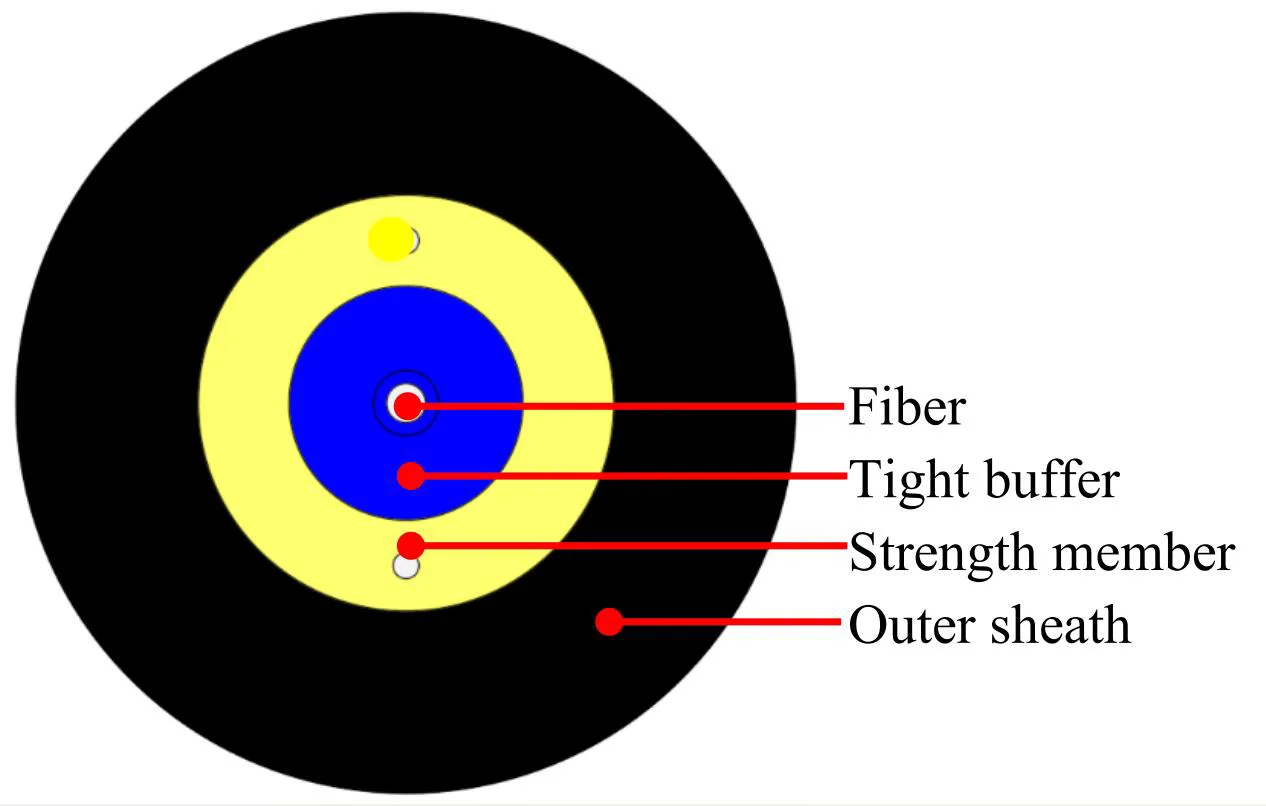

Cable Construction:

3mm Round Cable E2000/APC- LC/UPC Patch Cords

Items		Specifications
Tight buffer fiber	Fiber count	1
	Fiber type	G.657A1
	Fiber Color	Blue
	Material	LSZH
	Diameter	Φ0.9 ± 0.05mm
	Tight buffer Color	White
Strength member	Material	Polyester yarn
Outer sheath	Material	LSZH
	Diameter	Φ3.0 ± 0.2 mm
	Outer sheath Color	Yellow
Ink mark	Color	Black

Fiber Characteristic:

All characteristics of the cable fiber (fiber of finished cable) shall be, at least, in accordance with the ITU-T Recommendation G.657A1 and shall be as follows.

Item	Specification
Fiber type	Single mode
Fiber material	Doped silica
Attenuation coefficient @ 1310 nm @ 1383nm @ 1460nm @ 1550 nm @ 1625nm	≤ 0.35 dB/km ≤ 0.35 dB/km ≤ 0.25 dB/km ≤ 0.21 dB/km ≤ 0.23 dB/km
Cable cut-off wavelength	≤ 1260 nm
Zero-dispersion wavelength	1300 ~ 1324 nm
Zero-dispersion slope	≤ 0.092 ps/(nm².km)
PMD @ 1550 nm	≤0.1 ps/km^1/2
Chromatic dispersion @ 1285 ~ 1330 nm @ 1271 ~ 1360 nm @ 1550 nm @ 1625 nm	≤3 ps/(nm. km) ≤5.3 ps/(nm. km) ≤18.0 ps/(nm. km) ≤22 ps/(nm. km)
Mode field diameter @ 1310 nm	8.8±0.4um
Core / Clad concentricity error	≤ 0.5 um
Cladding diameter	125.0 ± 0.7 um
Cladding non-circularity	≤5%
Primary coating diameter	242 ± 7 um
Concentricity Primary Coating / Coating	≤10 µm
Coating non-circularity	≤0.7%
Attenuation with Cable bending Loss 1 turn 1 radius 10mm 10 turns 1 radius 15mm	1550nm ≤Δ0.75dB/km 1625nm ≤Δ1.5dB/km 1550nm ≤Δ0.25dB/km 1625nm ≤Δ1.0dB/km
