● Data centers
● Ethernet applications
● FTTH applications
● Backbone, horizontal and riser applications
● Video, data and voice services
● Test equipment applications
● High precision connector
● UPC end face polish
● Customized length available
● 100% factory terminated and tested
● ROHS Compliant
| Constructions | Unit | Descriptions |
| Fiber Count | Duplex | |
| Wavelength | nm | 1310/1550 |
| Insertion Loss | dB | ≤0.25 |
| Return Loss | dB | ≥50 (UPC) |

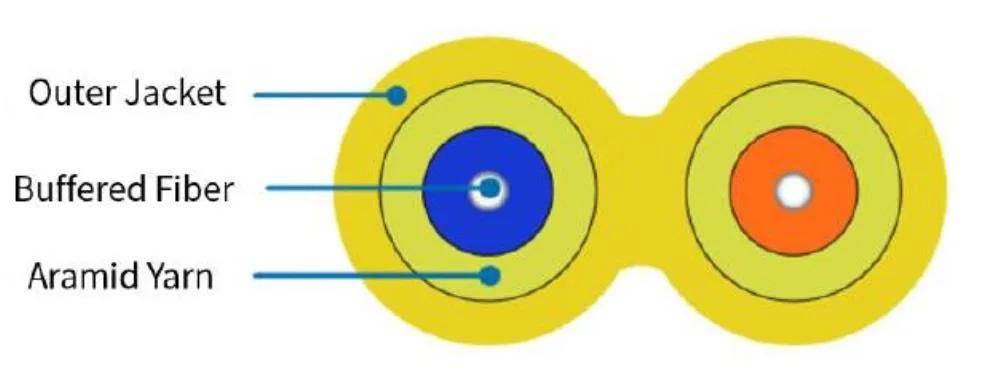

| Buffer Fiber Diameter | um | 900 |
| Buffer Fiber Color | White and Blue | |
| Cable Jacket Color | Yellow | |
| Cable Diameter | mm | 6.0±0.2 x 3.0±0.15 |
| Length | m |
0.5 +0.1/-0 1.0 +0.1/-0 2.0 +0.2/-0 5.0 +0.3/-0 |

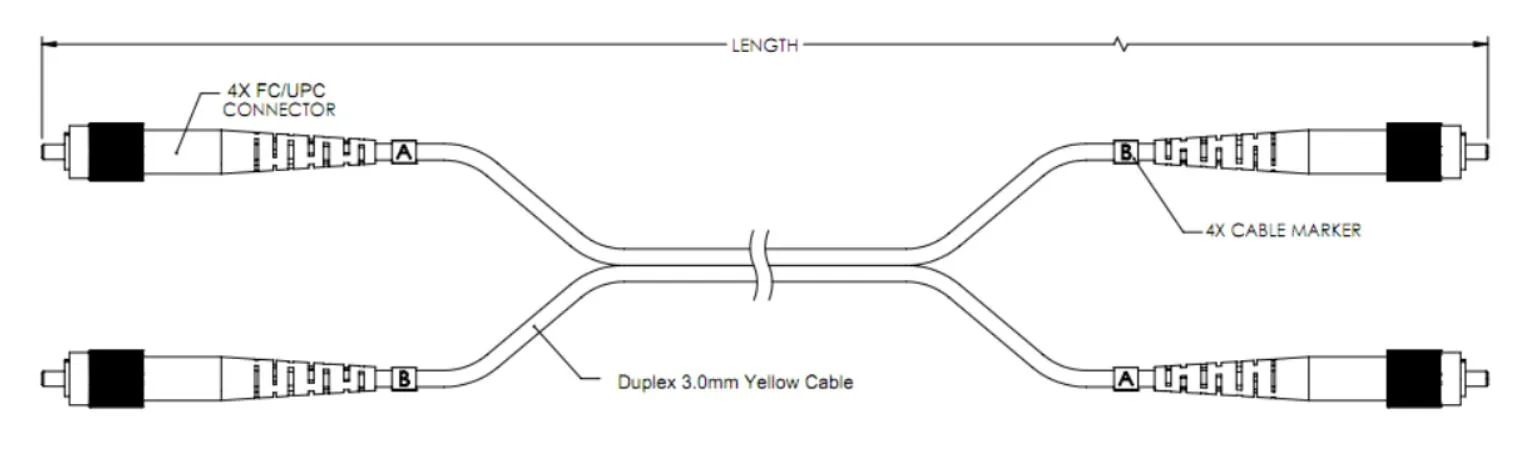

| Connector type |
A Port： FC/UPC (Black) B Port： FC/UPC (Black) |
|
| Endface polish | UPC | |
| Ferrule Material | Ceramic | |
| Connection Repeatability | > 800 times | |
| Fiber Mode | Single mode: ITU-T G652D | |
| Cable Jacket Material | Low Smoke Zero Halogen (LSZH) | |
| Minimal Bending radius | mm | ≥40 |
| Fibre/cable retention meet | N | 50N±2N at 5N/s 120s duration |
| Polarity | A-B 、B-A (TIA-568.3-D) | |
| Operating Temperature | -20°C ~ +70℃ | |
| Storage Temperature | -40℃ ~ +85℃ |
