● Indoor cabling
● FTTH (Fiber To The Home)

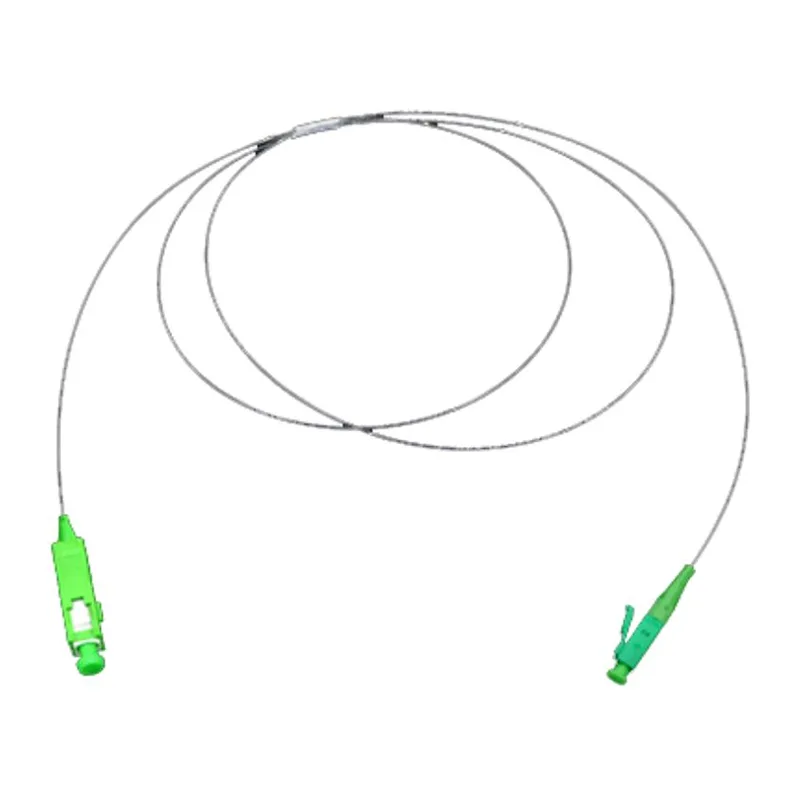

● The unit of the invisible bow-type drop cable
● Compact and light-weight
● Invisible and has no effect to interior decoration
● provides excellent bending performance
● Customized length available
● 100% factory terminated and tested
| Constructions | Unit | Descriptions |
| Fiber Mode | Single mode: ITU-T G657 B3 | |
| Fiber Count | Simplex | |
| Wavelength | nm | 1310/1550 |
| Insertion Loss | dB | ≤0.30 |
| Return Loss | dB | ≥55 (APC) |
| Cable Diameter | mm | 0.9 ± 0.05 |
| Cable Jacket Color | Transparent | |

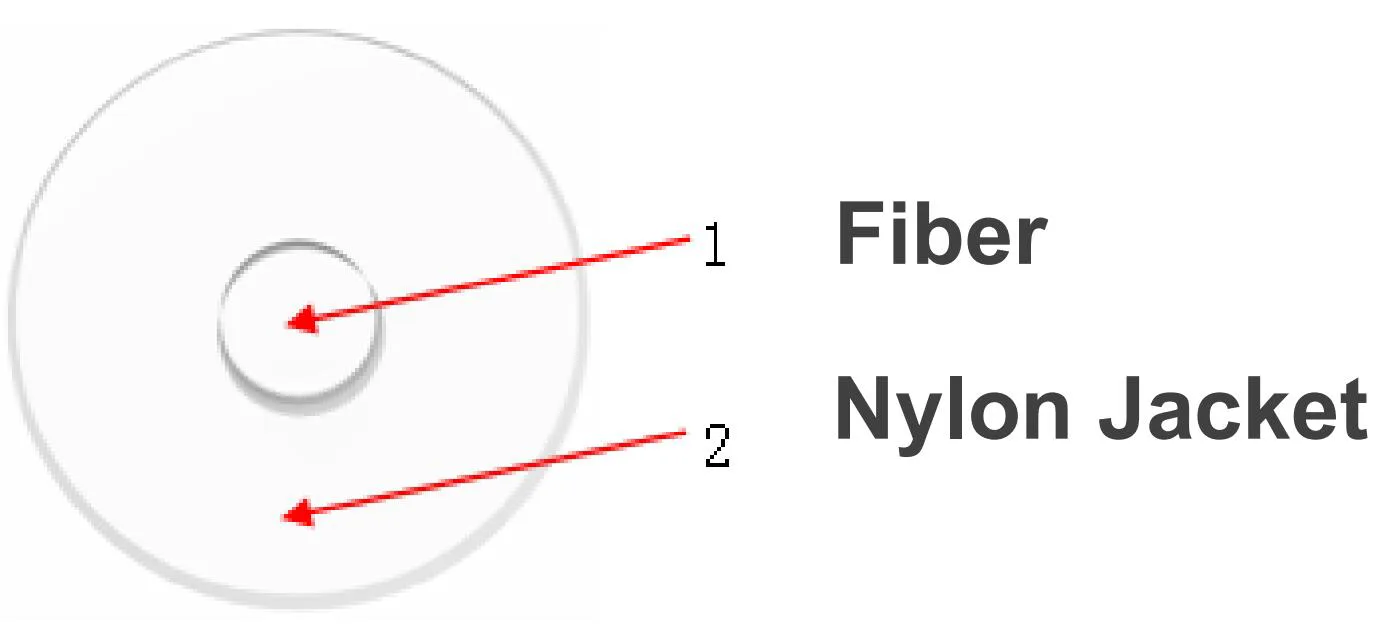

| Cable Jacket Material | Nylon | |
| Length | m |
10 +0.5/-0 、20 +0.5/-0、 30 + 1.0/-0 、40 +1.0/-0、 |

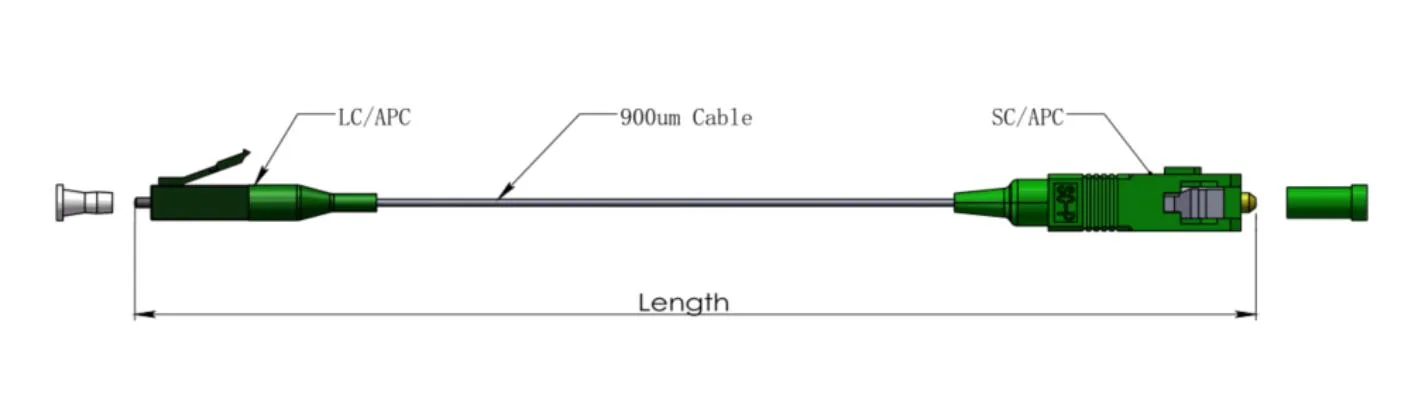

| Connector type |
A Port: SC/APC (Green) B Port: LC/APC (Green) |
|
| Endface polish | APC | |
| Ferrule Material | Ceramic | |
| Connection Repeatability | > 500 times | |
| Operating Temperature | -20°C ~ +60℃ | |
| Storage Temperature | -20℃ ~ +60℃ |
| Cable type | Diameter | Tensile strength | Crush resistance | Bending radius (B6a) | Bending radius (B6b) | ||||
|
Long term |
Short term |
Long term |
Short term |
Static | Dynamic | Static | Dynamic | ||
| （mm） | （N） | （N/100mm） | （mm） | （mm） | |||||
| Φ 0.9 mm |
0.9 ± 0.05 |
5 | 20 | 100 | 500 | 15 | 30 | 5 | 20 |
| Fiber type | Attenuation (Max) | Macro bend loss (Max) | ||||
| 1310nm | 1550nm |
Φ30mm 10 turns |
Φ20mm 1turn |
Φ15mm 1turn |
Φ10mm 1turn |
|
| （dB/km） | （dB） | |||||
| G.657B3 | 0.40 | 0.30 | N/a |
0.03 @1550nm 0.10 @1625nm |
0.08 @1550nm 0.25 @1625nm |
0.15 @1550nm 0.45 @1625nm |
| Transportation & Storage | Installation | Operation | Remarks |
| -20℃ — +60℃ | -10℃ — +50℃ | -20℃ — +60℃ | RoHS |
