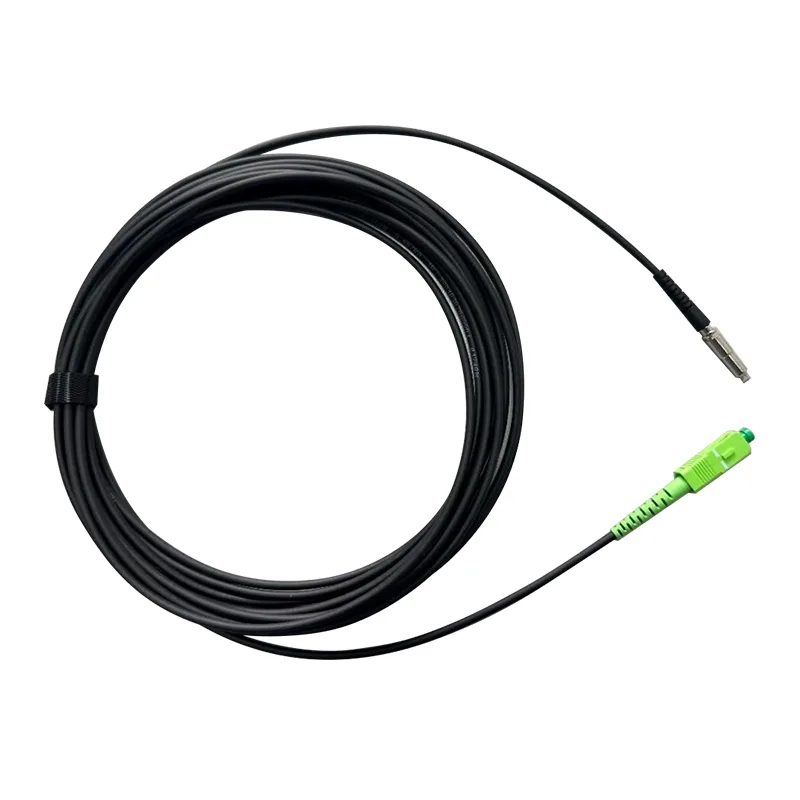

Mini SC/APC Patch Cord

The Orientalfiber Mini SC/APC Patch Cord is a professional optical patch solution from our China-based factory, designed for high-performance network connectivity. This patch cord is suitable for FTTX, FTTH, Ethernet, and CATV applications, offering reliable signal distribution and simple installation. As a leading Orientalfiber supplier, we ensure our Mini SC/APC Patch Cord meets industry standards and supports fast deployment for both commercial and residential networks.

Send Inquiry

Product Description

Our high quality Mini SC/APC Patch Cord are all made in China. Orientalfiber is a professional the Mini SC/APC Patch Cord manufacturer and supplier in China. You can buy them from our factory. For more information, contact us now.

The Mini SC/APC Patch Cord is an optical fiber connection cable with a compact SC/APC connector. It is engineered to provide low insertion loss and high return loss, ensuring signal integrity across a wide range of optical networks. Our product is manufactured under strict quality control to meet the demands of modern FTTX/FTTH systems and passive optical networks (PON).

Key Applications

FTTX / FTTH Systems

Ethernet Networks

CATV Links

Optical Signal Distribution

Passive Optical Networks (PON)

Technical Features

Low insertion loss, high return loss

High repeatability and exchangeability

100% tested for insertion, return loss, end face, and interference

Strong mechanical endurance

Complies with Telcordia GR-326-Core standards

Fast and easy installation for through-wall wiring

Maintains stable performance in dense cabling environments

Technical Specification:

Constructions	Unit	Descriptions
Fiber Count		Simplex
Wavelength	nm	1310/1550
Insertion Loss	dB	≤0.30
Return Loss	dB	≥60 (APC)
Cable Jacket Color		Black， or Customizable
Cable Outer Diameter	mm	φ3.0±0.1
Fiber Mode		Single mode: G657 B3
Cable Jacket Material		TPU,UVesisn.
Cable weight	kg/km	8.5（approx）
Printing contents		Customizable
Length	m	80 or Customizable (Tolerance: ±0.5m)
Connector type		Input:	Mini SC/APC Connector
		Output:	SC/APC Connector
Operating Temperature	℃	-20°C ~ +60℃
Storage Temperature	℃	-40℃ ~ +85℃

Cable Structure:

Mini SC/APC Patch Cord

Items		Descriptions
Optical fiber	Fiber type	ITU-T G.657B3 single mode
	Core diameter(μm)	8-11μm
	Cladding diameter (μm)	125.0±0.7μm
	Coating diameter (μm)	245±10μm(Before Colored) 250±15μm(Colored)
	Mode field diameter	8.6~8.8±0.4μm @1310nm 9.6~9.8±0.5μm @1550nm
	Operating wavelengths	1260~1625nm
	Color	Blue
	Cable attenuation	≤0.35dB/km λ= 1310 nm ≤0.25dB/km λ = 1550 nm ≤0.26dB/km λ = 1625 nm
	Fiber count	1
	Glass manufacturer
Tight buffer fiber	Diameter	0.90±0.05mm
	Color	Blue
	Material	LSZH
Outer Jacket	Diameter	3.0±0.1mm
	Thickness	0.8±0.1mm
	Color	Black
	Material	TPU,UV resistant.
Strength member	Material	Aramid yarn
Span	1	80m
Installation sag	/	1%
Max.wind speed	/	50km/hr
Weight	/	8.4 kg/km
Operation traction tension	1	200N
Max.traction tension	/	1000N
Cable application	/	Outdoor, Aerial,duct installation Self-supported

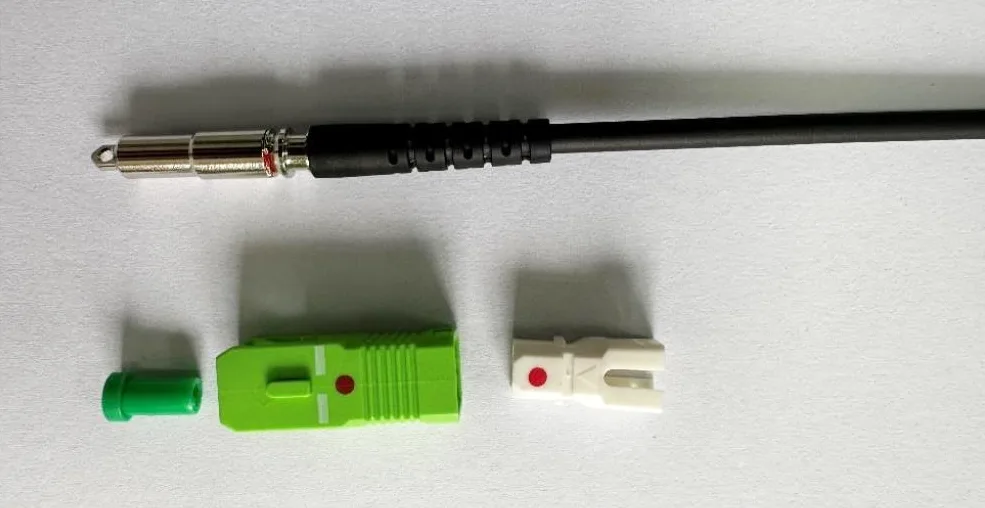

Product Diagram:

Mini SC/APC Patch Cord

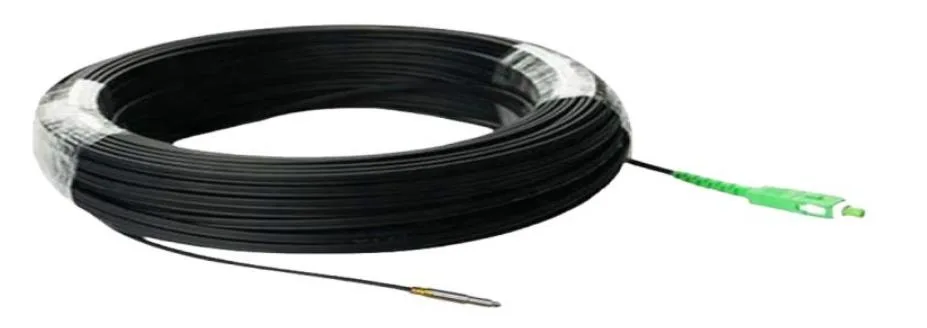

Package:

Mini SC/APC Patch Cord

Technical Advantages

Precision Polishing

Our Mini SC/APC connectors undergo precise angle-polishing for minimal back reflection and superior optical performance.

Durability and Reliability

The cable jacket is engineered to resist bending, tensile stress, and environmental wear, ensuring longevity in demanding installations.

Easy Integration

The patch cord supports quick deployment and reconfiguration, ideal for service providers, network integrators, and enterprise setups.

Quality Assurance

Every Orientalfiber Mini SC/APC Patch Cord is tested 100% for insertion loss, return loss, and end-face inspection before leaving the factory, guaranteeing consistent performance.
