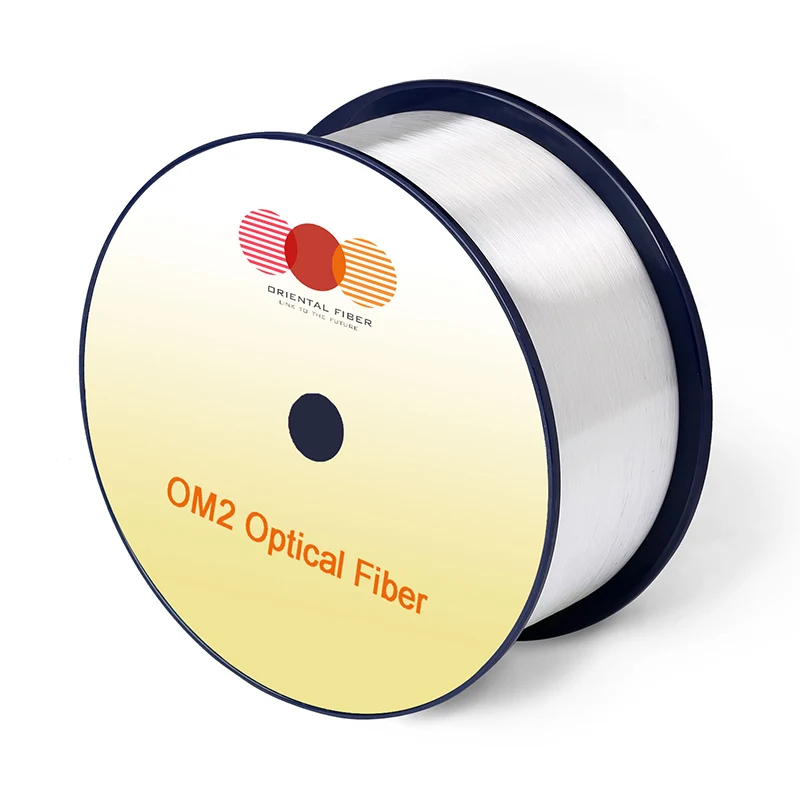

Superior geometry uniformity
Low attenuation
High bandwidth at wavelengths of 850nm and 1300nm
Manufactured by PCVD process
Extremely refined refractive index profile
Very low macro-bending sensitivity
Coated with dual layer UV curable acrylate
Local area networks (LAN)
Video, voice and data services
Gigabit Ethernet using laser or LED light sources
Supports the use and installation of optical cables with a small bending radius
High resistance to micro-bending
Suitable for tight buffer cables
Suitable for various environments
|
Characteristics |
Conditions |
Specified Values |
Units |
|
Geometry Characteristics |
|||
|
Core Diameter |
-- |
50±2.5 |
[μm] |
|
Core Non-Circularity |
-- |
≤5.0 |
[%] |
|
Cladding Diameter |
-- |
125.0±1.0 |
[μm] |
|
Cladding Non-Circularity |
-- |
≤1.0 |
[%] |
|
Coating Diameter |
-- |
245±7 |
[μm] |
|
Coating/Cladding Concentricity Error |
-- |
≤10.0 |
[μm] |
|
Coating Non-Circularity |
-- |
≤6.0 |
[%] |
|
Core/Cladding Concentricity Error |
-- |
≤1.5 |
[μm] |
|
Delivery Length |
-- |
up to 17.6 |
[km/reel] |
|
Optical Characteristics |
|||
|
Attenuation |
850nm |
≤2.3 |
[dB/km] |
|
1300nm |
≤0.6 |
[dB/km] |
|
|
Overfilled Modal Bandwidth |
850nm |
≥500 |
[MHz·km] |
|
1300nm |
≥500 |
[MHz·km] |
|
|
Numerical Aperture |
-- |
0.200±0.015 |
-- |
|
Group Refractive Index |
850nm |
1.482 |
-- |
|
1300nm |
1.477 |
-- |
|
|
Zero Dispersion Wavelength，λ0 |
-- |
1295-1340 |
[nm] |
|
Zero Dispersion Slope，S0 |
1295nm≤λ0≤1310nm |
≤0.105 |
[ps/(nm2·km)] |
|
1310nm≤λ0≤1340nm |
≤0.000375(1590-λ0) |
[ps/(nm2·km)] |
|
|
Macro bending Loss |
-- |
-- |
-- |
|
2 Turns @ 15 mm Radius |
850nm |
≤0.1 |
[dB] |
|
1300nm |
≤0.3 |
[dB] |
|
|
2 Turns @ 7.5 mm Radius |
850nm |
≤0.2 |
[dB] |
|
1300nm |
≤0.5 |
[dB] |
|
|
Backscatter Characteristics |
1300nm |
|
|
|
Step(Mean of Bidirectional Measurement) |
-- |
≤0.10 |
[dB] |
|
Irregularities Over Fibre Length and Point Discontinuity |
-- |
≤0.10 |
[dB] |
|
Attenuation Uniformity |
-- |
≤0.08 |
[dB/km] |
|
Environmental Characteristics |
850nm & 1300nm |
|
|
|
Temperature Cycling |
-60℃ to 85℃ |
≤0.10 |
[dB/km] |
|
Temperature-Humidity Cycling |
-10℃ to 85℃，4% to 98% RH |
≤0.10 |
[dB/km] |
|
Water Immersion |
23℃, 30 days |
≤0.10 |
[dB/km] |
|
Dry Heat |
85℃，30 days |
≤0.10 |
[dB/km] |
|
Damp Heat |
85℃, 85% RH，30 days |
≤0.10 |
[dB/km] |
|
Mechanical Specification |
|||
|
Proof Test |
-- |
≥9.0 |
[N] |
|
-- |
≥1.0 |
[%] |
|
|
-- |
≥100 |
[kpsi] |
|
|
Coating Strip Force |
typical average force |
1.5 |
[N] |
|
peak force |
≥1.3，≤8.9 |
[N] |
|
|
Dynamic Stress Corrosion Susceptibility Parameter(nd, typical) |
-- |
20 |
-- |
