Pre-connectorized Fiber Optic Cable Distribution Box GFS-008-029C

1. General

1.1 Description

Pre-connectorized optical distribution box as the most advanced FTTX network distribution node equipment, provide quick and reliable connection, good protection and management for the FTTX network.

GFS-008-029C

1.2 Standards Comply

The production offered are designed, manufactured and tested according to the standards as follows:

1.3 Applications Environment

2. Characteristics

1. The bottom shell and upper cover are welded by hot plate welding, which is not detachable.

2. Material: PP+GF.

3. Moisture proof, waterproof, dust-proof, anti-aging.

4. Protection level up to IP68.

5. The interior is equipped with 1x2 FBT splitter+ 1x8 PLC splitter or 1x9 PLC splitter.

6. Installation method: pole-mounted, aerial-mounted, wall-mounted.

3. Specifications

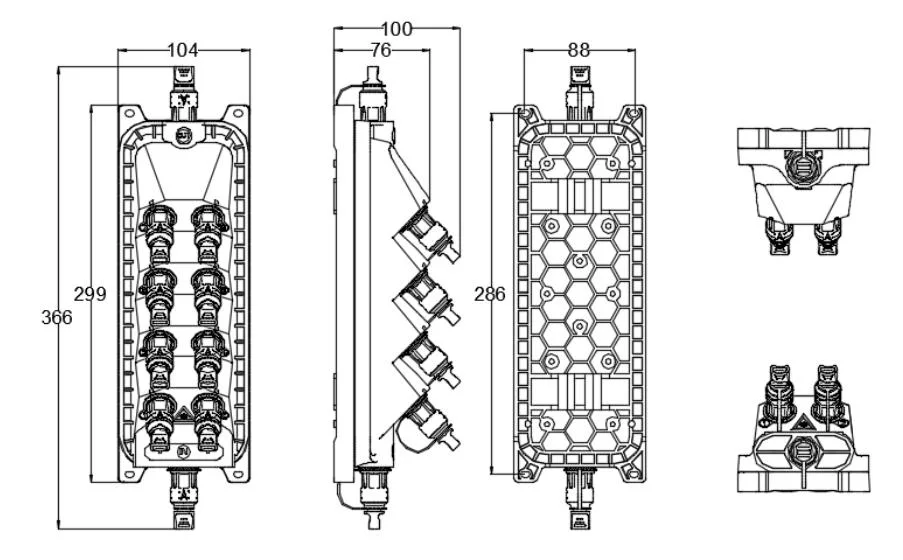

3.1 Mechanical specifications

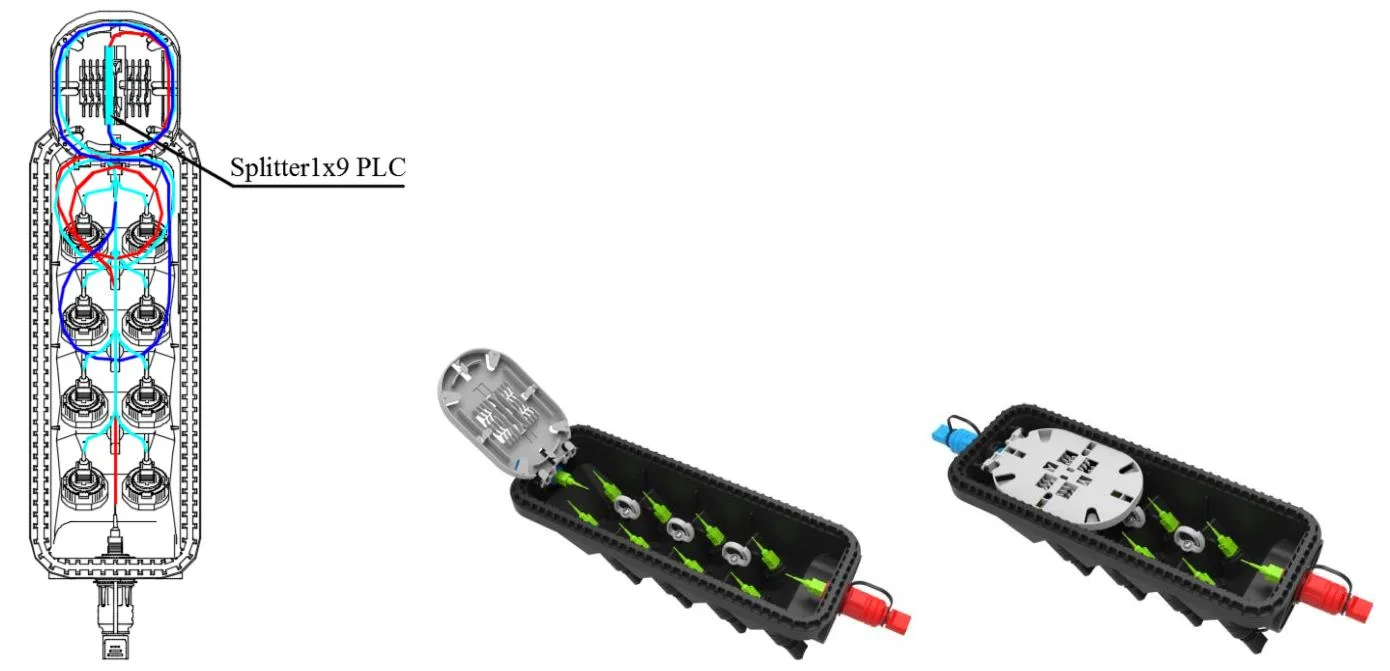

4. Configuration

Main optical parameters

The optical parameters shown in the table above are default values, and can be customized according to requirements.

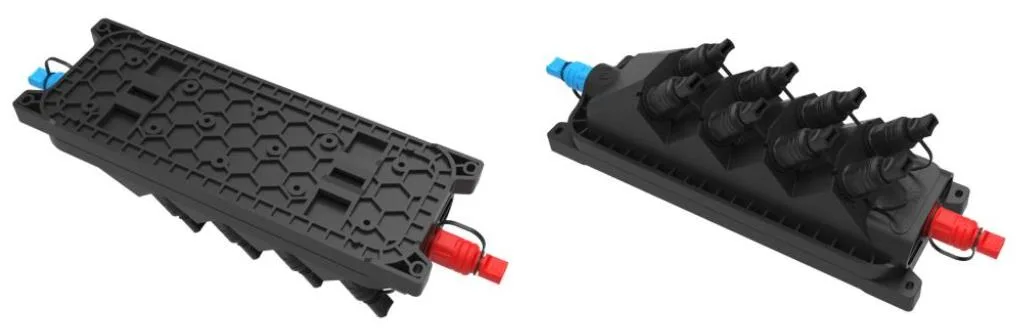

5. Product Picture

5.1 Product cable ways:

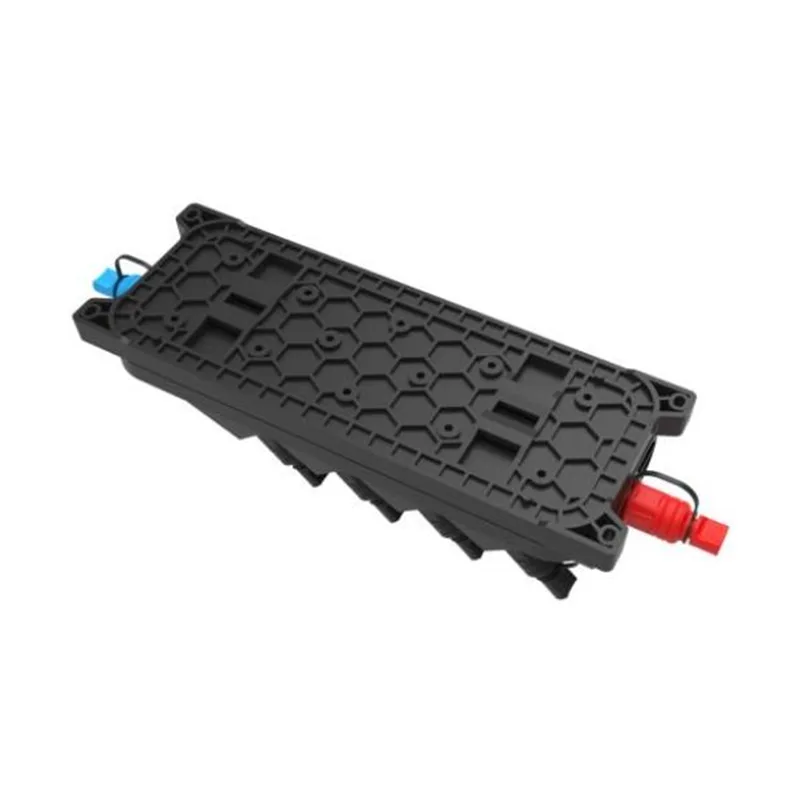

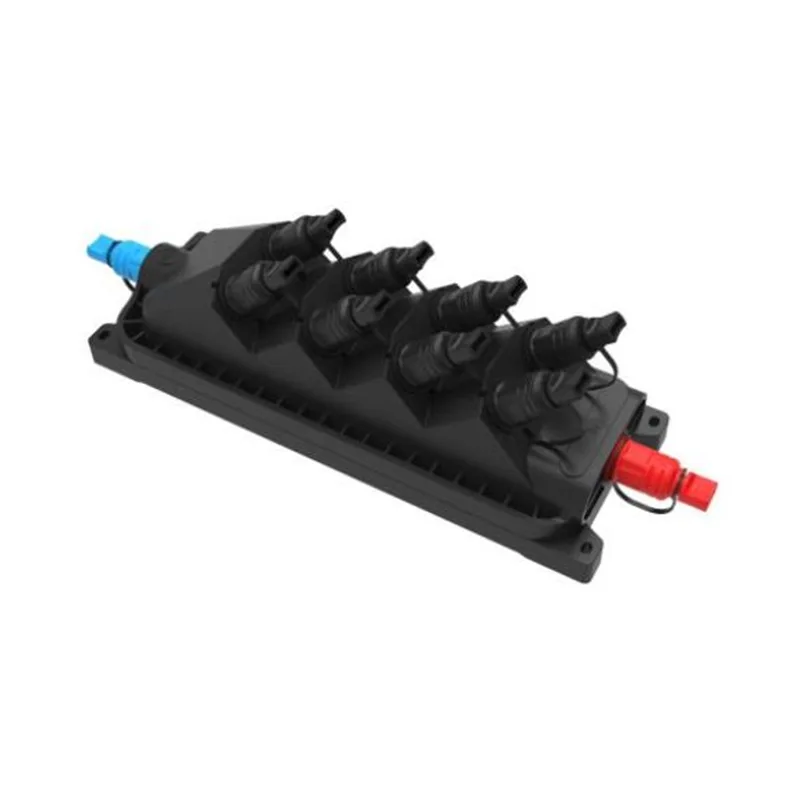

GFS-008-029C product picture

6. Environmental characteristics

This product complies with the RoHS environmental protection directive, and the content of lead, cadmium, mercury, hexavalent chromium, polybrominated biphenyl (PBB) (PBB) and polybrominated diphenyl ether (PBDE) does not exceed the limit.

7. Installation

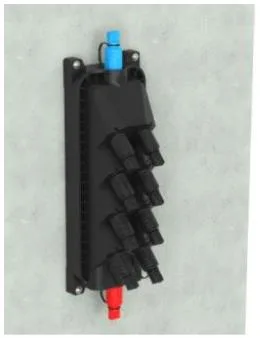

7.1. Wall-mounted installation

Drill 4 holes into the wall based on the size in table 1, place the expansion bolt Φ8*40, place the box to match up the holes and use bolt to fasten.

Wall mounted installation

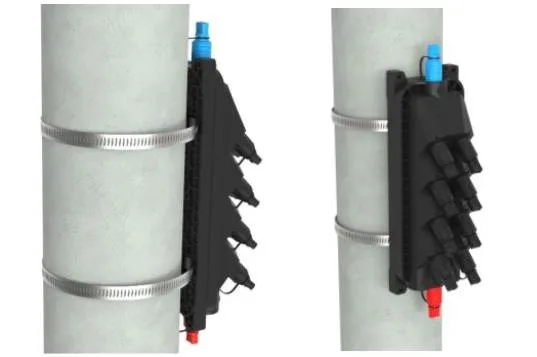

7.2. Pole-mounted installation

Fix 1 set of the pole ring to the telecom pole

Pole mounted installation

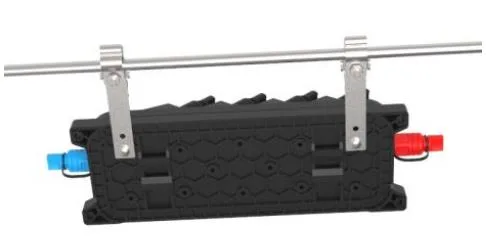

7.3. The overhead structure

Tie the two installed on the chassis of the overhead hung on the wire, and then bolted, prevent the case fall off.

The overhead structure

8. Connector operation

8.1 Pre-connected adapter - A（ E）

⚫ Rotate the arrow part of fiber connector counterclockwise and take out the dust cap.

⚫ The arrow part of fiber connector is above, insert fiber connector into the socket and then rotate the arrow part clockwise.

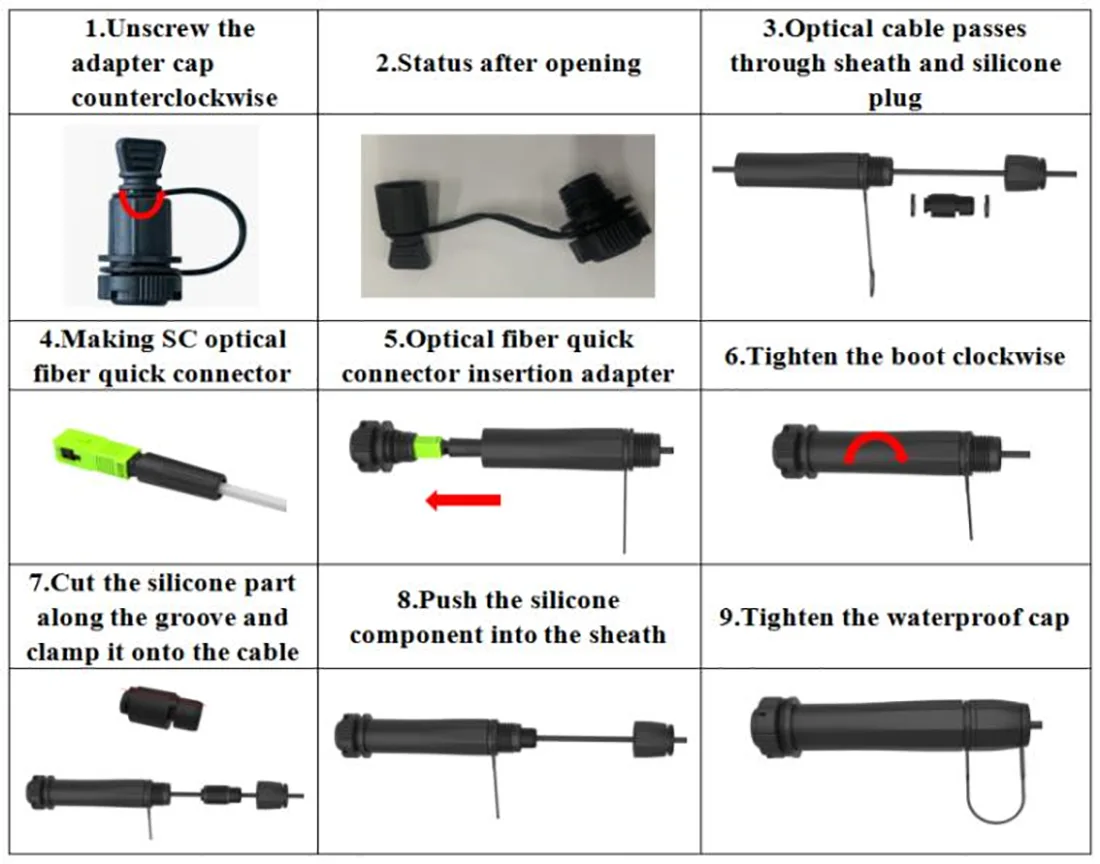

8.2 Pre-connected adapter - B（XL）

⚫ Insert the SC optical fiber connector plug through the loose parts in turn, and then plug it into the adapter;

⚫ Install XL pre connected adapter sheath on adapter with plastic key;

⚫ Insert the plug of the snap spring into the sheath;

⚫ The cable clamp shall be installed and the line shall be close to the plug;

⚫ Screw the leather cable clamp seat cap on the sheath clockwise

8.3 Pre-connected adapter - C

⚫ Push the sliding ring on the optical fiber preformed plug in the direction of the arrow to remove the dust cap; press the button to take out the dust cap on the adapter in the direction of the arrow.

⚫ Align the body of the preformed plug with the adapter buckle until it is fastened. Connect the two dust covers in the same way.

⚫ The installed prefabricated plug pushes the sliding ring to release the buckle, and then pull the main body backward to separate it.

8.4 Pre-connected adapter - D

⚫ Turn the pre connected plug anti clockwise and open the pre connected plug and dust cover in the direction of the arrow.

⚫ Connect the pre connected plug D and the pre connected adapter D in the direction of the arrow, and rotate the plug clockwise to fix it.

8.5 Pre-connected adapter - E ( A )

⚫ Turn the pre connected plug anti clockwise and open the pre connected plug and dust cover in the direction of the arrow

⚫ Connect the pre connected plug E and the pre connected adapter E in the direction of the arrow, and rotate the plug clockwise to fix it.

8.6 Pre-connected adapter -F

⚫ Insert the SC optical fiber connector plug through the loose parts in turn, and then plug it into the adapter;

⚫ Install XL pre connected adapter sheath on adapter with plastic key;

⚫ Insert the plug of the snap spring into the sheath;

⚫ The cable clamp shall be installed and the line shall be close to the plug;

⚫ Screw the leather cable clamp seat cap on the sheath clockwise.

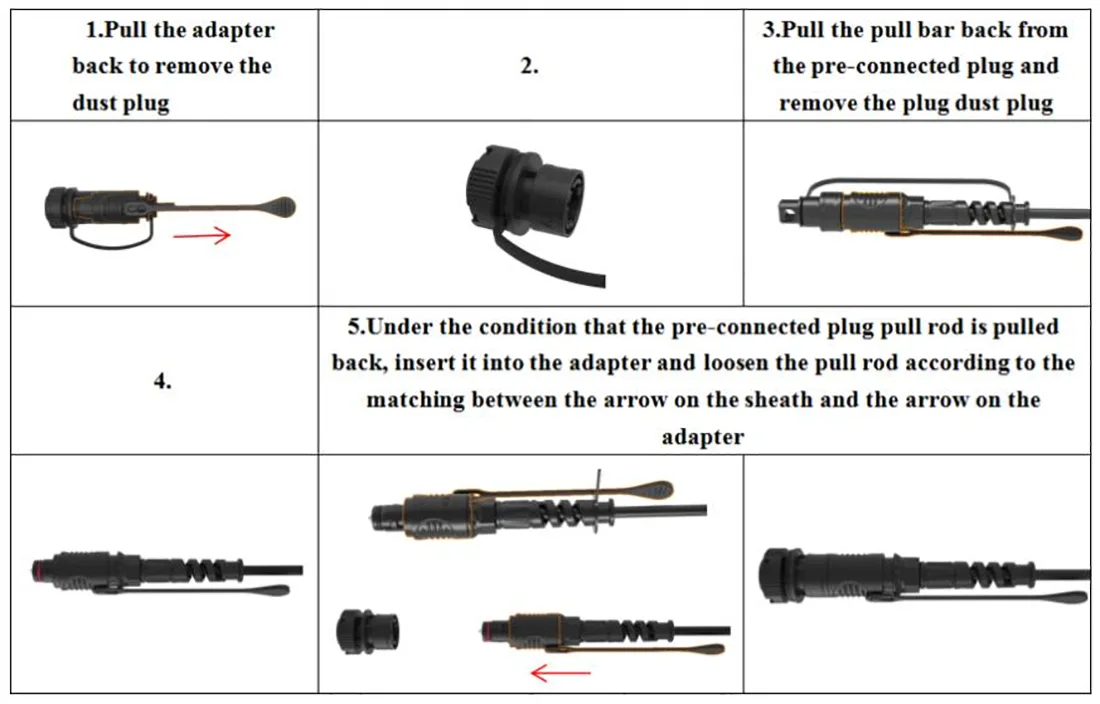

8.7 Pre-connected adapter - G

8.8 Pre-connected adapter - H-1

8.9 Pre-connected adapter - J-1

9. Package
