Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

1. General

1.1 Description

Pre-connectorized optical distribution box as the most advanced FTTX network distribution node equipment, provide quick and reliable connection, good protection and management for the FTTX network.

1.2 Standards Comply

The production offered are designed, manufactured and tested according to the standards as follows:

1.3 Applications Environment

2. Characteristics

1. The bottom shell and upper cover are welded by hot plate welding, which is not detachable.

2. Material: PP.

3. Moisture proof, waterproof, dust-proof, anti-aging.

4. Protection level up to IP68.

5. The interior is equipped with 1x2 FBT splitter+ 1x8 PLC splitter or 1x8 PLC splitter.

6. Installation method: pole-mounted, aerial-mounted, wall-mounted.

7. It can be equipped with drop cable storage tray to meet the storage of 30 meters 5mm round cable.

3. Specifications

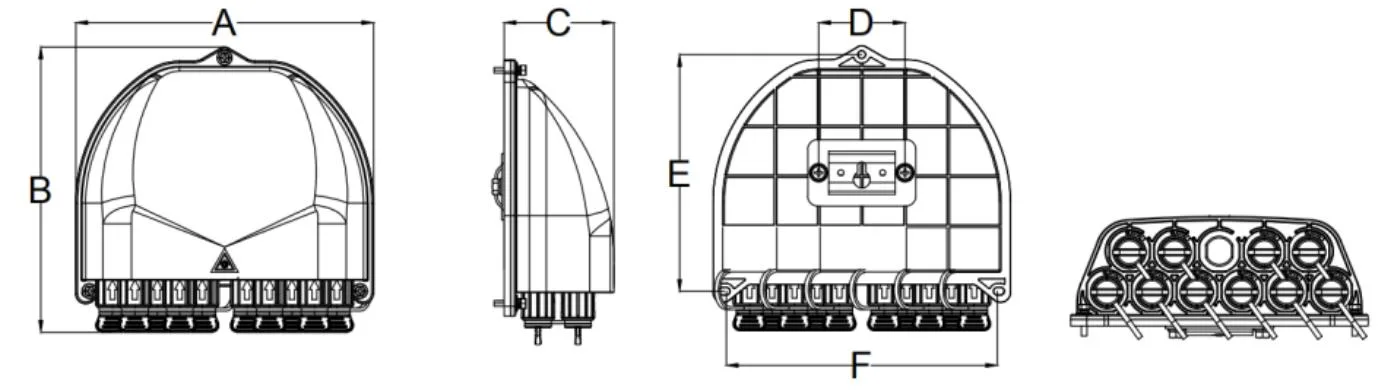

3.1 Mechanical specifications

4. Configuration

Main optical parameters

The optical parameters shown in the table above are default values, and can be customized according to requirements.

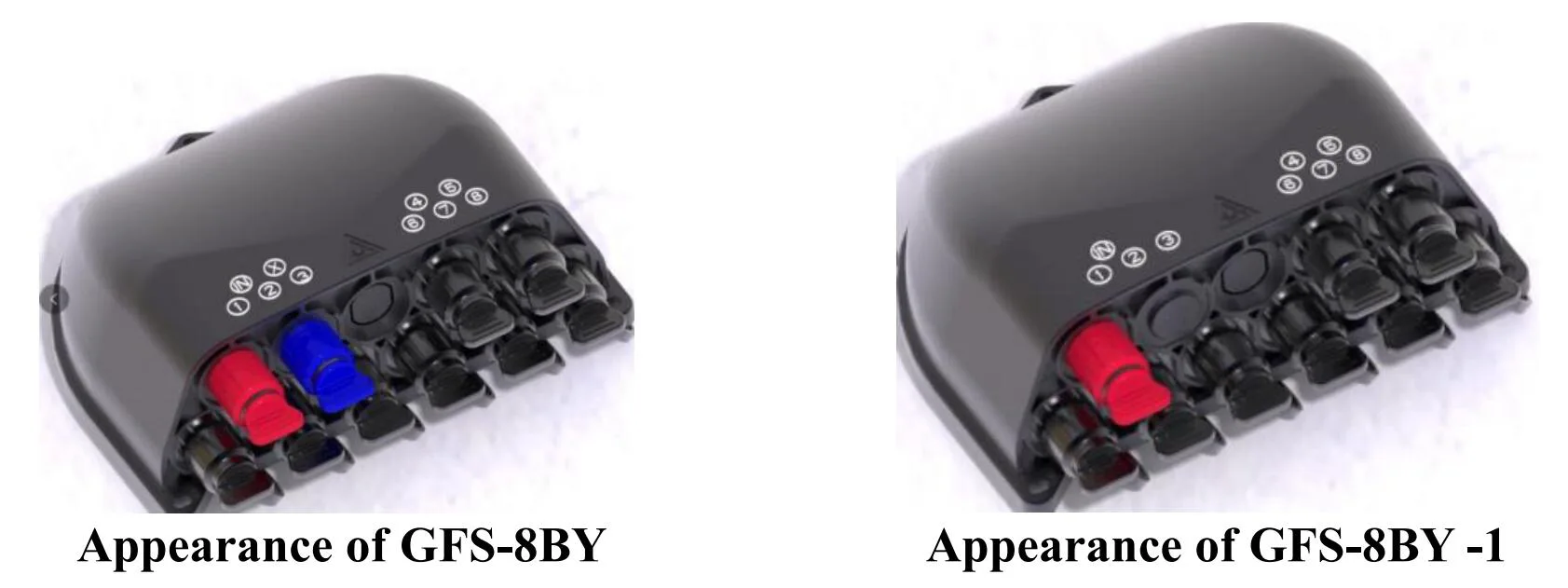

5. Product Picture

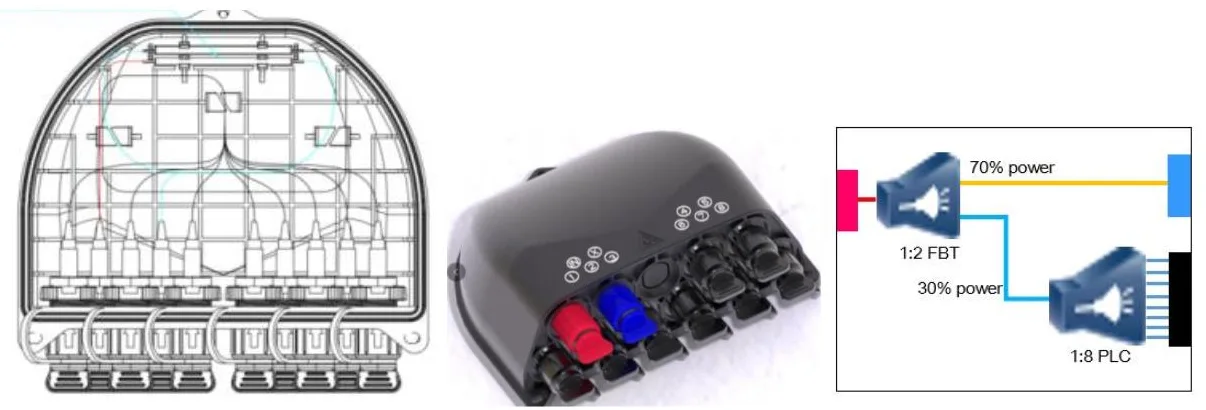

5.1 Product cable ways:

PLC on top, FBT on bottom

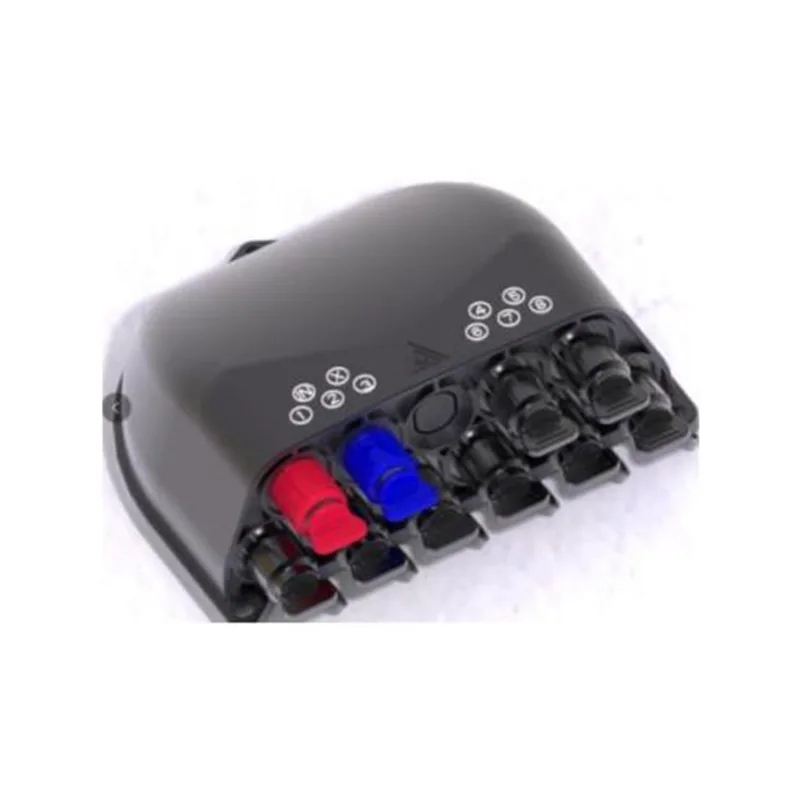

GFS-8BY(1 * 2 FBT + 1 * 8 PLC Splitter Cable Ways)

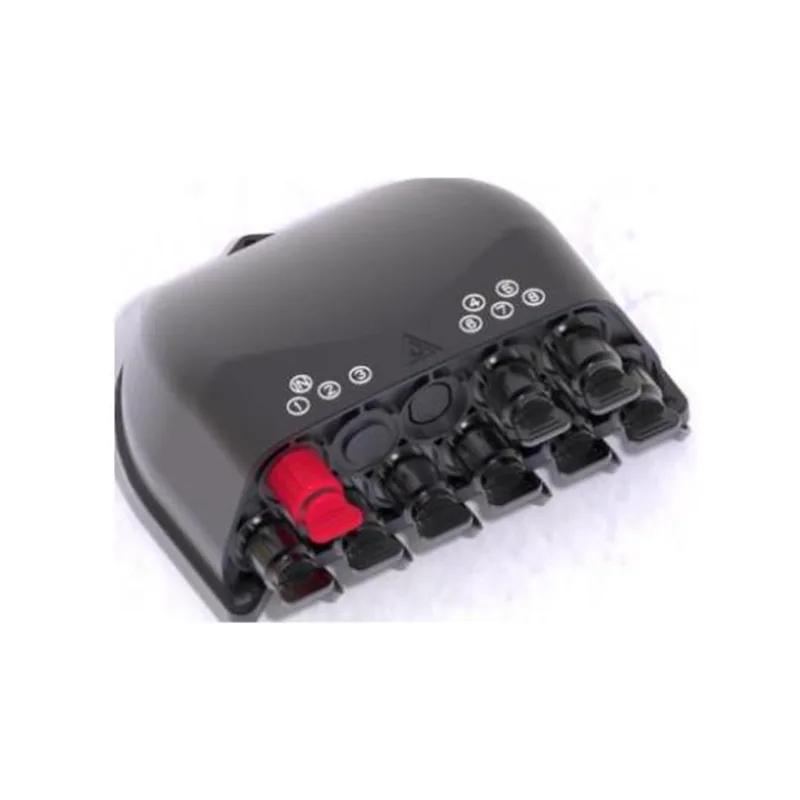

GFS-8BY-1(1 * 8 PLC Splitter Cable Ways)

5.2 Configuration

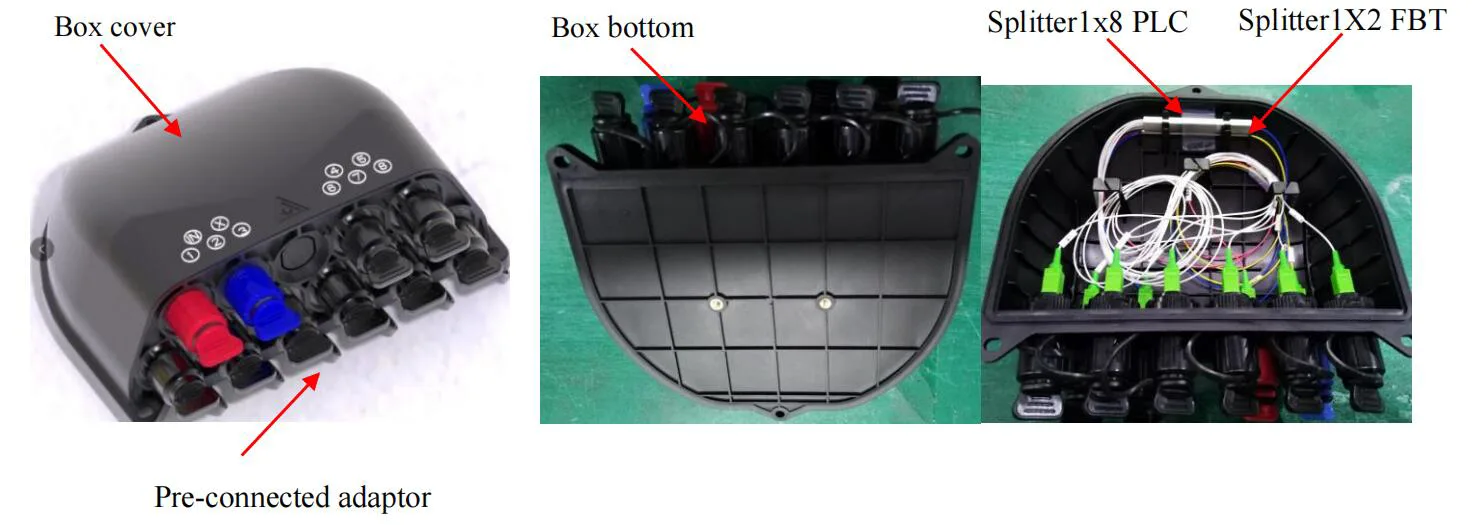

5.2.1 Main parts

5.2.2 Accessories

No.	Part name	Reference picture	Unit	Quantity	Remark
1	Users’manual	/	pcs	1	EN
2	Splitter test report	/	pcs	1	EN
3	Wall-mounted kit		set	1	Optional as customer’s request

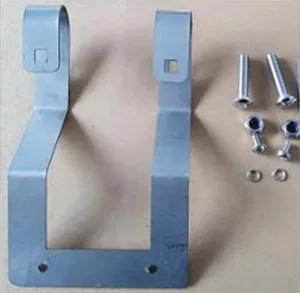

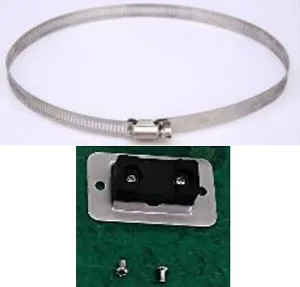

4	Pole-mounted kit		set	1	Optional as customer’s request
5	Aerial-mounted kit		set	1	Optional as customer’s request

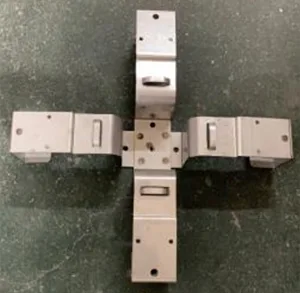

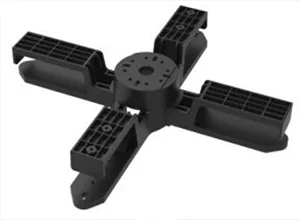

6	Drop cable storage tray		set	1	Optional as customer’s request
7	Drop cable storage tray		set	1	Optional as customer’s request

6. Environmental characteristics

This product complies with the RoHS environmental protection directive, and the content of lead, cadmium, mercury, hexavalent chromium, polybrominated biphenyl (PBB) (PBB) and polybrominated diphenyl ether (PBDE) does not exceed the limit.

7. Installation

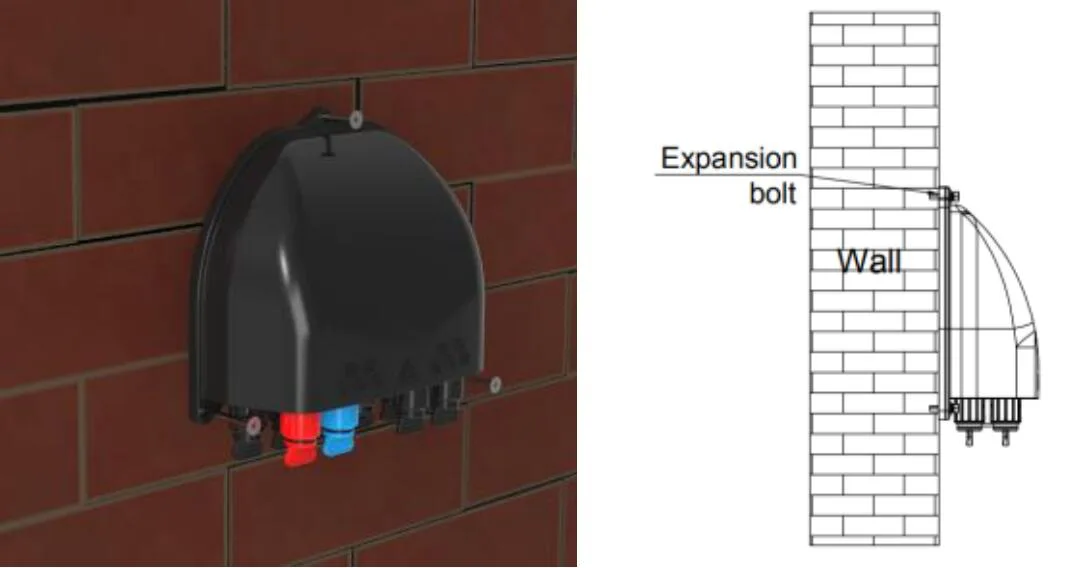

7.1. Wall-mounted installation

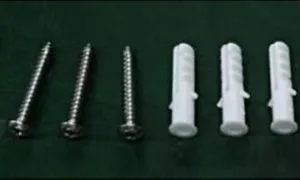

Drill 3 holes in the wall according to the dimension, place the expansion plug Φ7.5*40, place the box to match up the holes and use screws to fasten.

Wall mounted installation

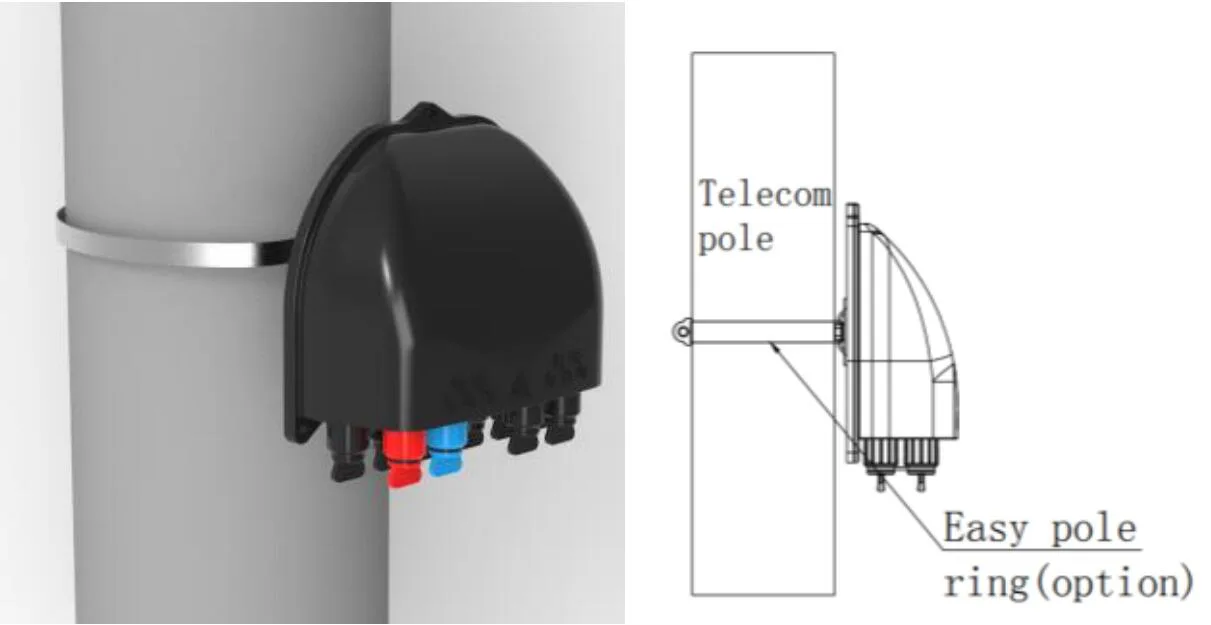

7.2. Pole-mounted installation

Pass the hoop ring through the slot of the back plate and fix it on the telecommunication pole

Pole mounted installation

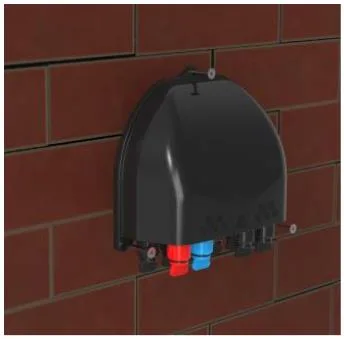

7.3. Wall-mounted installation (With drop cable storage tray)

Drill 4 holes in the wall according to the dimension of the drop cable storage tray mounting hole, place the expansion plug Φ 8 * 40, place the box to match up the holes, and fasten with the screws.

Wall-mounted installation (With drop cable storage tray

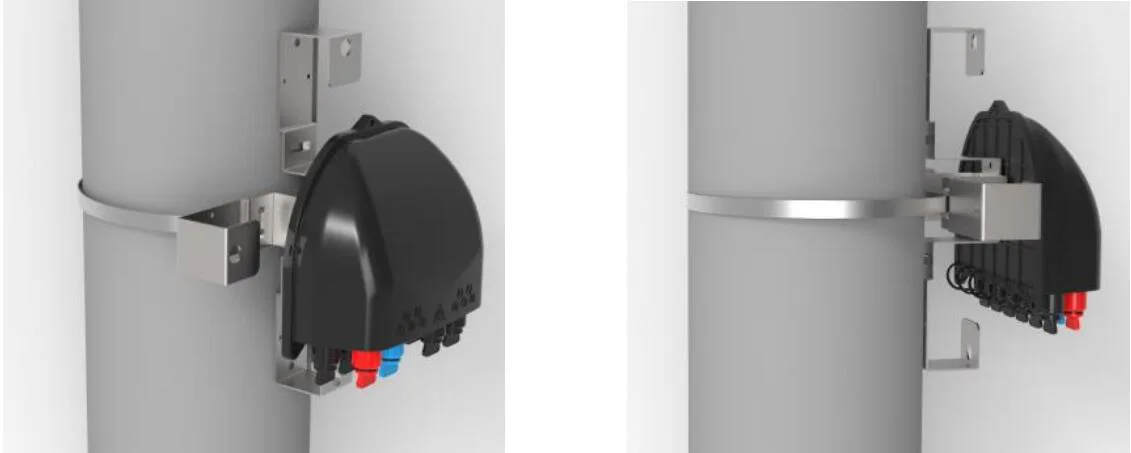

7.4. Pole-mounted installation (With drop cable storage tray)

Pass the stainless steel belt through the slot of the drop cable storage tray and fix it on the pole with buckle.

Pole-mounted installation (With drop cable storage tray)

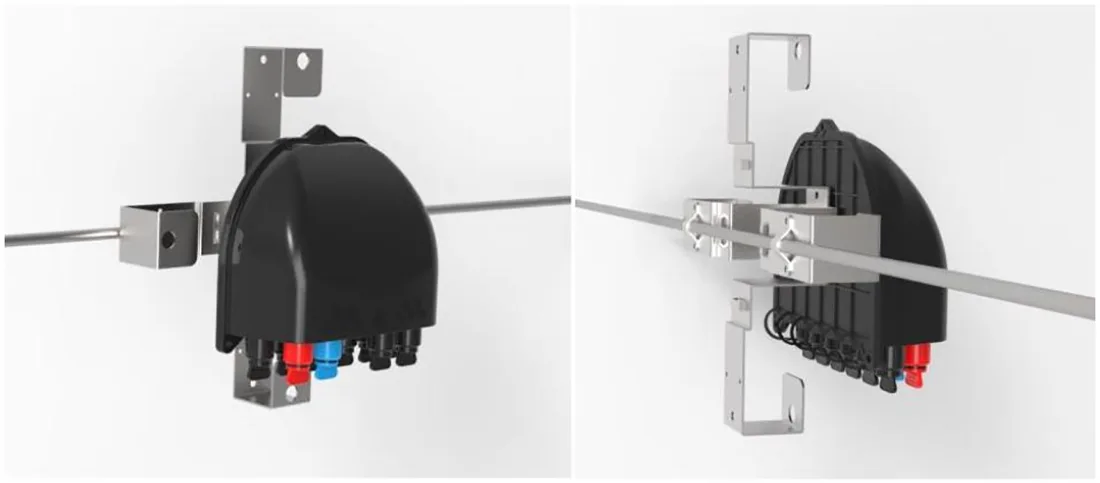

7.5. Aerial-mounted installation (With drop cable storage tray)

Use the small metal plate to fix the distribution box to the messenger.

Aerial-mounted installation (With drop cable storage tray)

8. Connector operation

8.1 Pre-connected adapter - A（ E）

⚫ Rotate the arrow part of fiber connector counterclockwise and take out the dust cap.

⚫ The arrow part of fiber connector is above, insert fiber connector into the socket and then rotate the arrow part clockwise.

8.2 Pre-connected adapter - B（XL）

⚫ Insert the SC optical fiber connector plug through the loose parts in turn, and then plug it into the adapter;

⚫ Install XL pre connected adapter sheath on adapter with plastic key;

⚫ Insert the plug of the snap spring into the sheath;

⚫ The cable clamp shall be installed and the line shall be close to the plug;

⚫ Screw the leather cable clamp seat cap on the sheath clockwise

8.3 Pre-connected adapter - C

⚫ Push the sliding ring on the optical fiber preformed plug in the direction of the arrow to remove the dust cap; press the button to take out the dust cap on the adapter in the direction of the arrow.

⚫ Align the body of the preformed plug with the adapter buckle until it is fastened. Connect the two dust covers in the same way.

⚫ The installed prefabricated plug pushes the sliding ring to release the buckle, and then pull the main body backward to separate it.

8.4 Pre-connected adapter - D

⚫ Turn the pre connected plug anti clockwise and open the pre connected plug and dust cover in the direction of the arrow.

⚫ Connect the pre connected plug D and the pre connected adapter D in the direction of the arrow, and rotate the plug clockwise to fix it.

8.5 Pre-connected adapter - E ( A )

⚫ Turn the pre connected plug anti clockwise and open the pre connected plug and dust cover in the direction of the arrow

⚫ Connect the pre connected plug E and the pre connected adapter E in the direction of the arrow, and rotate the plug clockwise to fix it.

8.6 Pre-connected adapter -F

⚫ Insert the SC optical fiber connector plug through the loose parts in turn, and then plug it into the adapter;

⚫ Install XL pre connected adapter sheath on adapter with plastic key;

⚫ Insert the plug of the snap spring into the sheath;

⚫ The cable clamp shall be installed and the line shall be close to the plug;

⚫ Screw the leather cable clamp seat cap on the sheath clockwise.

9. Package
