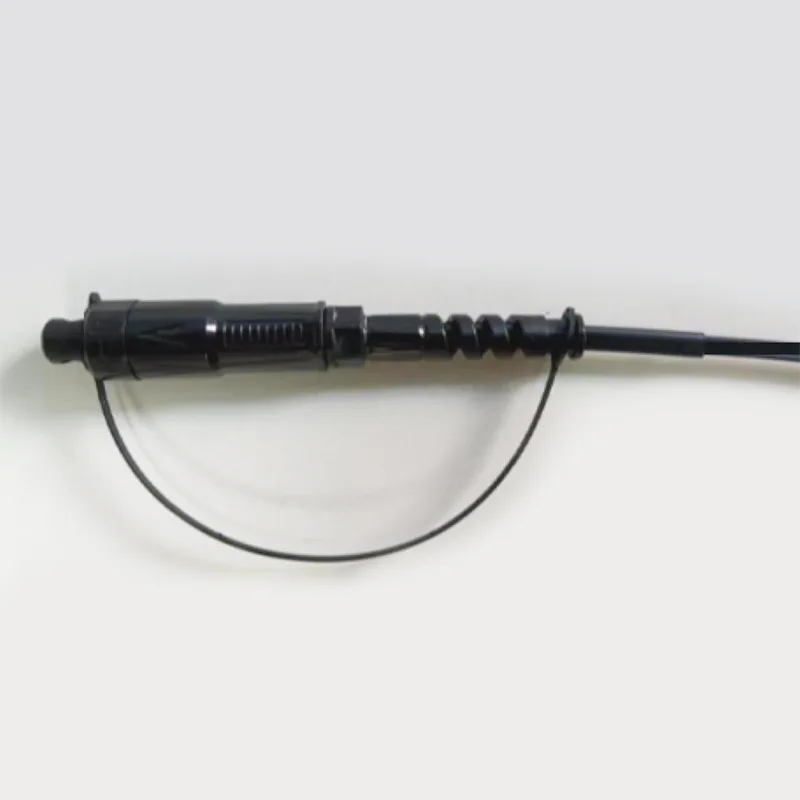

Ф5mm Waterproof Round Cable Mini SC/APC Connector Optical Patch Cord

Orientalfiber is a manufacturer and supplier specializing in Ф5mm Waterproof Round Cable Mini SC/APC Connector Optical Patch Cord, with our own factory. Contact us for competitive pricing and professional quotes.

Send Inquiry

Product Description

Our high quality Ф5mm Waterproof Round Cable Mini SC/APC Connector Optical Patch Cord are all made in China. Orientalfiber is a professional the Ф5mm Waterproof Round Cable Mini SC/APC Connector Optical Patch Cord manufacturer and supplier in China. You can buy them from our factory. For more information, contact us now.

Application:

● FTTX/FTTH Systems

● Ethernet Applications

● CATV Links

● Optical Signal Distribution

● Passive Optical Networks (PON)

● Backbone, Horizontal and riser applications

● Preterminated Drop Terminal Boxes

● Outdoor Areas; Harsh Environment

Features:

● Low insertion loss, high return loss.

● Good in repeatability and exchangeability.

● 100% Insertion, Return Loss, End Face and.

● Interference inspection.

● Excellent mechanical endurance.

● Complying with Telcordia GR-326-Core.

● Ensures high performance and reliability in the management of optical cabling.

● Fast and easy installation and reconfiguration.

● Simple handling, no need for special tool.

● IP68 Waterproof.

Technical Specification:

Constructions	Unit	Descriptions
Fiber Count		Simplex
Wavelength	nm	1310/1550
Insertion Loss	dB	≤0.30
Return Loss	dB	≥ 60
Connection type		SC/APC
Ferrule		Ceramic
Connection cycles		500
Cable Jacket Color		Black
Cable Outer Diameter	mm	5.0±0.2
Fiber Mode		Single mode: G657A2
Cable Jacket Material		HDPE
Cable weight	kg/km	35（approx）
Printing contents		Customizable
Length	m	30 、50 、 100 、 150 、200、250 、300 、400、500 or Customizable (Tolerance: ±1.0m)
Connector type		Input: Accord H Optic Mini SC
Connector type		Output: Accord Conventional SC/APC
Traction (axial between cable and connector)	N	200
Waterproof Grade		Input: IP68
Operating Temperature	℃	-40°C ~ +70℃
Storage Temperature	℃	-40°C ~ +70℃

Cable Construction:

Ф5mm Waterproof Round Cable Mini SC~SC/APC Connector Optical Patch Cord

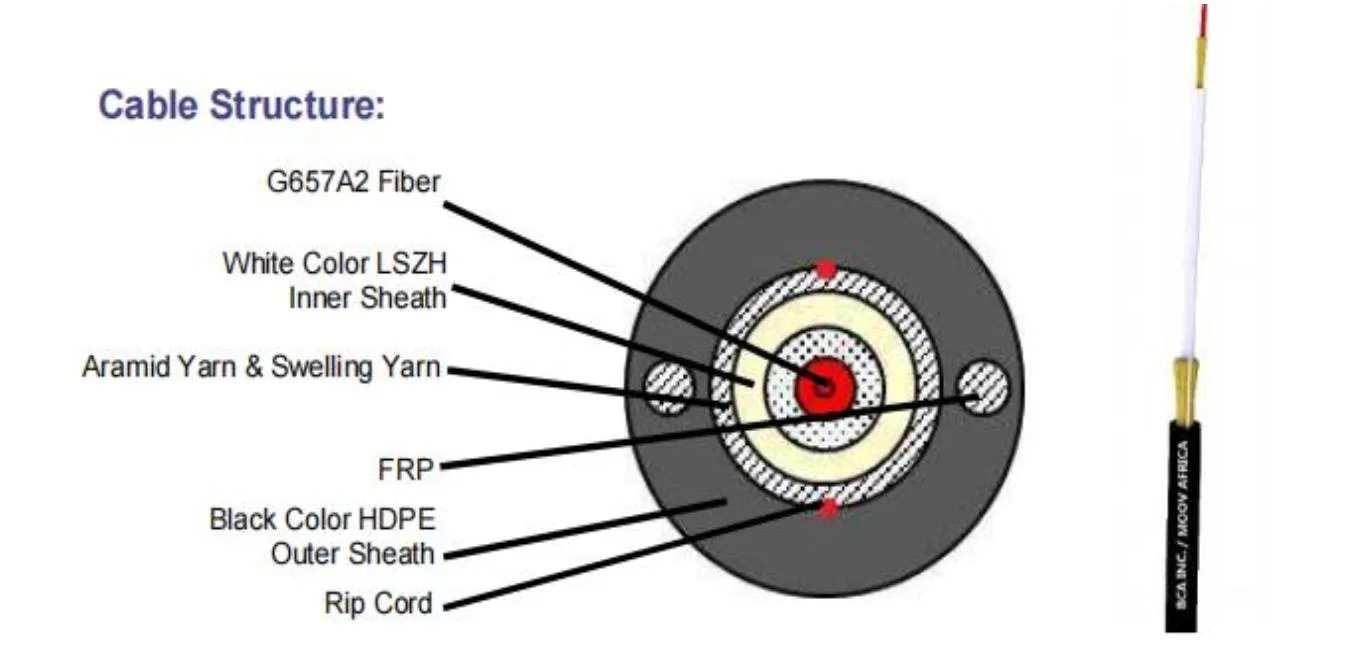

Cable Structure:

Item	Contents	Specifications
Tight buffer fiber	Number	1
	Type	G.657A2
	Material	LSZH
	Tight buffer Color	White
	Diameter (mm)	0.90±0.05
Strength member 1	Material	Aramid yarn
Inner sheath	Diameter (mm)	2.8±0.2
	Thickness(mm)	0.25±0.1
	Color	White
	Material	LSZH
Strength member 2	Material	FRP
Strength member 2	Quantity	0.5*2
Strength member 3	Material	Aramid yarn + Water blocking glass yarn
Rip cord	Specification and color	600D Red
Outer Sheath	Material	HD
	Diameter (mm)	5.0±0.2
	Thickness(mm)	1.1±0.1
	Color	Black
Cable weigth	Kg/km	35±3
Tension	N	400 (Long Term)
Tension	N	800 (Short Term)
Crush	N/10cm	200 (Long Term)
Crush	N/10cm	1000 (Short Term)
Min. Bend Radius	mm	10xD (Static)
Min. Bend Radius	mm	20xD (Dynamic)
Operating temperature range:		-20℃ to +60℃
Storage / Transport temperature range:		-20℃ to +60℃

Optical Fiber:

All characteristics of the cable fiber (fiber of finished cable) shall be, at least, in accordance with the ITU-T recommendation G.657A2 and shall be as follows.

Item	Specification
Fiber type	Single mode
Fiber material	Doped silica
Attenuation coefficient @ 1310 nm @ 1383nm	≤ 0.36 dB/km ≤ 0.36 dB/km
@ 1490nm @ 1550 nm @ 1625nm After cable formation @ 1310 nm @ 1550nm	≤ 0.25 dB/km ≤ 0.22 dB/km ≤ 0.25 dB/km ≤ 0.36 dB/km ≤ 0.22 dB/km
Cable cut-off wavelength	≤ 1260 nm
Zero-dispersion wavelength	1300 ~ 1324 nm
Zero-dispersion slope	≤ 0.092 ps/(nm2.km)
PMD @ 1550 nm	≤0.1 ps/km1/2
Chromatic dispersion @ 1285~ 1330 nm @ 1271 ~ 1360 nm @ 1550 nm @ 1625nm	≤3 ps/(nm. km) ≤5.3 ps/(nm. km) ≤18.0 ps/(nm. km) ≤22 ps/(nm. km)
Mode field diameter @ 1310 nm	8.5-9.3um
Core / Clad concentricity error	≤ 0.5 um
Cladding diameter	125.0 ± 0.7 um
Cladding non-circularity	≤5%
Primary coating diameter	242 ± 7 um
Concentricity Primary Coating / Coating	≤10 µm
Coating non-circularity	≤0.7%
Attenuation with Cable bending Loss 1 turn 1 Mandrel 7.5mm 10 turns 1 Mandrel 15mm	1550nm ≤ Δ 0.10 dB/km 1550nm ≤ Δ 0.03 dB/km
