● FTTX/FTTH Systems
● Ethernet Applications
● CATV Links
● Optical Signal Distribution
● Passive Optical Networks (PON)
● Backbone, Horizontal and riser applications
● Preterminated Drop Terminal Boxes
● Outdoor Areas; Harsh Environment
● Low insertion loss, high return loss.
● Good in repeatability and exchangeability.
● 100% Insertion, Return Loss, End Face and.
● Interference inspection.
● Excellent mechanical endurance.
● Complying with Telcordia GR-326-Core.
● Ensures high performance and reliability in the management of optical cabling.
● Fast and easy installation and reconfiguration.
● Simple handling, no need for special tool.
● IP68 Waterproof.
| Constructions | Unit | Descriptions |
| Fiber Count | Simplex | |
| Wavelength | nm | 1310/1550 |
| Insertion Loss | dB | ≤0.30 (Typical: 0.15) |
| Return Loss | dB | ≥ 55 |
| Connection type | SC/APC | |
| Ferrule | Ceramic | |
| Connection cycles | 500 | |
| Cable Jacket Color | Black | |
| Cable Outer Diameter | mm | 5.0±0.2 |
| Fiber Mode | Single mode: G657A1 or G657A | |
| Cable Jacket Material | HDPE | |
| Cable weight | kg/km | 22（approx） |
| Printing contents | Customizable | |
| Length | m |
50 or Customizable (Tolerance: ±0.5m) |

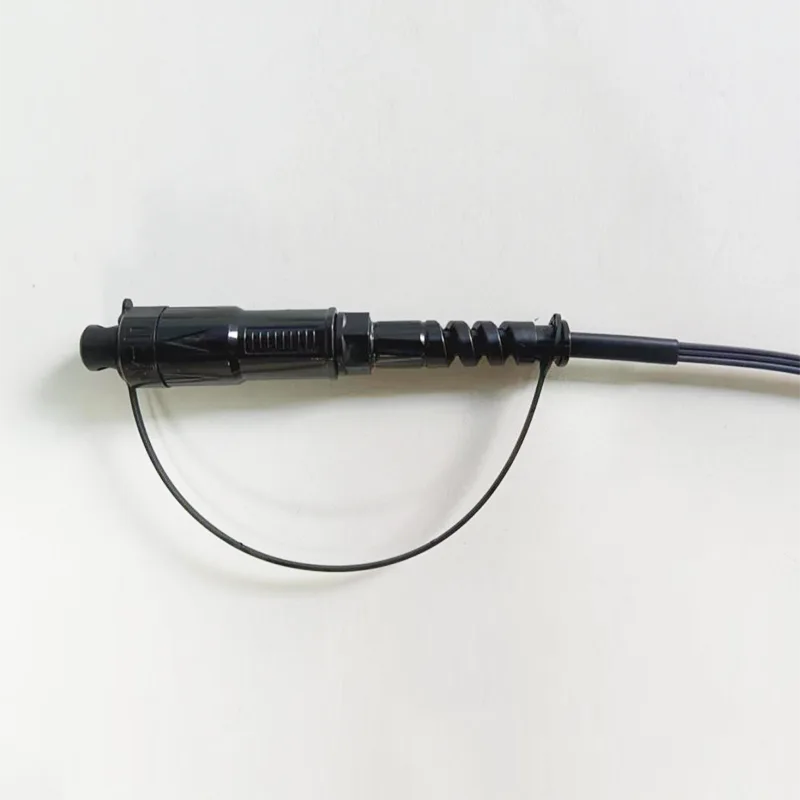

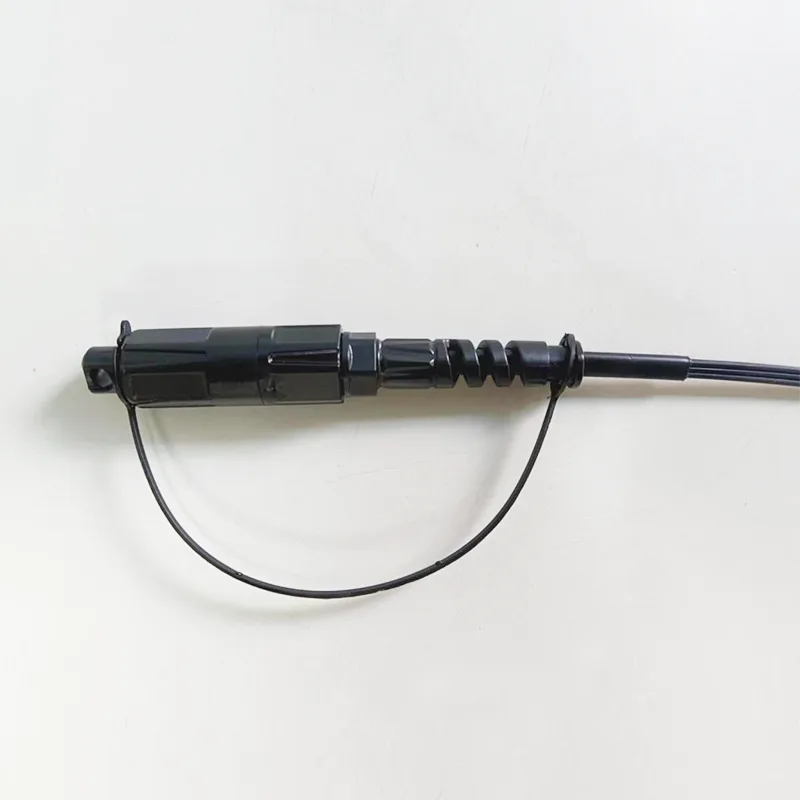

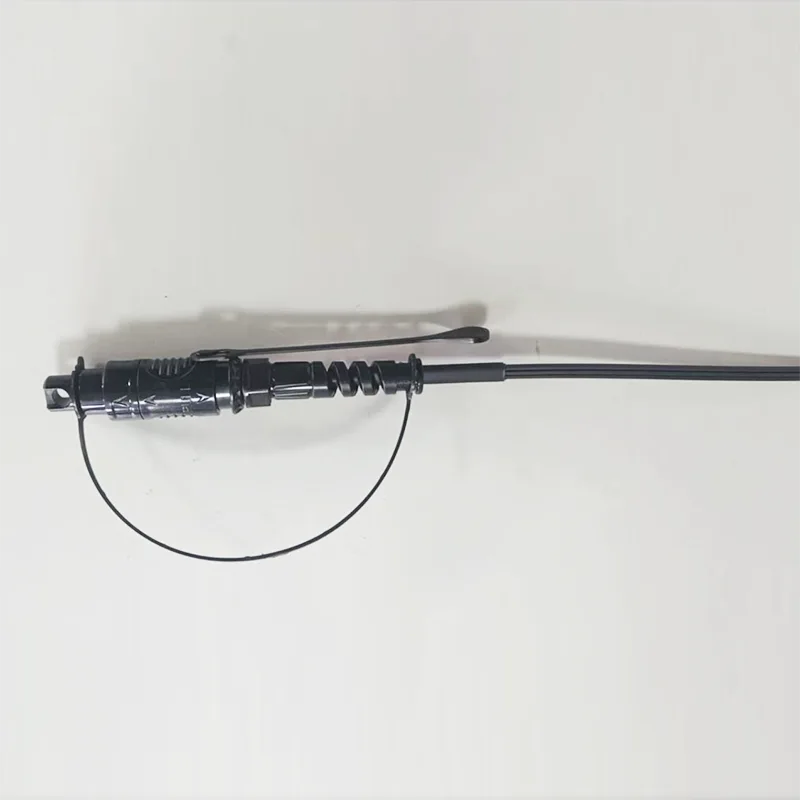

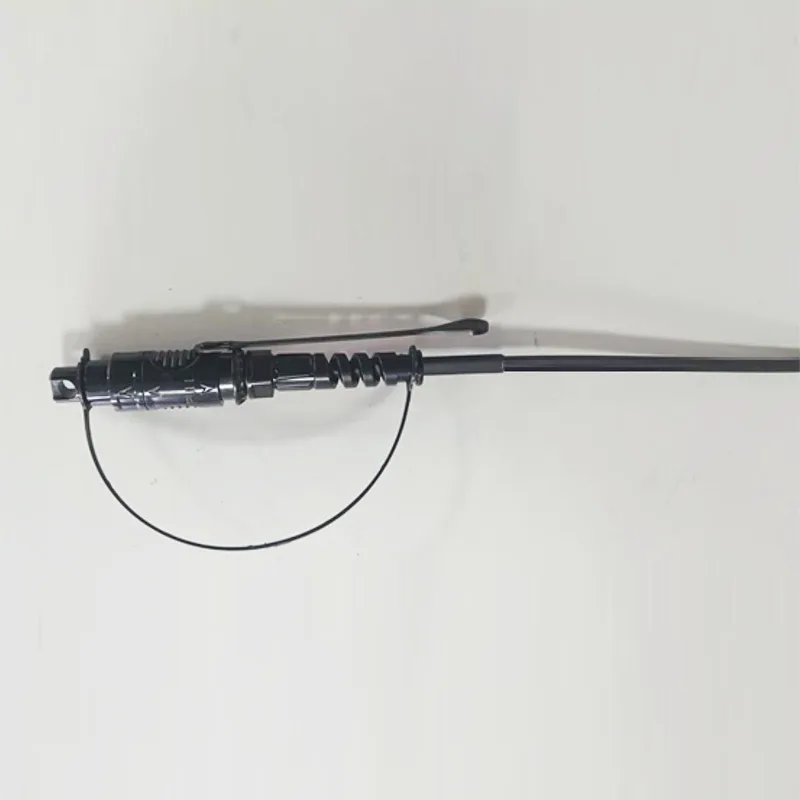

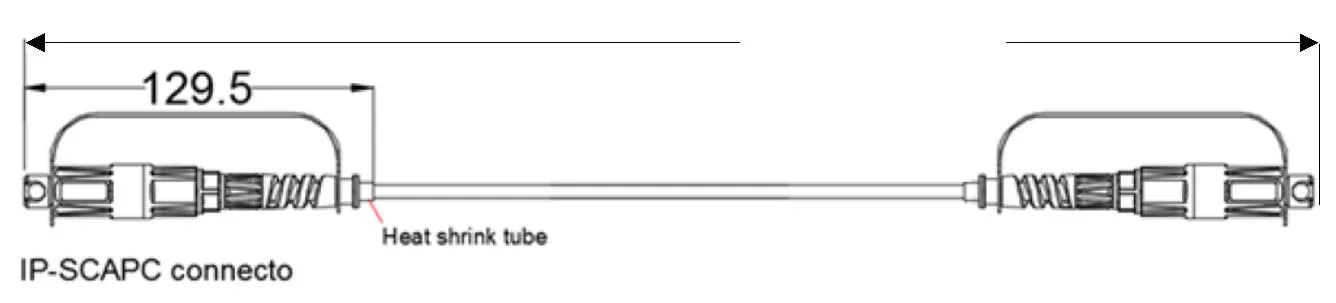

| Connector type | Input：Accord H Optic SC/APC | |
| Output： Accord H Optic SC/APC | ||
|
Traction (axial between cable and connector) |
N | 200 |
| Waterproof Grade | IP68 | |
| Operating Temperature | ℃ | -25°C ~ +70℃ |
| Storage Temperature | ℃ | -25°C ~ +70℃ |

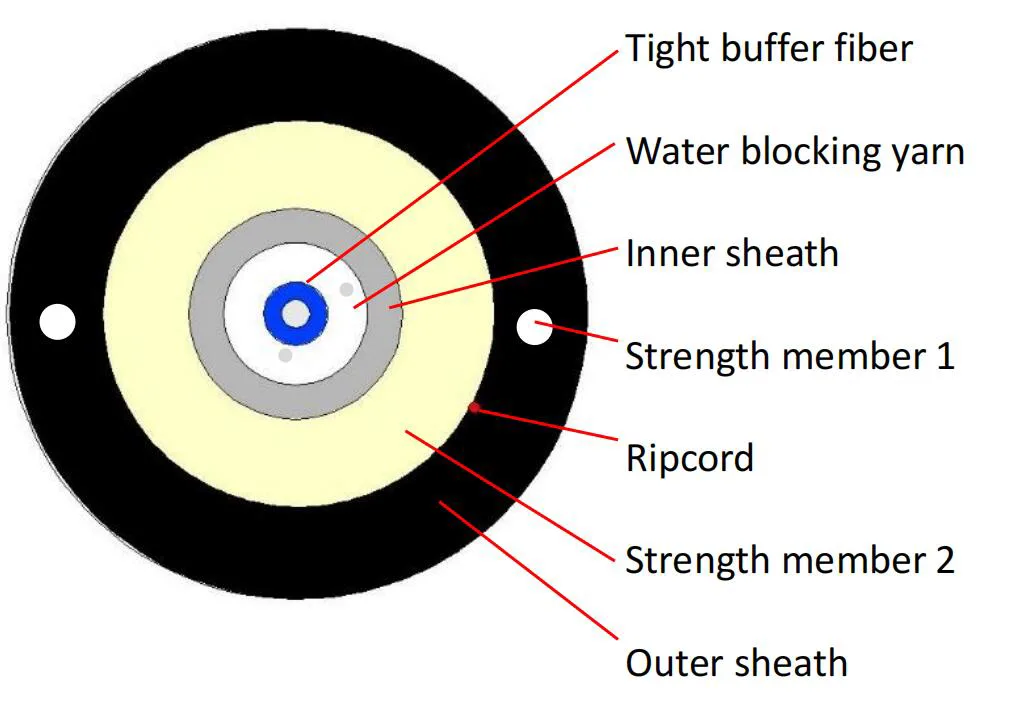

| Item | Contents | Specifications |
| Tight buffer fiber | Number | 1 |
| Type | G.657A1 or G.657A2 | |
| Color | Blue | |
| Material | LSZH | |
| Diameter (mm) | 0.90±0.05 | |
| Inner sheath | Diameter (mm) | 2.8±0.2 |
| Thickness(mm) | 0.25±0.05 | |
| Color | White | |
| Material | Lszh | |
| Strength member 1 | Material | Glued FRP |
| Quantity | 0.5*2 | |
| Strength member 2 | Material | Aramid yarn + Water blocking glass yarn |
| Rip cord | Number | 1 |
| Color | Red | |
| Sheath | Material | HDPE |
| Diameter (mm) | 5.0±0.2 | |
| Thickness(mm) | 1.1±0.1 | |
| Color | Black | |
| Cable weigth | Kg/km | 22±3 |
| Tersile (N) |
Long term: 400N Short term: 800 N |
|
| Min. Bending Radius |
15xD (Static); 30xD (Dynamic) |
|
| Operating temperature range: | ℃ | -25 ℃ to +70℃ |
| Storage / Transport temperature range: | ℃ | -25℃ to +70℃ |
| Installation temperature range: | ℃ | -25℃ to +70℃ |
