E2000/APC 0.9mm Optical Fiber Pigtail

Features:● Available with 900um tight buffered and 2.0, 3.0mm fibers● Highly flexible for ease of routing● High precision connector● UPC APC end face polish● LC, MU, SC, FC, ST,E2000,all single fiber connector● Customized length available● 100% factory terminated and tested● ROHS CompliantApplicatio......

Send Inquiry

Product Description

Features:

● Available with 900um tight buffered and 2.0, 3.0mm fibers

● Highly flexible for ease of routing

● High precision connector

● UPC APC end face polish

● LC, MU, SC, FC, ST,E2000,all single fiber connector

● Customized length available

● 100% factory terminated and tested

● ROHS Compliant

Applications:

● Headend termination to a fiber "backbone"

● Termination of fiber rack systems

● Multi-floor deployment where select fibers are used at each floor

● Intrabuilding "backbones"

● Data center systems

General Specification:

Constructions	Descriptions	Unit
Fiber Count	1F
Fiber Mode	Single mode: G.652D
Fiber color (250um)	Transparent
Wavelength	1310/1550	nm
Insertion Loss	≤0.30	dB
Return Loss	≥55	dB
Cable Jacket Material	LSZH (Semi-tight Buffered)
Cable Jacket Color	White
Fiber tube type	Simplex
Fiber tube dia.(mm)	Φ0.9	mm
Fiber Length*1	0.6 +0.1/-0	m
Connector type	E2000/APC（Green）
Ferrule	Zirconia Ceramic
Operating Temperature	-25~+65	℃
Storage Temperature	-25~+65	℃

Note： Fiber length does not include connectors.

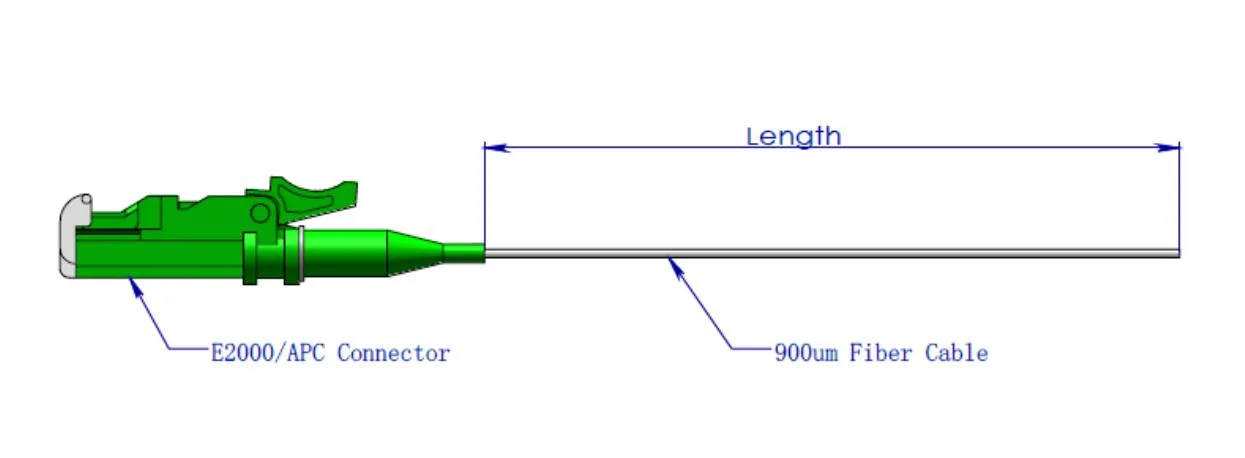

Schematic drawing:

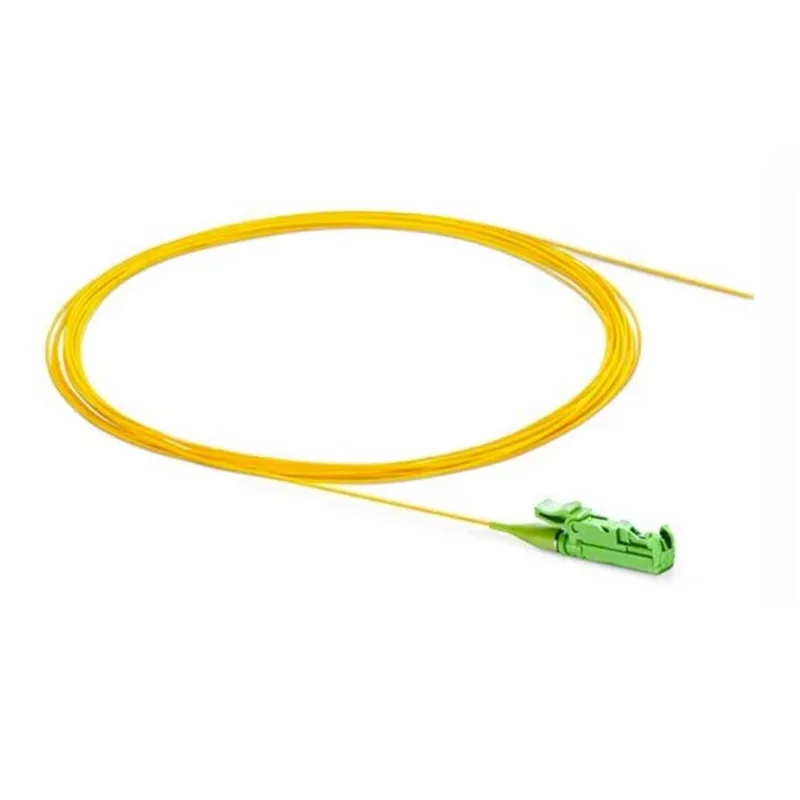

E2000/APC Optical Fiber Pigtail
