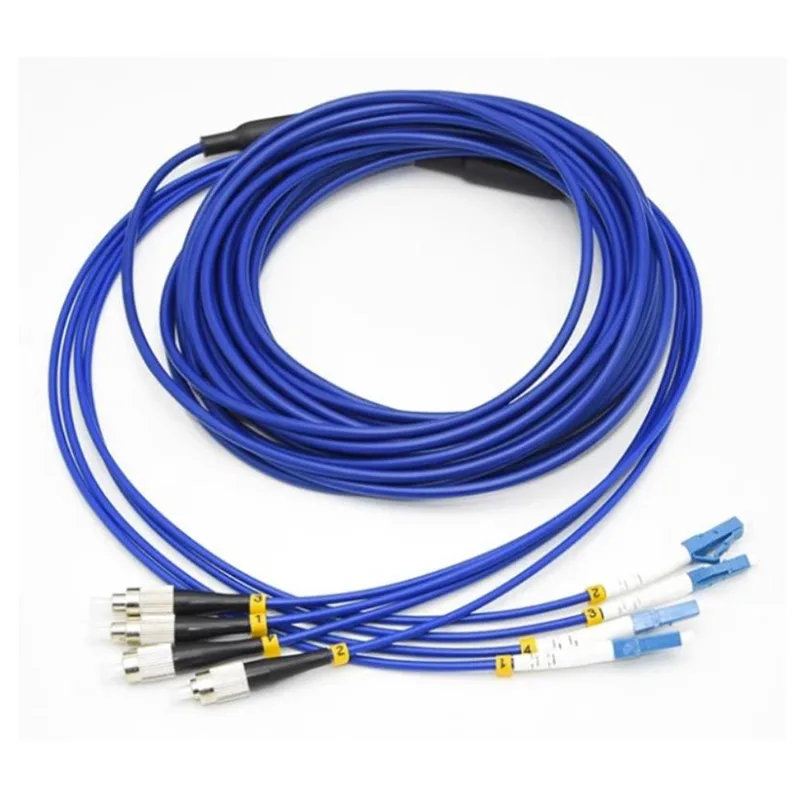

Quad FC/UPC-LC/UPC Rodent-Proof Dielectric Patch cords

Orientalfiber is a manufacturer and supplier specializing in Quad FC/UPC-LC/UPC Rodent-Proof Dielectric Patch cords, with our own factory. Contact us for competitive pricing and professional quotes.

Send Inquiry

Product Description

Our high quality Quad FC/UPC-LC/UPC Rodent-Proof Dielectric Patch cords are all made in China. Orientalfiber is a professional the Quad FC/UPC-LC/UPC Rodent-Proof Dielectric Patch cords manufacturer and supplier in China. You can buy them from our factory. For more information, contact us now.

Application:

● FTTX/FTTH Systems

● Ethernet Applications

● CATV Links

● Optical Signal Distribution

● Passive Optical Networks (PON)

● Backbone, Horizontal and riser applications

● Video, Data and Voice Services

● LAN/MAN/WAN Network

Features:

● Low insertion loss, high return loss.

● Good in repeatability and exchangeability.

● 100% Insertion, Return Loss, End Face and.

● Interference inspection.

● Excellent mechanical endurance.

● High credibility and stability.

● Soft, flexible, easy to lay.

● Complying RoHS Standard.

● Meet various requirements of market and clients.

Technical Specification:

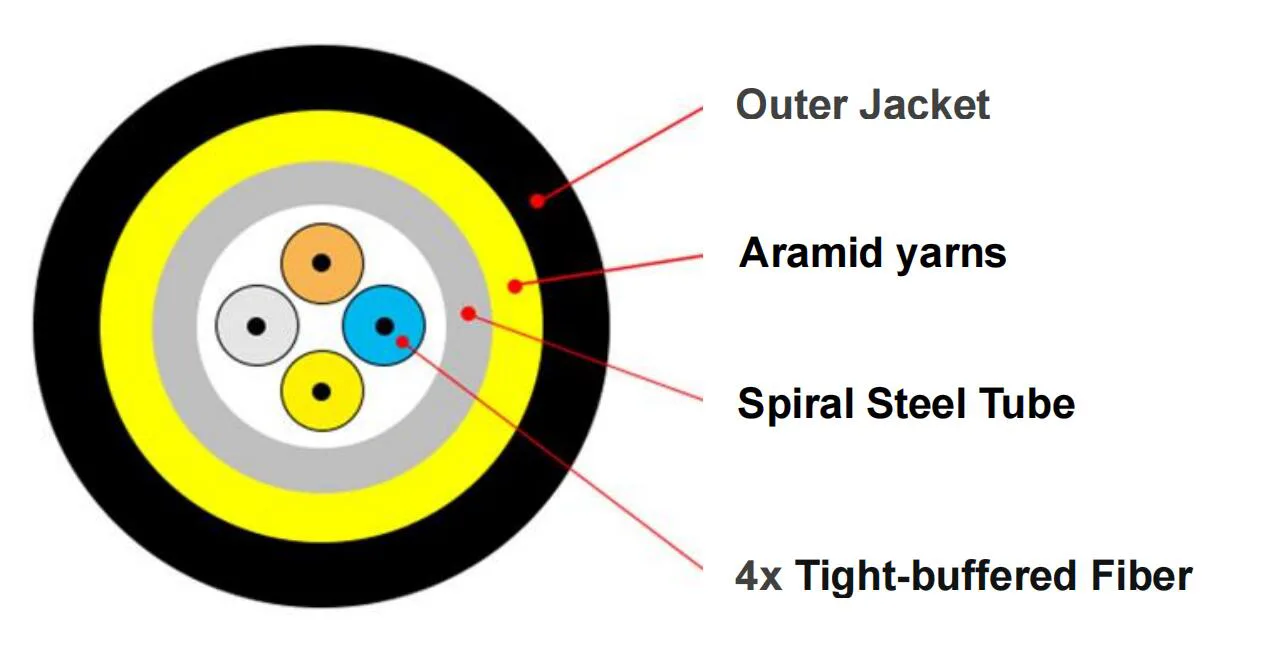

Constructions		Unit	Descriptions
Fiber Count			4F
Wavelength		nm	1310/1550
Insertion Loss		dB	≤0.25
Return Loss		dB	≥50 (UPC)
Cable Jacket Color			Yellow
Cable Jacket Material			LSZH
Cable Outer Diameter		mm	Φ5.0 ±0.2

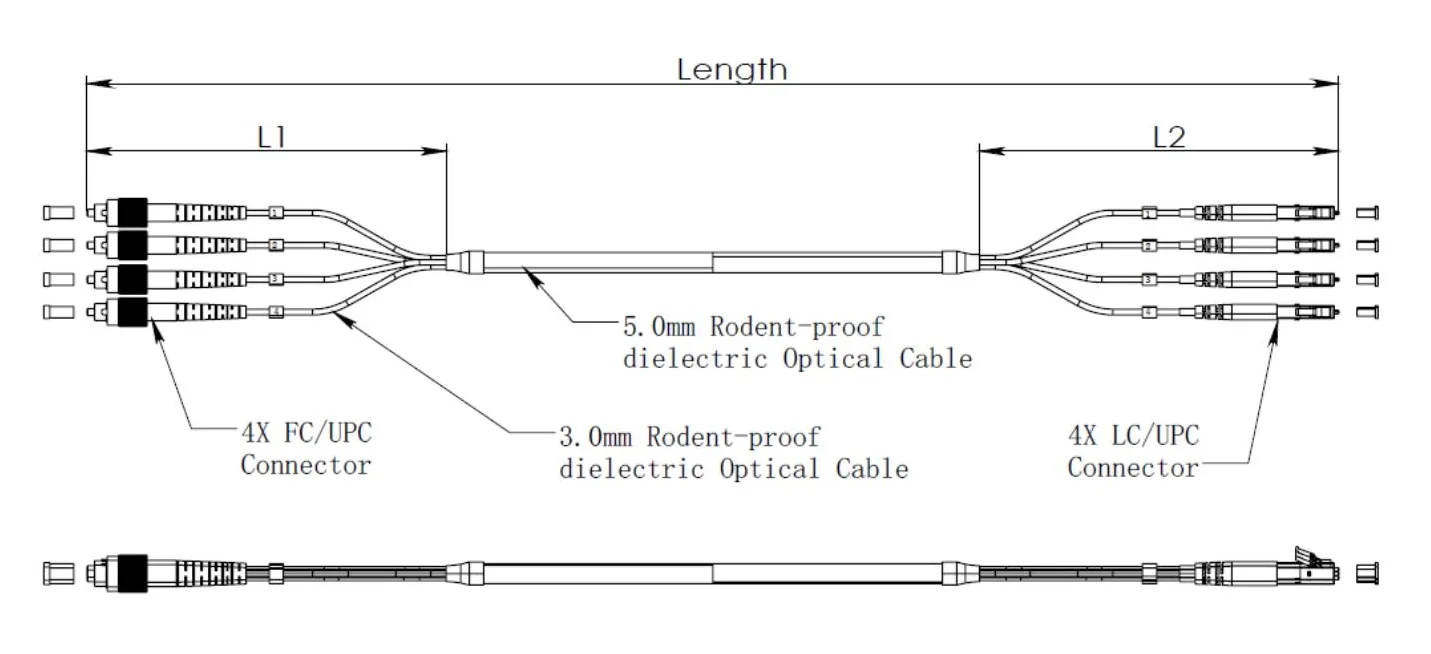

Length	L	m	5.0 +0.3/-0 10 +0.5/-0 20 +0.5/-0 30 +0.5/-0 50 +0.5/-0
	L1	cm	40~70
	L2	cm	40~70
Connector type			LC/UPC (White Boots) FC/UPC (Black Boots)
Fiber Mode			Single mode: G652D
Tensile strength		N	Short term: 800N
Tensile strength		N	Long term: 400N
Compression resistant strength			≥3000N/100MM
Minimal Bending radius		D	≥10D
Printing contents			5.0mm OPTICAL CABLE SM(G652D) 4F LZSH xxxxM
Polarity			1-1 、2-2 、3-3 、4-4
Operating Temperature		℃	-20°C ~ +70℃
Storage Temperature		℃	-40℃ ~ +85℃
