Three-in-one Pre-terminated Outdoor Connector

The outdoor pre-connectorizd connector is a convenient outdoor pre-connectorized solutio. The connector is pre-installed onto the outdoor cable in factory, so the link loss can be lowethan traditional deployment way. lt enhances the stability and reliability of optical link ancreduces the implementation time and cost, providing better solution for outdoor cable.

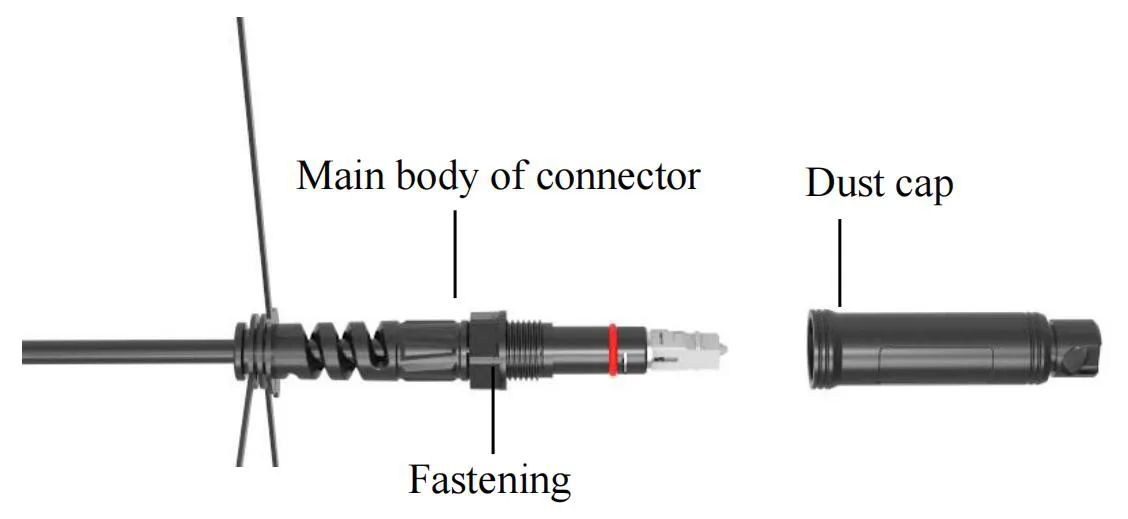

Figure 1 The details of J connector

Feature

⚫ Suitable for various types of connectors

⚫ Convenient operation, quick installation

⚫ Excellent mechanical properties that meet tensile strength

⚫ Protection level: IP68

⚫ Excellent anti-UV, anti-corrosion performanc

⚫ Support aerial and underground installation

Specification

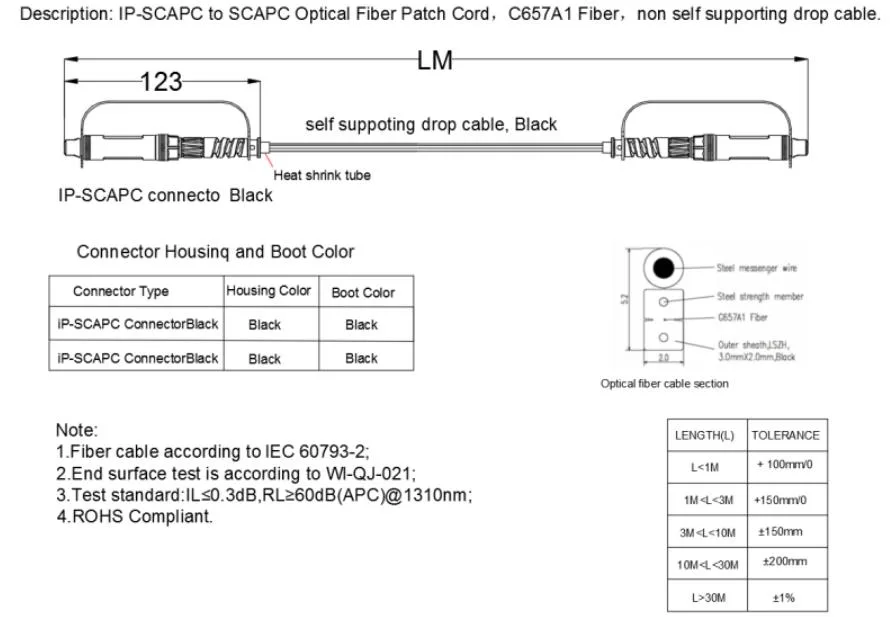

Specification Document

Structure

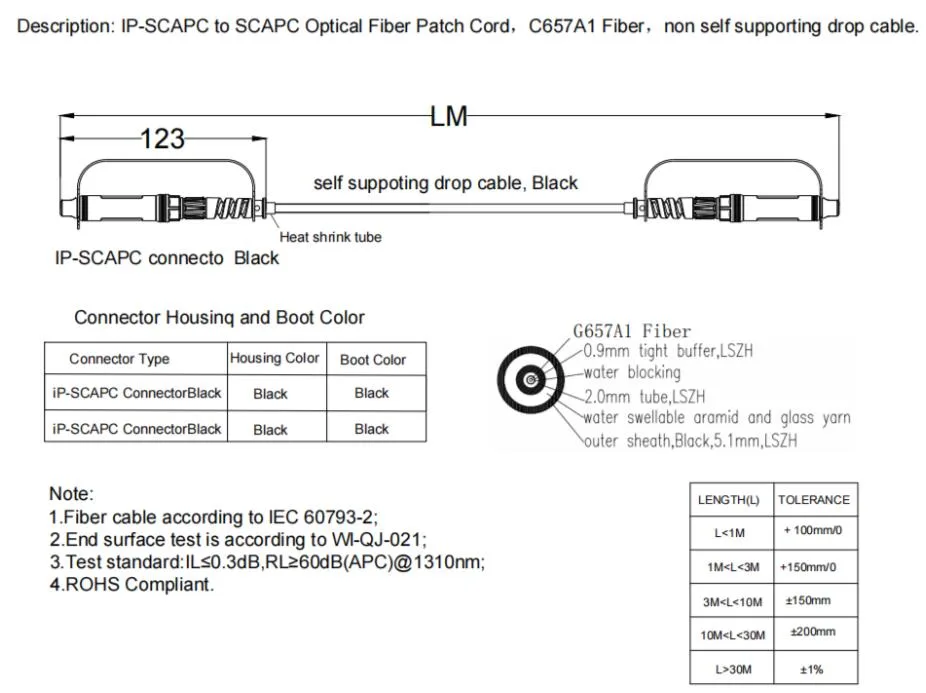

The connector can match 3 types of joints. And the structures of the 3 types of connectorare shown as the following figure:

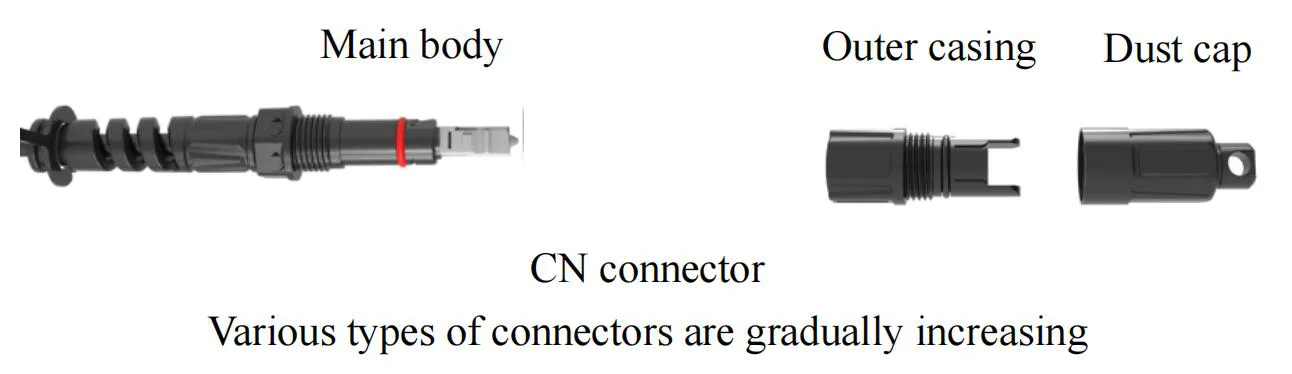

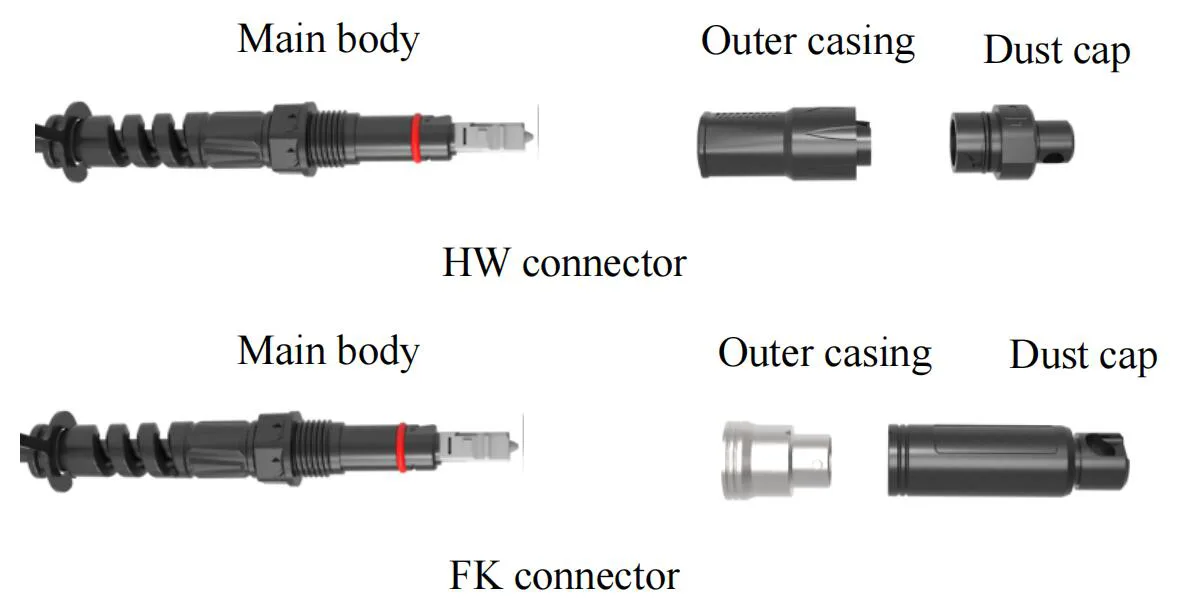

Figure 2 Multiple connector structures

Assembly of Connectors

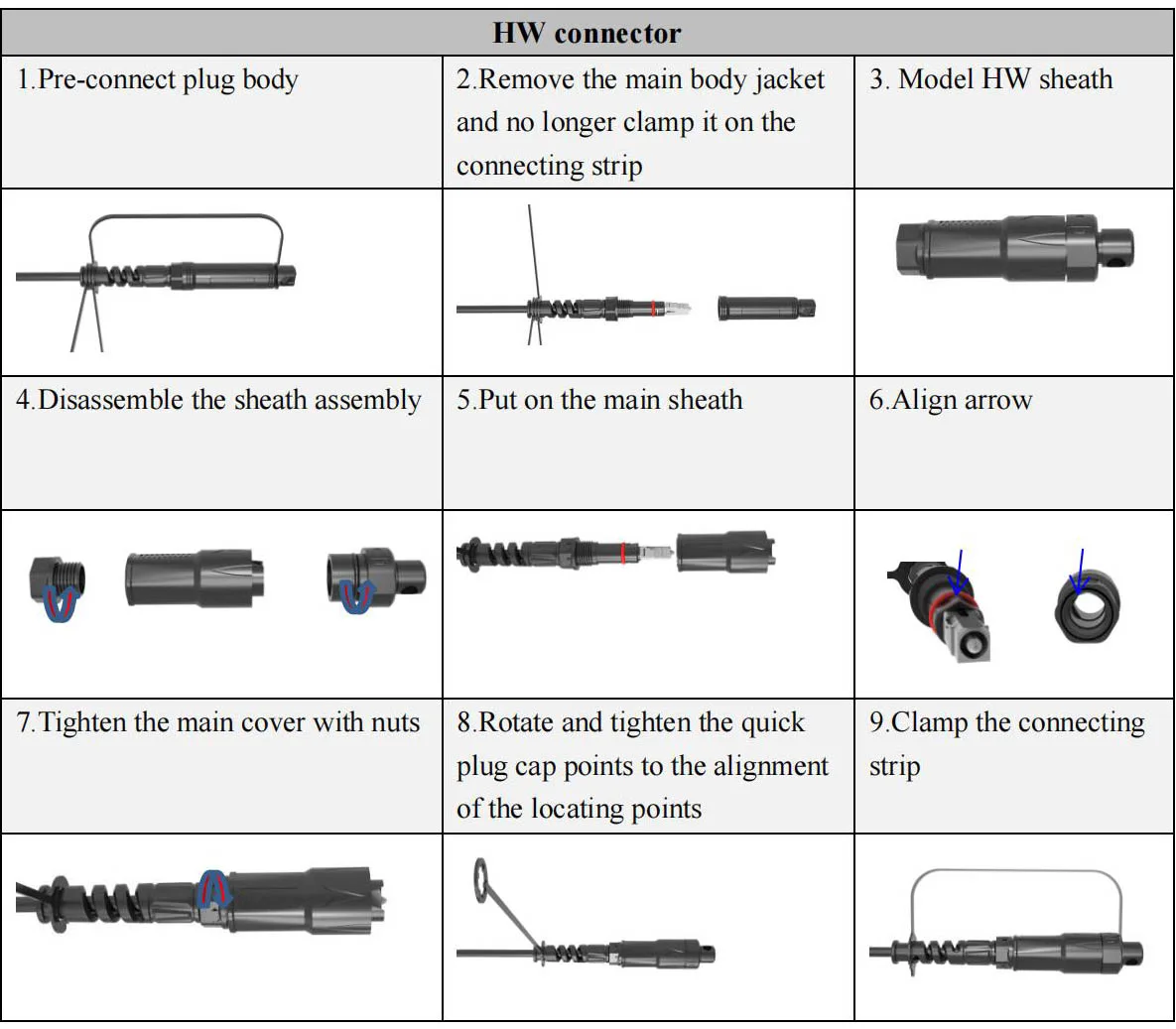

1. HW connector

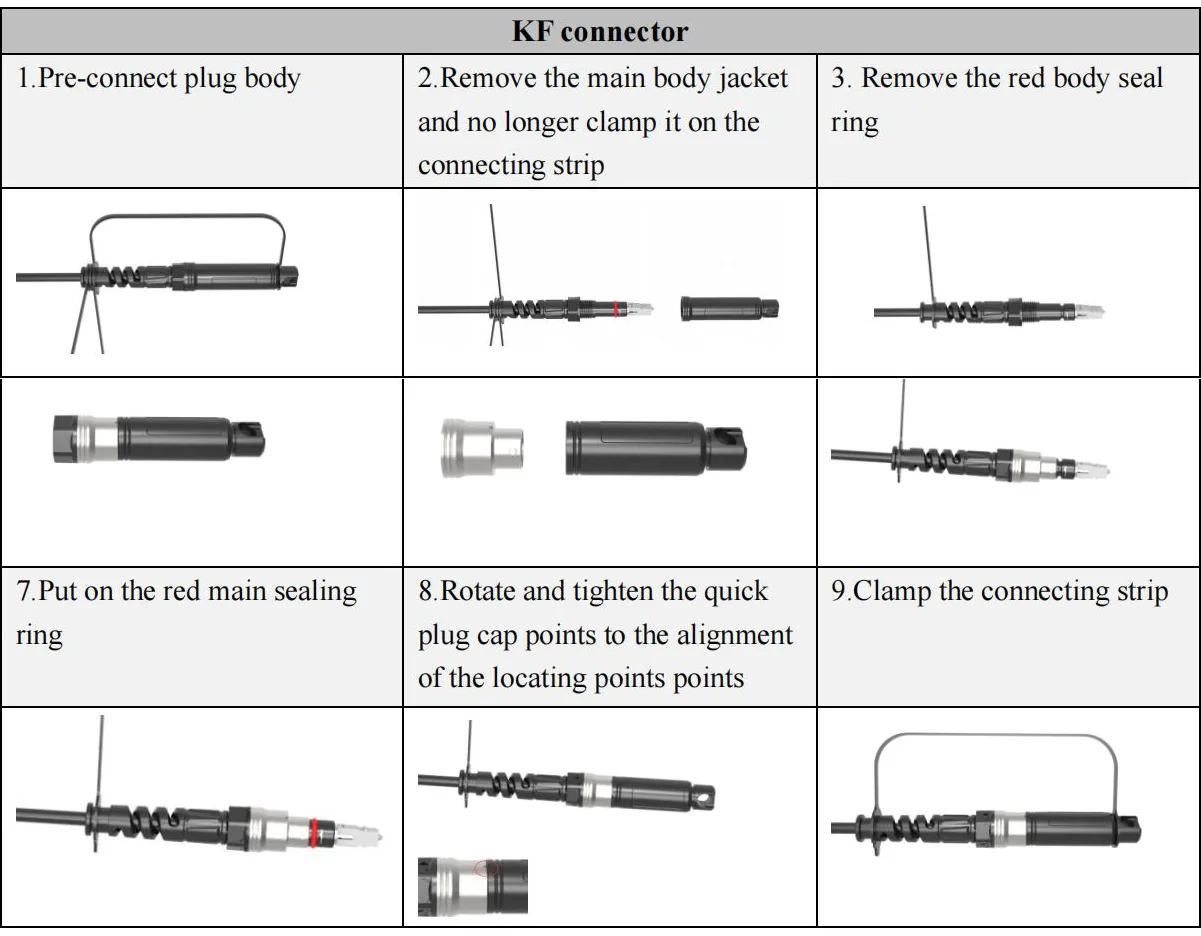

2. KF connector

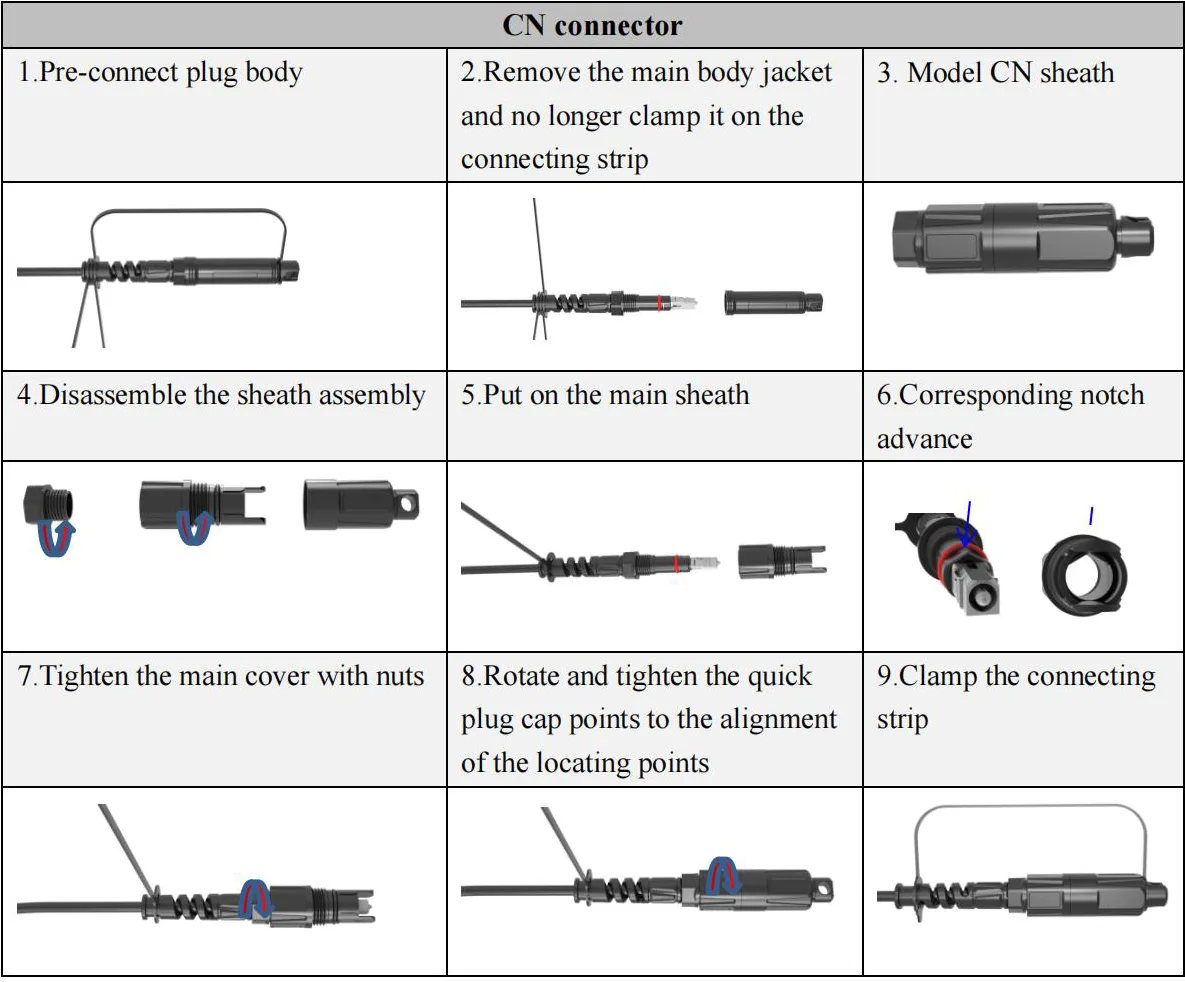

3. CN connector

Connector corresponding matching adapter

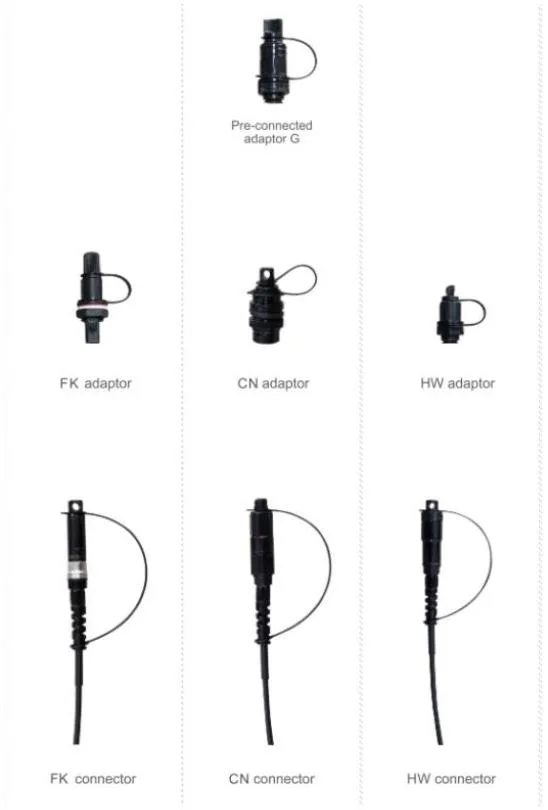

Figure 3 Multiple types of connector matching adapters
