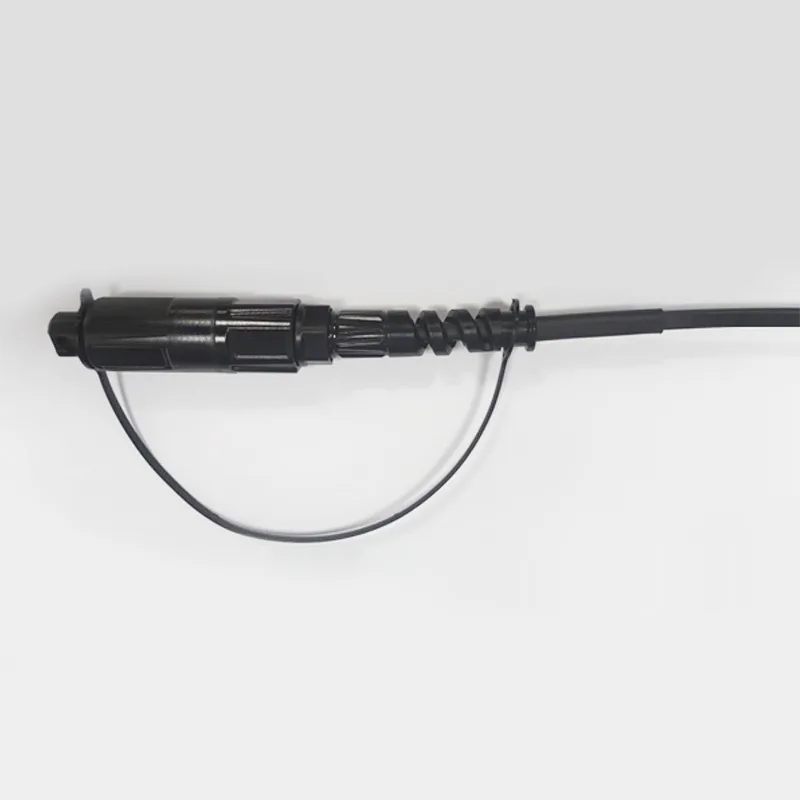

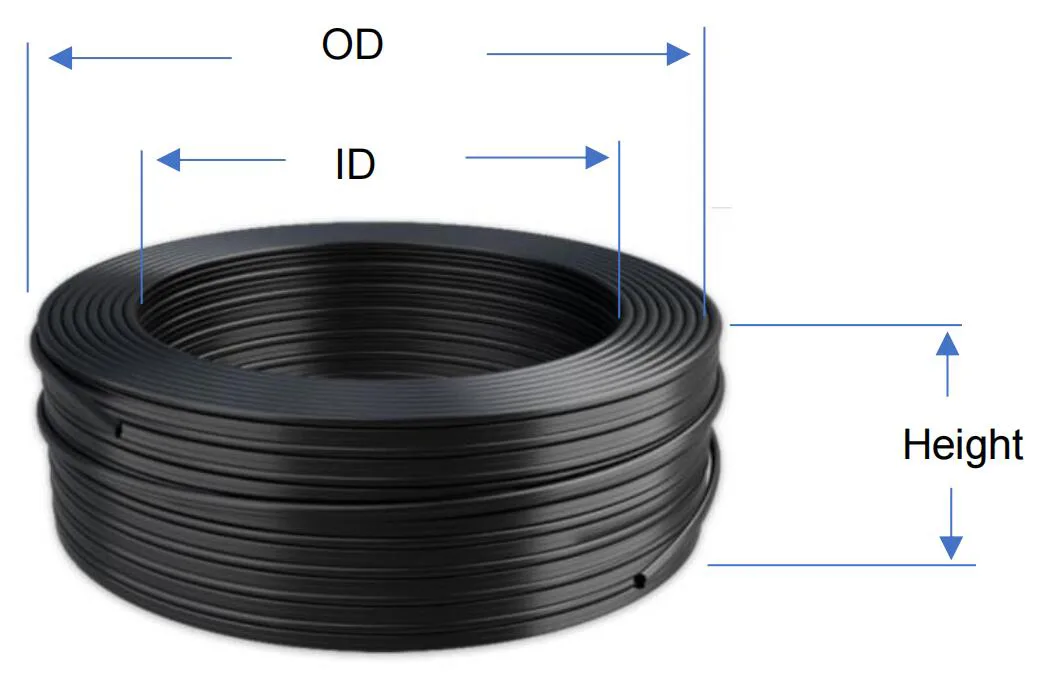

φ5mm Waterproof Fiber Cable OptiTap SC/APC Connector Patch Cord

Orientalfiber is a manufacturer and supplier specializing in φ5mm Waterproof Fiber Cable OptiTap SC/APC Connector Patch Cord, with our own factory. Contact us for competitive pricing and professional quotes.

Send Inquiry

Product Description

Our high quality φ5mm Waterproof Fiber Cable OptiTap SC/APC Connector Patch Cord are all made in China. Orientalfiber is a professional the φ5mm Waterproof Fiber Cable OptiTap SC/APC Connector Patch Cord manufacturer and supplier in China. You can buy them from our factory. For more information, contact us now.

Application:

● FTTX/FTTH Systems

● Ethernet Applications

● CATV Links

● Optical Signal Distribution

● Passive Optical Networks (PON)

● Backbone, Horizontal and riser applications

● Preterminated Drop Terminal Boxes

● Outdoor Areas; Harsh Environment

Features:

● Low insertion loss, high return loss.

● Good in repeatability and exchangeability.

● 100% Insertion, Return Loss, End Face and.

● Interference inspection.

● Excellent mechanical endurance.

● Complying with Telcordia GR-326-Core.

● Ensures high performance and reliability in the management of optical cabling.

● Fast and easy installation and reconfiguration.

● Simple handling, no need for special tool.

● IP68 Waterproof.

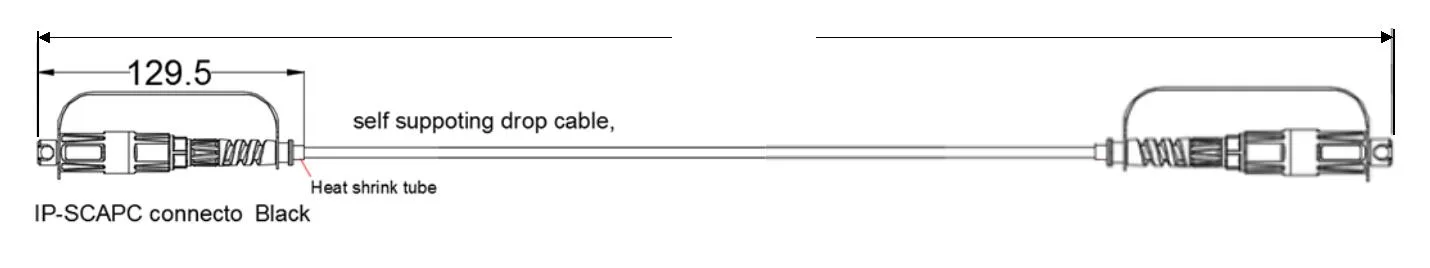

Patch Cord Technical Specification

Constructions	Unit	Descriptions
Fiber Count		Simplex
Wavelength	nm	1310/1550
Insertion Loss	dB	≤0.50 (Typical:0.3)
Return Loss	dB	≥55 (APC)
Cable Jacket Color		Black
Cable Outer Diameter	mm	φ5.0(±0.2)
Fiber Mode		Single mode: G657 A2
Cable Jacket Material		LSZH (UV protection and fire resistance)
Cable weight	kg/km	28（approx）
Printing contents		Customizable
Length	m	50 、100 、150 、200 、250 、300 、400 、500 、600 (Tolerance: ±0.5m)
Connector type		Input: Accord OptiTap SC/APC
Connector type		Output: Accord OptiTap SC/APC
Waterproof Grade		IP68
Tensile Strength	N	200
Operating Temperature	℃	-20 ~ +65

Cable Cross-section

φ5mm Waterproof Fiber Cable OptiTap SC/APC Connector Patch Cord

Cable structure size

Item	Contents	Specifications
Fiber	Number	1
	Type	G.657A2
	Color	BLUE
Microbeam tube	Material	LSZH
	Color	BLUE
	Diameter (mm)	0.9 ± 0.05
INNER SHEATH	Diameter (mm)	2.2±0.05
	Thickness(mm)	0.4±0.05
	Color	Ivory/White/Beige
	Material	LSZH
	Strength member 1	Aramid yarn 1100D*3
Strength member 2	Material	Aramid yarn
Strength member 2	Quantity	1100D*7
Strength member 3	Material	Glued FRP
Strength member 3	Diameter (mm)	0.5*2
Rip cord	Number	1
Rip cord	Color	Red
Sheath	Material	LSZH (UV protection and fire resistance)
	Diameter (mm)	5.0±0.2
	Thickness(mm)	1.1±0.1
	Color	Black
Cable Weight	Kg/km	28±3

Performance of Optical Fiber Cable

All characteristics of the cable fiber (fiber of finished cable) shall be, at least, in accordance with the ITU-T recommendation G.657A2 and shall be as follows.

Item	Specification
Fiber type	Single mode
Fiber material	Doped silica
Attenuation coefficient @ 1310 nm @ 1383nm @ 1490nm @ 1550 nm @ 1625nm After cable formation @ 1310 nm @ 1550 nm	≤ 0.36 dB/km ≤ 0.36 dB/km ≤ 0.25 dB/km ≤ 0.22 dB/km ≤ 0.25 dB/km ≤ 0.36 dB/km ≤ 0.22 dB/km
Cable cut-off wavelength	≤ 1260 nm
Zero-dispersion wavelength	1300 ~ 1324 nm
Zero-dispersion slope	≤ 0.092 ps/(nm2.km)
PMD @ 1550 nm	≤0.1 ps/km1/2
Chromatic dispersion @ 1285 ~ 1330 nm @ 1271 ~ 1360 nm @ 1550 nm @ 1625 nm	≤3 ps/(nm. km) ≤5.3 ps/(nm. km) ≤18.0 ps/(nm. km) ≤22 ps/(nm. km)
Mode field diameter @ 1310 nm	8.5-9.3um
Core / Clad concentricity error	≤ 0.5 um
Cladding diameter	125.0 ± 0.7 um
Cladding non-circularity	≤5%
Primary coating diameter	242 ± 7 um
Concentricity Primary Coating / Coating	≤10 µm
Coating non-circularity	≤0.7%
Attenuation with Cable bending Loss 1 turn 1 Mandrel 7.5mm 10 turns 1 Mandrel 15mm	1550nm ≤ Δ 0.10 dB/km 1550nm ≤ Δ 0.03 dB/km
