1x4 Planar Lightwave Circuit Cassette Splitter package 100x80x10mm,φ2.0 Yellow PVC Cable Length 2.0 +0.1/-0m, 5pcs SC/UPC Connector.
| Parameters | Symbol | Specifications | Unit |
| Channel Number | Ch | 1×4 | |
| Operation Wavelength | 1260 ~ 1650 | nm | |
| Test Wavelength | 1310/1550 | nm | |
| Spectral ratio | 25% | % | |
| Insertion Loss1 | IL | ≤7.2 | dB |
| Uniformity | Uni | ≤0.8 | dB |
| Polarization Dependent Loss | PDL | ≤0.30 | dB |
| Return Loss | RL | ≥50 | dB |
| Directivity2 | Dir | ≥55 | dB |
| Input Optic Power | P | 100 | mW |
| Fiber Type | G657 A2 Fiber | ||
| Pigtail Type | φ2.0 Yellow PVC Cable | ||
| Input Length | 2.0 +0.1/-0 | m | |
| Output Length | 2.0 +0.1/-0 | m | |
| Connector Type | SC/UPC | ||
| Cable Mark | 1x4 PLC: IN、1、2… …3、4 | ||

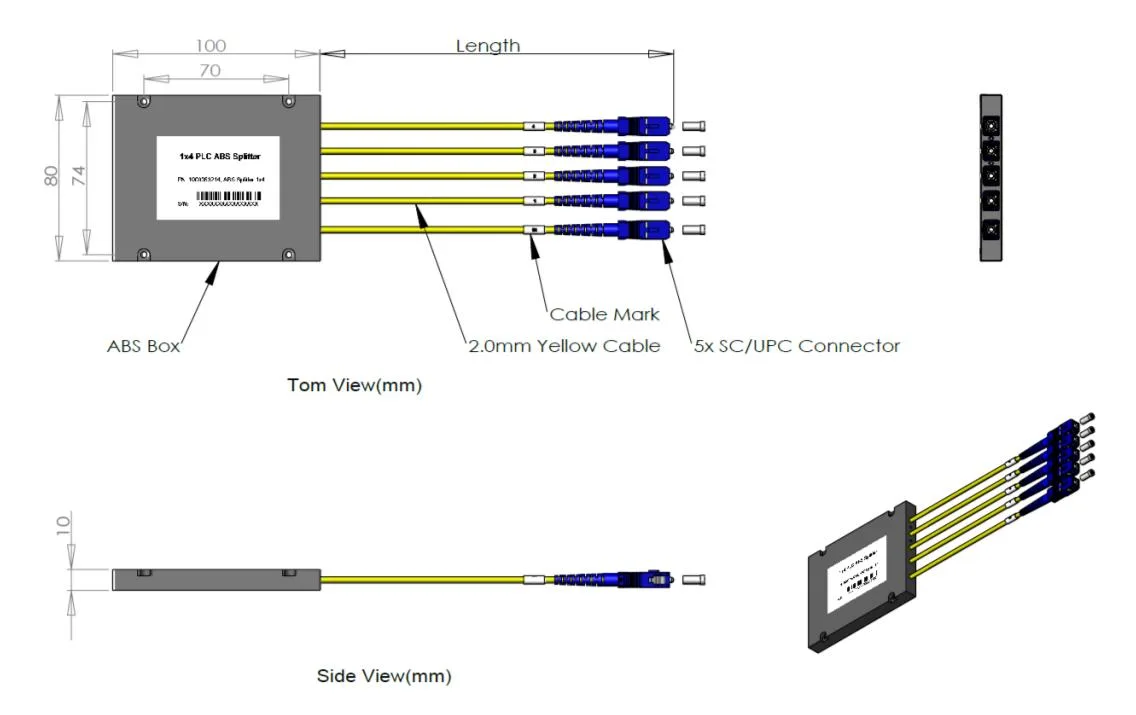

| Package Dimension (L) × (W) × (H) | PKG |
(L) × (W) × (H) 100 × 80 × 10 |
mm |
| Operation Temperature | Top | -10 ~ +70 | ℃ |
| Storage Temperature | Tst | -40 ~ +85 | ℃ |
*Notes: 1. All insertion loss values not include the loss of the connector，include connector loss +0.3dB.
1x4 PLC Cassette Splitter Spec

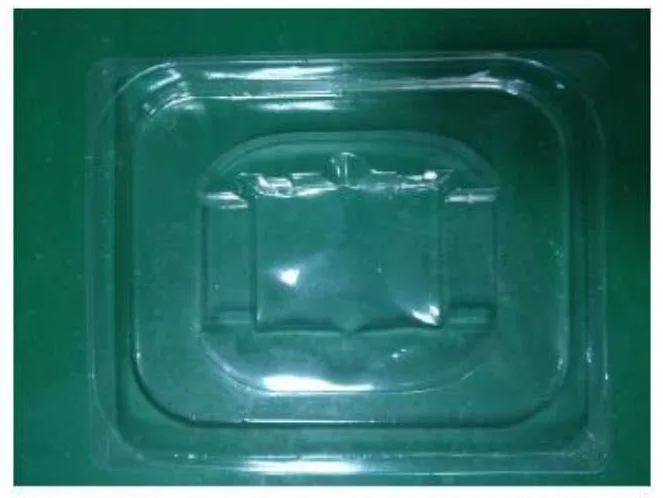

1pc/blister
