Fiber Optic Cable Access Terminal Panel GFS-1F

1. General

1.1 Description

The equipment is used as a termination point for the drop cable to connect with ONU internal of apartment in FTTx communication network system. The fiber splicing can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

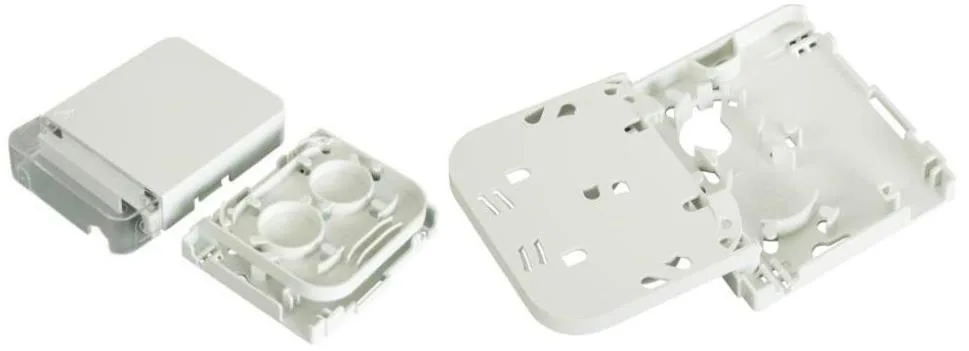

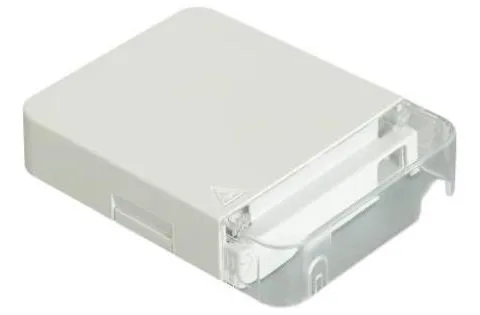

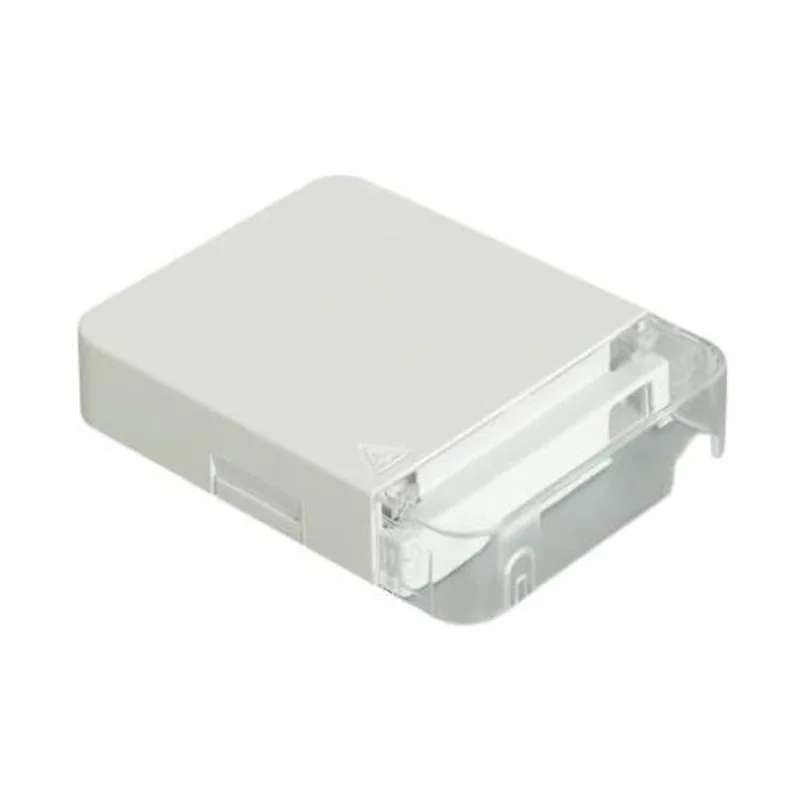

Appearance of GFS-1F

1.2 Standards Comply

The production offered are designed, manufactured and tested according to the standards as follows:

1.3 Applications Environment

2. Characteristics

1. Used for family work area, complete the single or double core fiber’s access and output, can fully meet the requirements of bending radius of the fiber, and protect the optical fiber access, to provide security protection for the core.

2. Easy installation, convenient operation and maintenance.

3. According to customer requirements can be printed LOGO.

4. Made of ABS+PC high quality engineering plastic material with excellent intensity.

5. You can install a SC adapter.

3. Specifications

3.1 Mechanical specifications

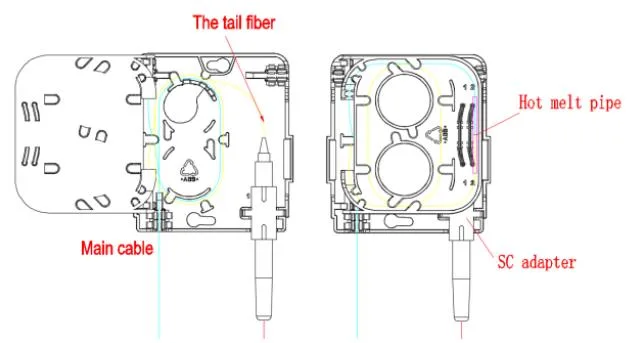

GFS-1F routing map

3.2 Optical specifications

3.3. Wall-mounted installation

Drill 2 holes in the wall according to the dimension in table 2, place the expansion plug Φ6*30, place the box to match up the holes and use screws to fasten.

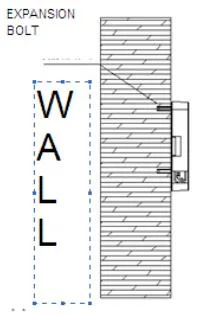

Pic.5 Wall-mounted installation

4. Configuration

4.1 Accessory section

5.Package

Standard Double corrugated carton, 520*360*390mm, 200 in carton, about 19.5Kg.
