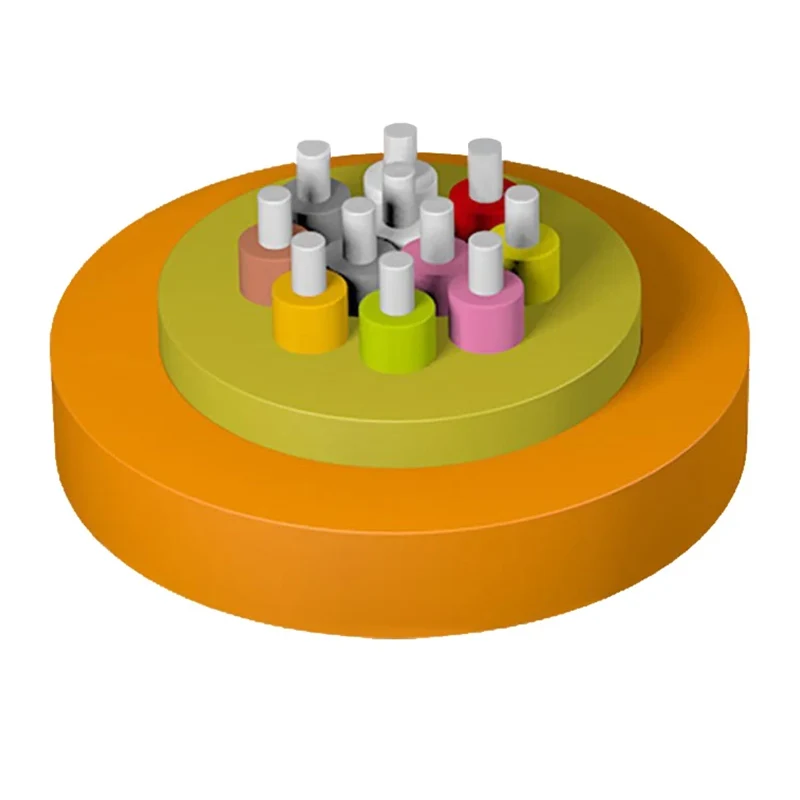

The multi-purpose distribution fiber optic cable (≤24f) uses multiple Φ900μm flame-retardant tight-buffered optical fibers as the optical transmission medium, covered with a layer of aramid as a force-reinforced unit, and extruded with a layer of polyvinyl chloride (PVC) or low-smoke zero-halogen material (LSZH, low-smoke, halogen-free, flame-retardant) sheath.

Multi-purpose distribution fiber optic cable (≥24f) uses multi-core sub-units (Φ900μm tight-buffered optical fiber, aramid reinforcement elements), non-metallic central reinforcement core, the optical cable sub-units are twisted in the central reinforcement core to form a cable core, and a layer of polyvinyl chloride (PVC) or low-smoke zero-halogen material (LSZH, low-smoke, halogen-free, flame-retardant) sheath is extruded on the outside.

MPO multi-fiber push-on fiber optic cable (MPO≤24f) uses multiple colored optical fibers as optical transmission media, covered with a layer of aramid as a stress-reinforced unit, and extruded with a layer of polyvinyl chloride (PVC) or low-smoke zero-halogen material (LSZH, low-smoke, halogen-free, flame-retardant) sheath.

MPO multi-fiber push-on fiber optic cable (MPO≥24f) uses 12 core units (Φ250μm colored optical fiber, aramid reinforcement elements), non-metallic central reinforcement core, the optical cable sub-units are twisted in the central reinforcement core to form a cable core, and a layer of polyvinyl chloride (PVC) or low smoke zero halogen material (LSZH, low smoke, halogen-free, flame retardant) sheath is extruded on the outside.

The bow-type fiber optic drop cable is to place the optical communication unit in the center, place two parallel non-metallic reinforcement components (FRP) or metal reinforcement components on both sides, and finally extrude a black or colored low-smoke halogen-free sheath into a cable.

The self-supporting bow-type fiber optic drop cable is to place the optical communication unit in the center, place two parallel non-metallic reinforcement components (FRP) or metal reinforcement components on both sides, and add a steel wire reinforcement component on the outside. Finally, extrude a black or colored smoke-free halogen-free sheath to form a cable.
